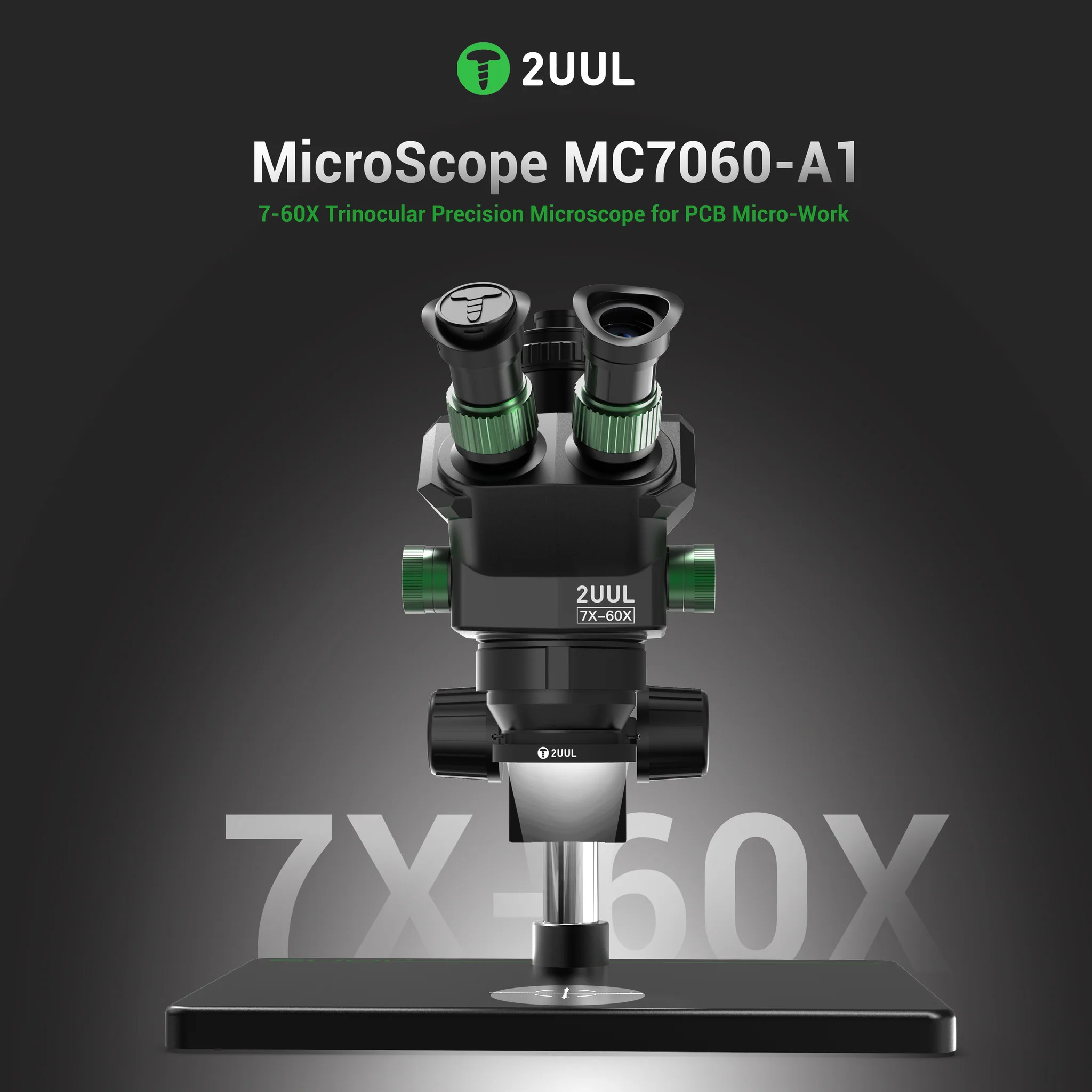

2UUL MC7060-A1 7-60X Trinocular Microscope

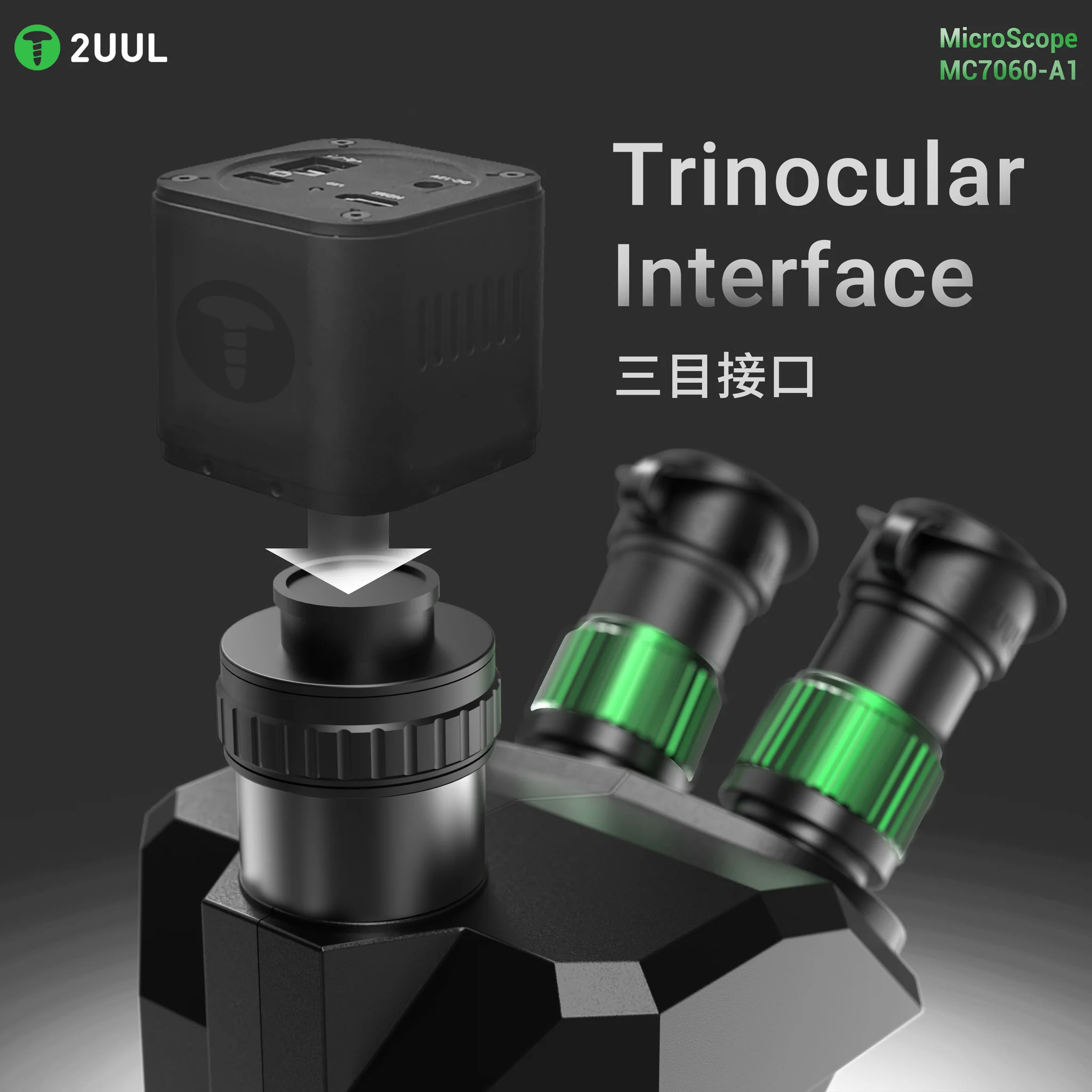

The 2UUL MC7060-A1 is a high-performance trinocular stereo microscope specifically engineered for mobile phone PCB repair, micro-soldering, and industrial inspection. It features a synchronous zoom system, allowing for simultaneous observation through the eyepieces and a connected camera without losing focus or clarity.

Below is the technical product description and comprehensive specification breakdown in a tabular format.

Product Overview: 2UUL MC7060-A1 Trinocular Microscope

Key Technical Attributes

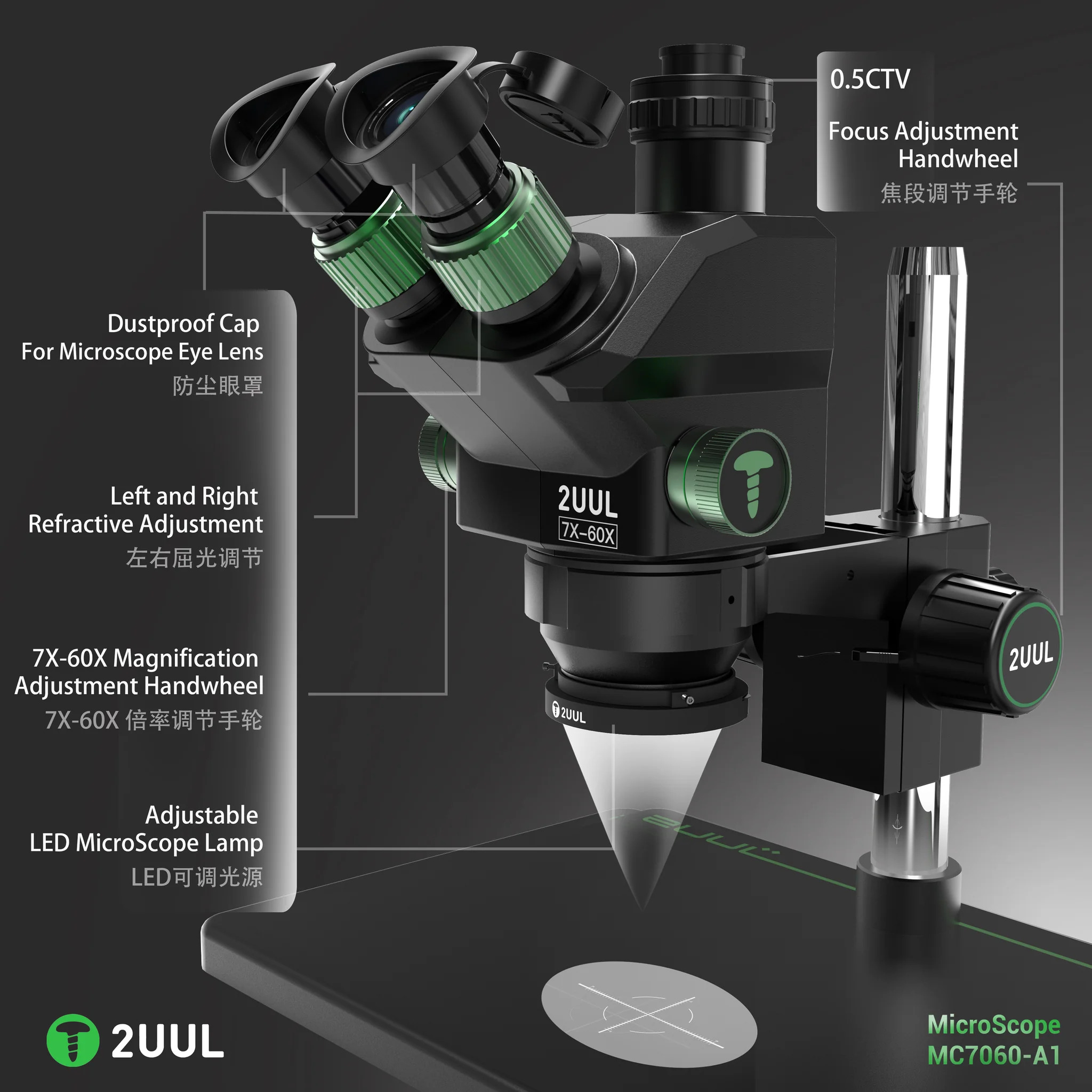

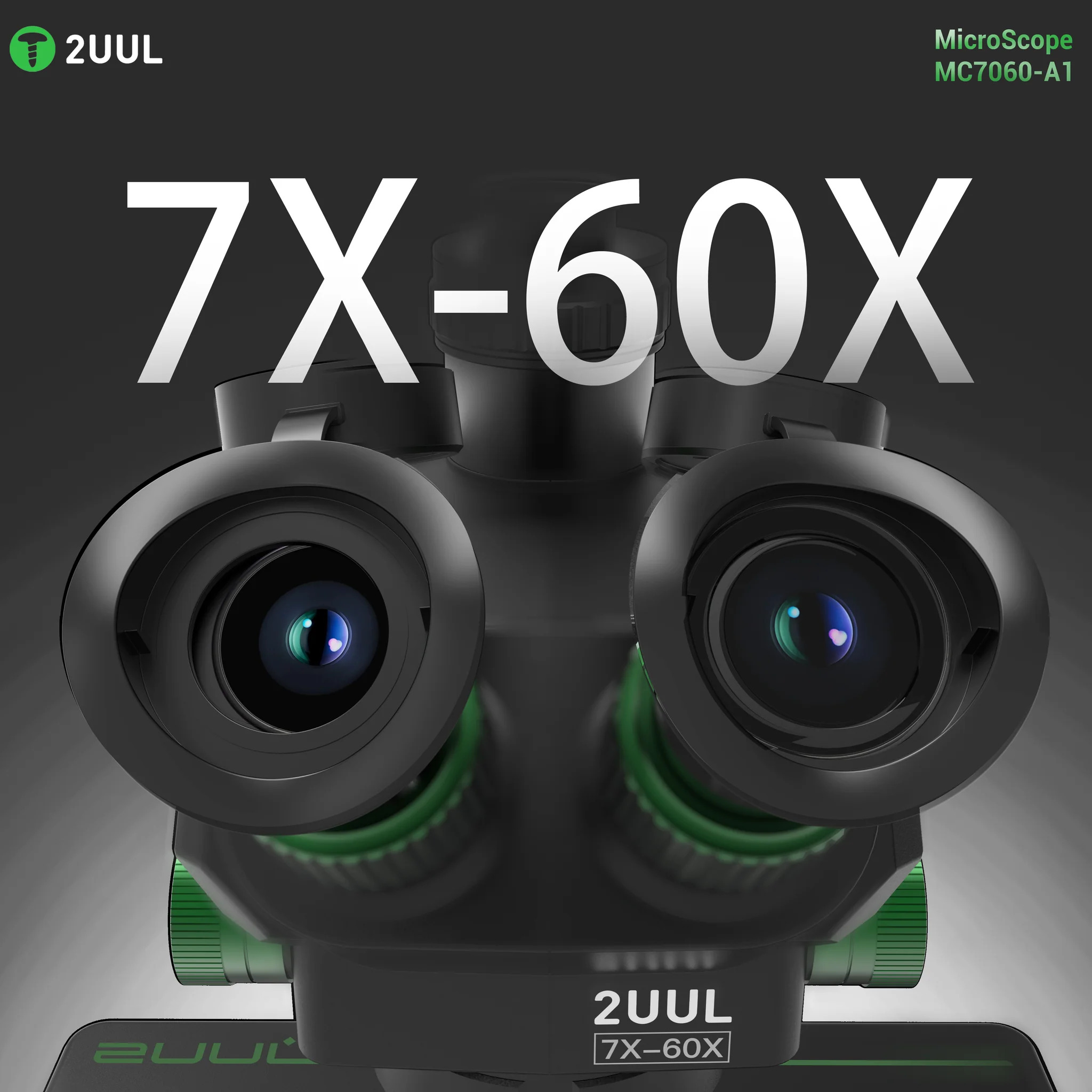

1. Advanced 7-60X Synchronous Zoom

The MC7060-A1 provides a significantly wider magnification range than standard 7-45X models. The Synchronous Zoom feature ensures that when you adjust the magnification, the image remains in focus both in your eyepieces and on your digital monitor simultaneously—eliminating the need for constant refocusing during complex IC reballing.

2. High Eye-Point WF10X/23 Eyepieces

The included 23mm wide-field eyepieces offer a 25% larger field of view compared to standard 20mm eyepieces. The high eye-point design is crucial for technicians who wear glasses, allowing them to see the full field of view without removing their eyewear.

3. Optimized Working Distance

With a native working distance of 100mm, the microscope provides ample space for using soldering irons, hot air rework stations, and tweezers under the lens. This can be further customized using auxiliary Barlow lenses (0.5X or 0.7X) to increase vertical clearance.

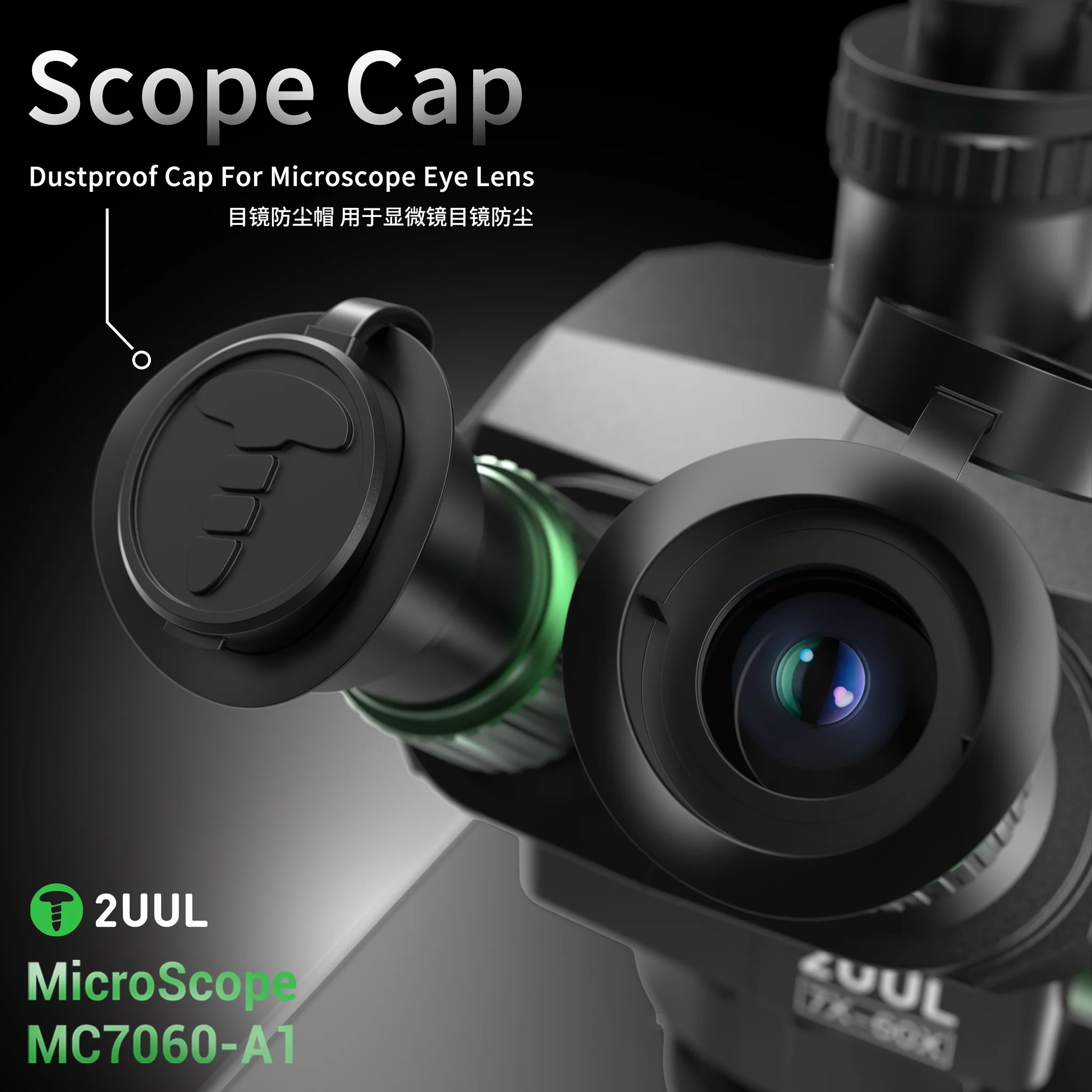

4. Dust-Resistant Engineering

A standout feature of the 2UUL series is the inclusion of protective dust caps for the objective lenses. In a soldering environment, flux fumes and debris can quickly degrade optical clarity; these caps ensure the internal optics remain pristine for years of use.

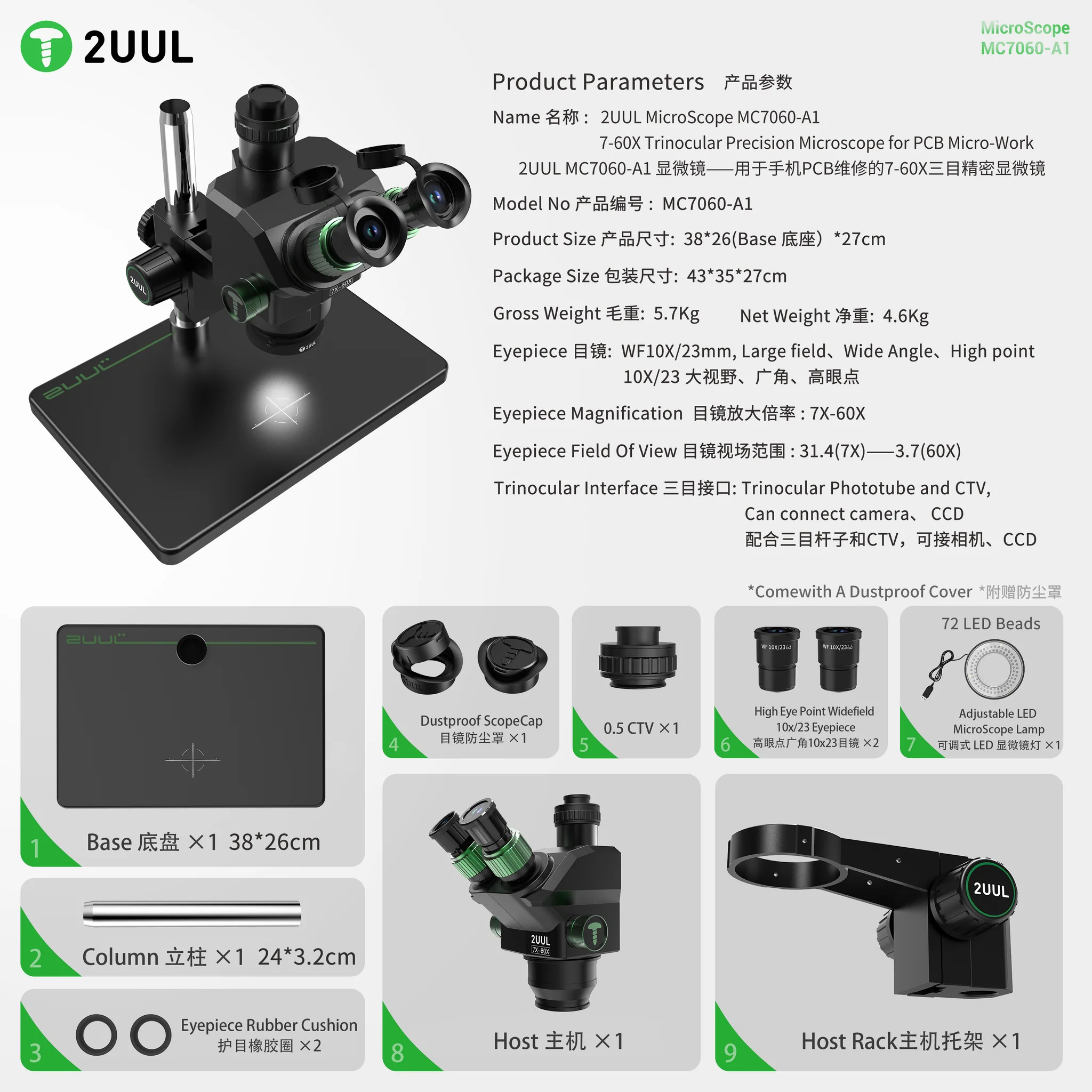

Packing Details :-

• 1 Rod
• 1 B11 Base
• 1 CTV lens
• 1 Ring Light
• 1  Microscope Head
• 1 Extra protective Lance
• 2 Eyepiece Lenses WF/10X/23
• 1 Microscope Dust Protective Cover
• 1 PairMS81 Eye Mask
• 1 Pair Eye Mask
