2UUL MT02 Fine-Tip Multimeter Test Probes

2UUL MT02 Precision Fine-Tip Multimeter Test Probes

The 2UUL MT02 is a professional-grade pair of precision fine-tip multimeter test leads engineered specifically for micro-electronics, component-level smartphone diagnostic repair, and high-density logic board troubleshooting. Designed to reduce the common frustrations of standard blunt multimeter leads sliding off microscopic test points, the MT02 features ultra-sharp nickel-plated needle points coupled with highly flexible, freeze-resistant silicone wiring. It is an indispensable diagnostic companion for hardware technicians handling modern dense BGA circuit layouts, short-circuit tracking, and precise voltage mapping.

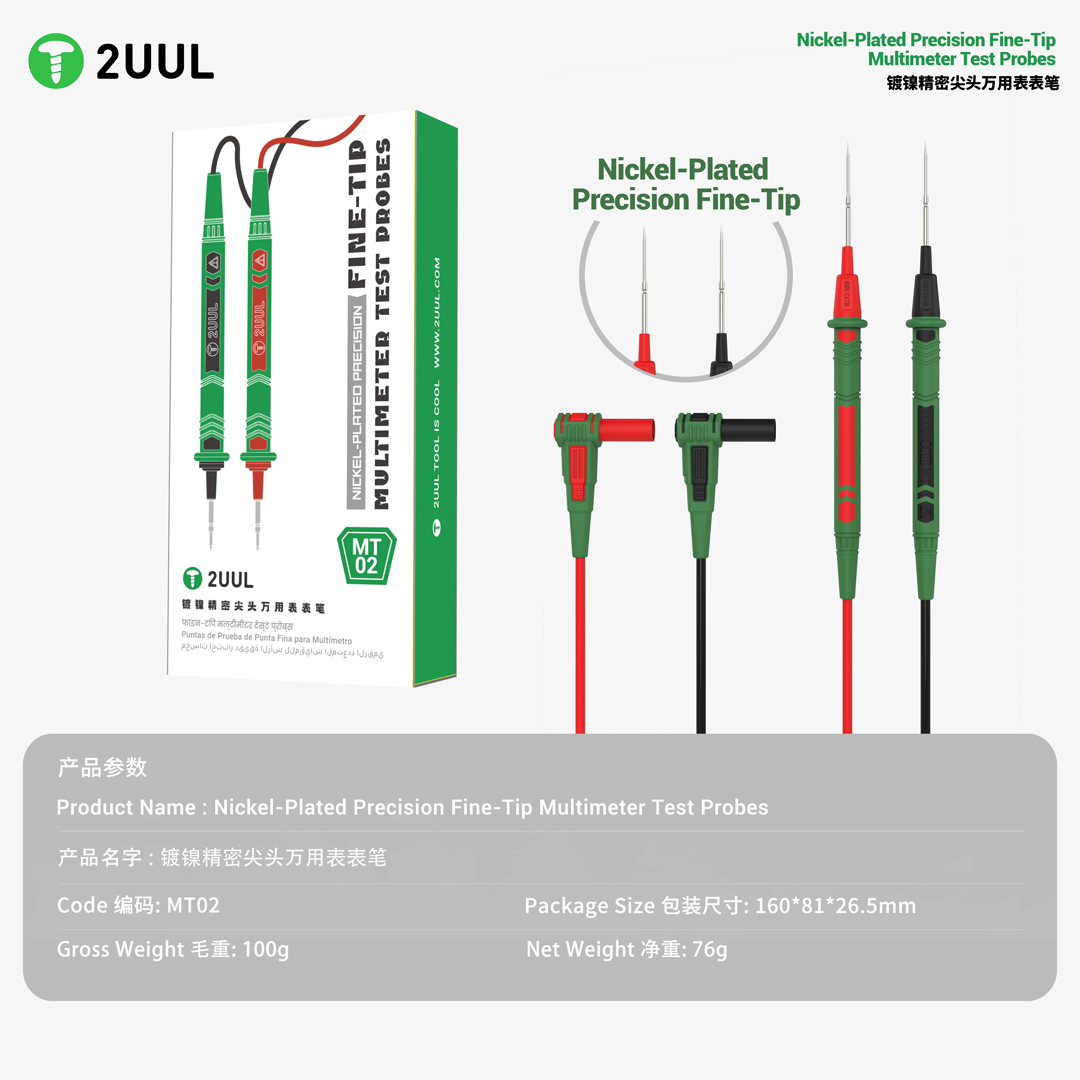

Product Specifications & Technical Overview

Core Structural & Material Innovations

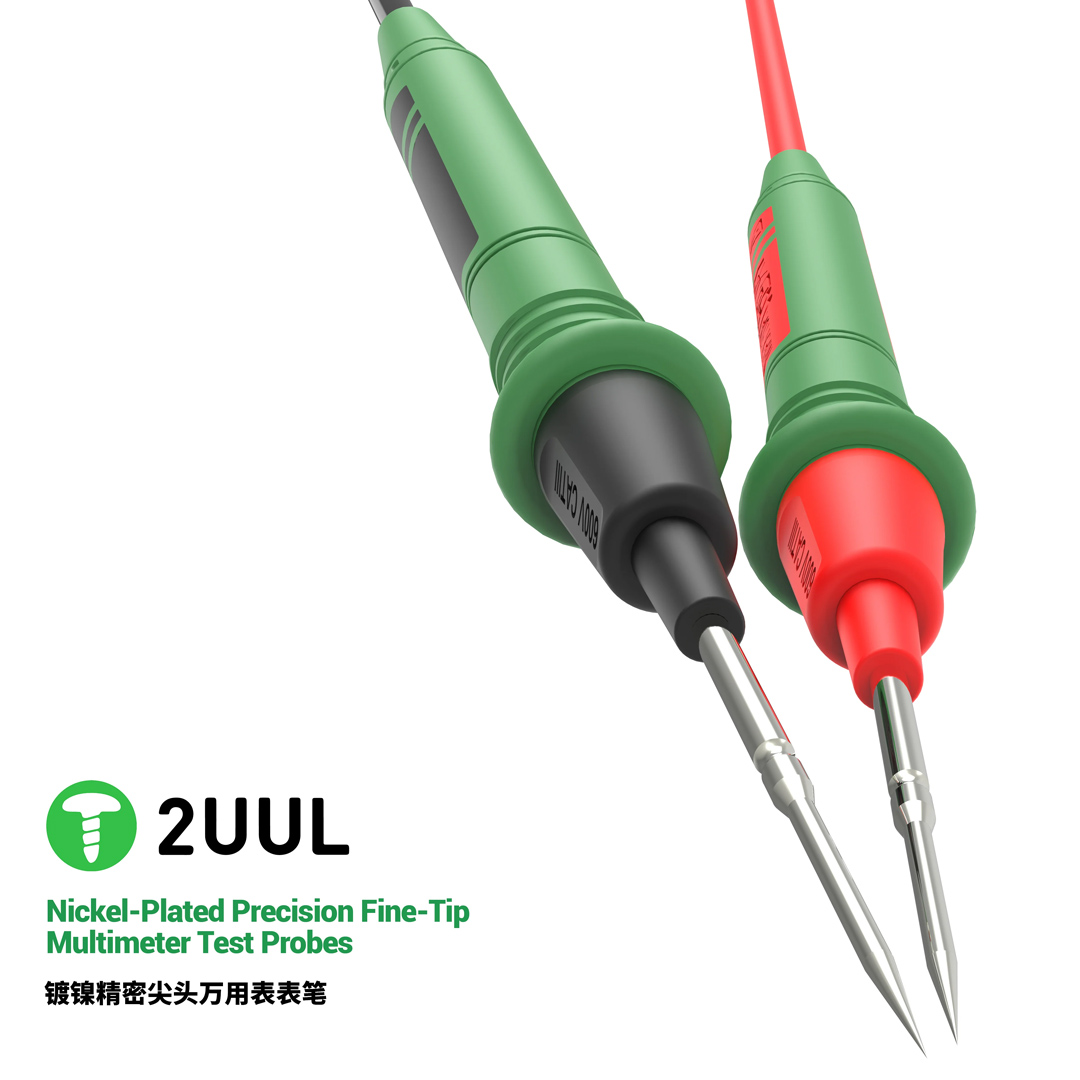

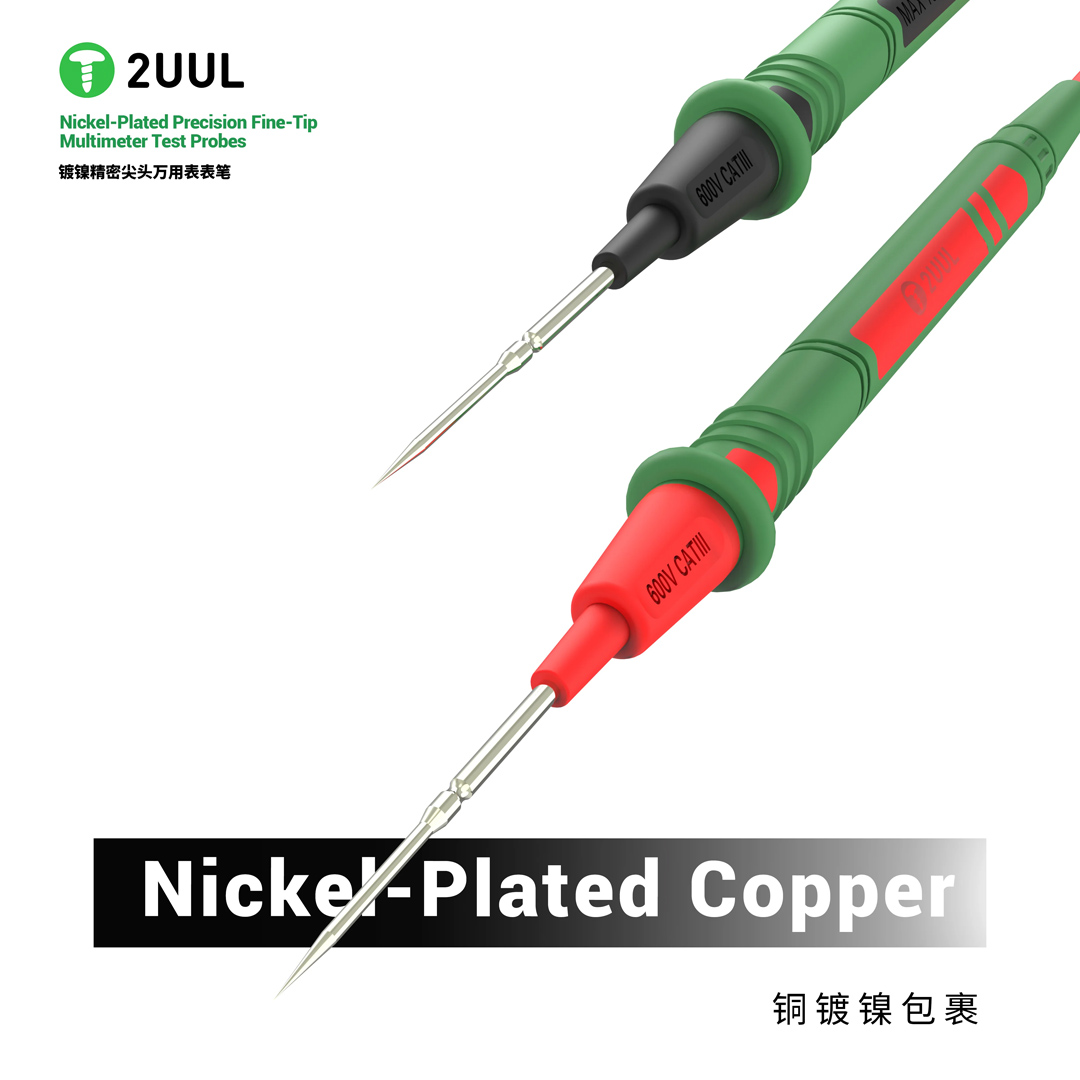

1. Premium Nickel-Plated Needle Geometry

The core advantage of the MT02 probe design lies in its tip structure. Traditional multimeter pens rely on copper or cheap steel alloy tips that tarnish, oxidize, or quickly go blunt. 2UUL implements a precision-hardened needle substrate overlaid with a dense nickel-plating array. This choice optimizes scratch resistance and provides excellent mechanical longevity, allowing technicians to confidently pierce tough conformal coatings or flux residues on a logic board without dulling the point.

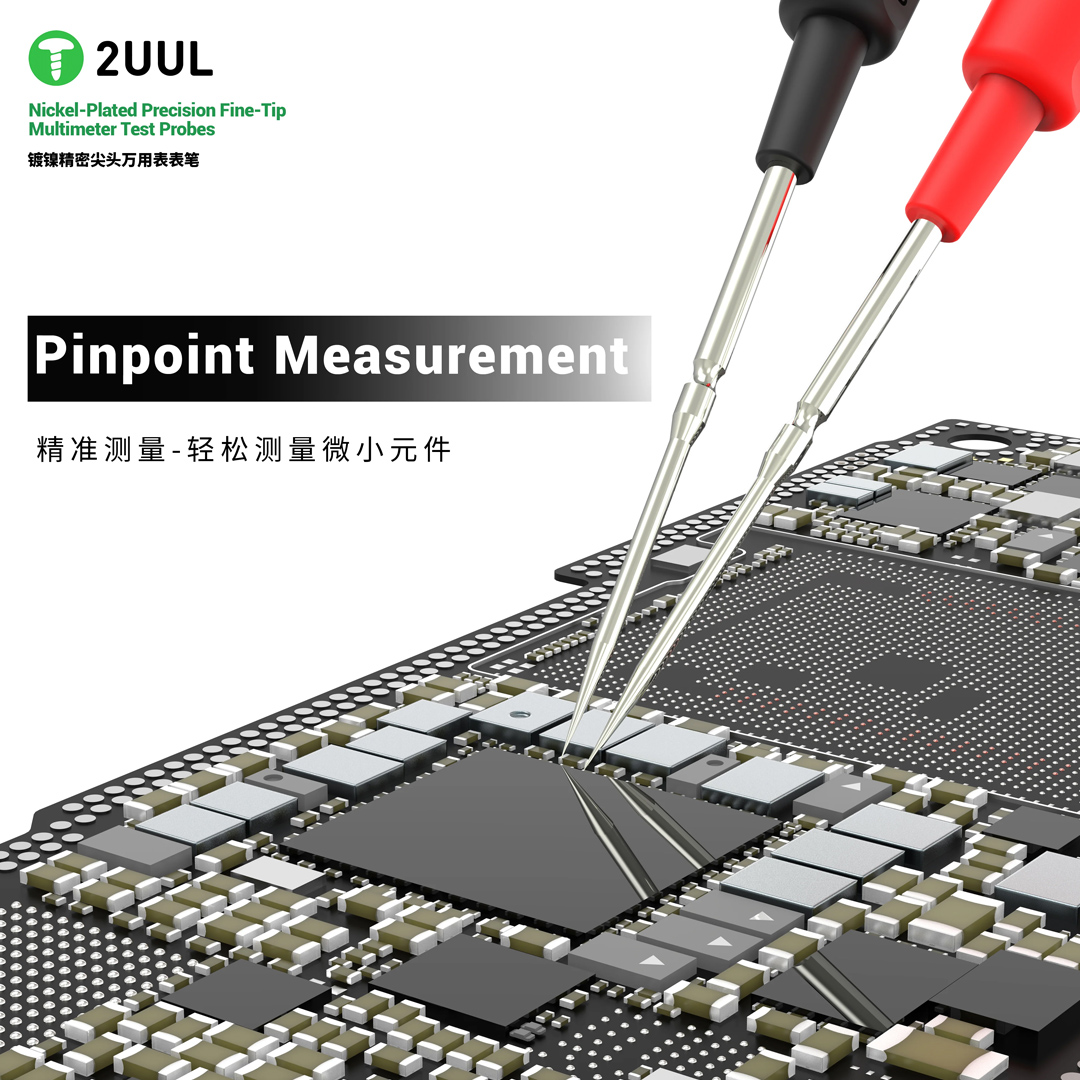

2. Ultra-Fine 0.2mm Landing Footprint

Modern smartphone logic boards utilize surface-mount devices (SMDs) and high-density interconnect (HDI) vias spaced fractions of a millimeter apart. The MT02 boasts an incredibly sharp tip radius capable of making safe, isolated contact with single pins of a microscopic power management IC (PMIC) or a 01005-sized capacitor without accidentally shorting onto adjacent grounded components or shields.

3. Thickened Tinned Copper Core Wire

To ensure consistent resistance readings during critical continuity testing, low-impedance voltage tracking, or diode-mode diagnostics, the cables inside utilize dense, thickened tinned copper filaments. This low-resistance design profile guarantees clean, instantaneous telemetry tracking on your digital display, filtering out erratic fluctuations caused by poor line continuity.

4. Freeze-Resistant Soft Silicone Injection

Standard PVC multimeter cables become rigid, stiff, and prone to structural cracking in colder climates or environments with high air conditioning. The MT02 features an injection-molded, double-insulated soft silicone sheath. The cable line remains completely fluid, tangle-free, and flexible throughout a massive temperature range, preventing bench clutter from springy cord memory.

Key Applications & Workflows

The design optimization of the 2UUL MT02 directly satisfies the rigorous requirements of several board-level diagnosis workflows:

• Diode Mode Mapping: Essential for tracking line-by-line forward voltage drops on structural interface lines (such as display FPC connectors or charging ports) to spot missing components or short-circuit traces.

• Voltage Rail Troubleshooting: Enables safe, micro-point probing on active, live logic boards during boot-up loops to isolate missing secondary voltage outputs from power management circuits.

• Piercing Solder Mask: The rigid needle design lets technicians poke directly through thin layers of UV solder mask insulation or oxidation skin without breaking the tip, facilitating direct copper trace validation.

System Compatibility & Safe Operating Guidelines

The MT02 includes universal standard shrouded 4mm right-angle banana jacks, rendering it natively compatible with almost every professional benchtop digital multimeter on the market today—including the matching 2UUL MT30 smart auto-reset meter, alongside flagship Fluke, Sanwa, Mechanic, and Sunshine diagnostic units.
