AMAOE POW-1 16IN1 TYPE-C+USB+DC+WIRELESS MULTI-PORT POWER SUPPLY

AMAOE POW-1 "GiVEn" 16-in-1 Multifunctional Power Station

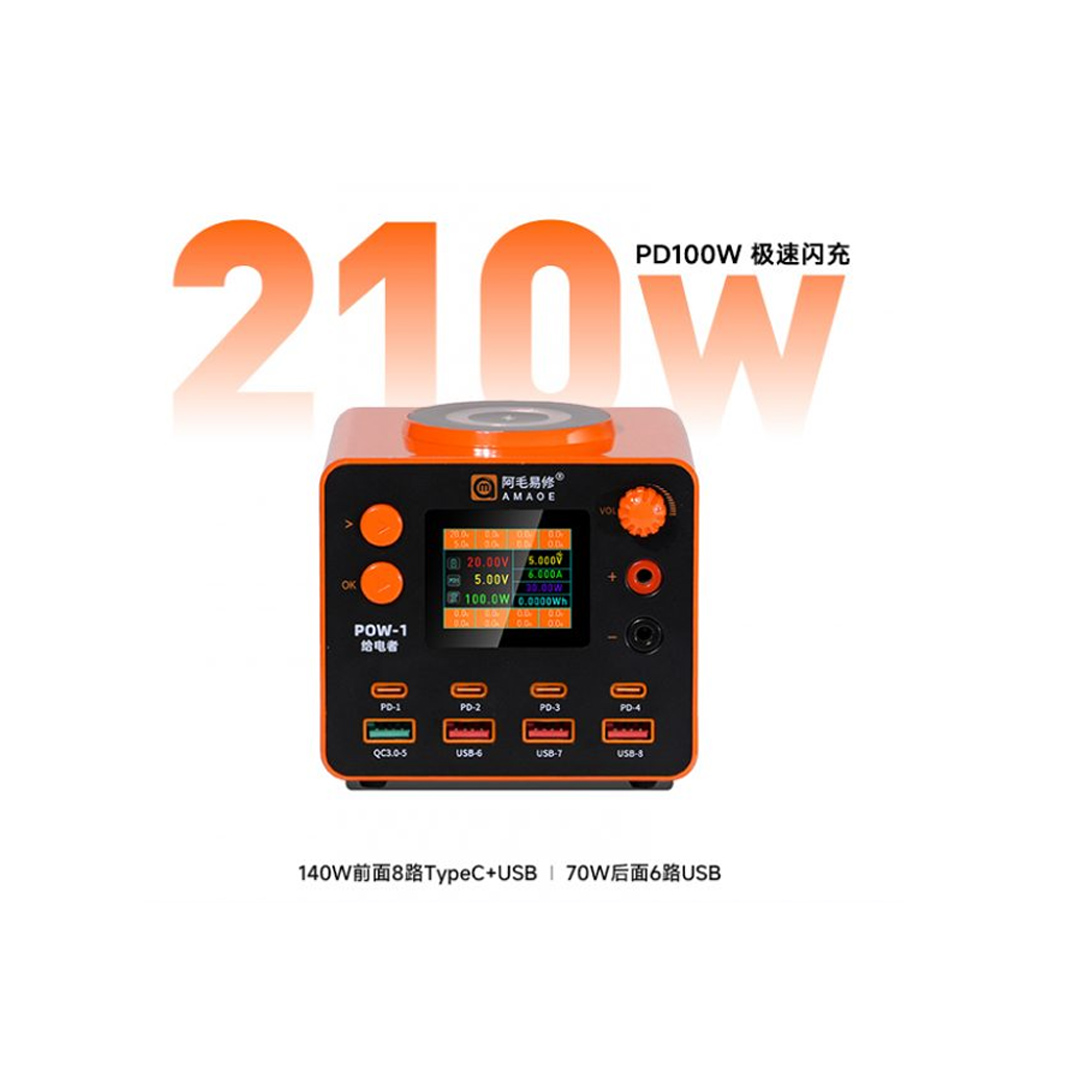

The AMAOE POW-1 is a professional-grade, high-power desktop workstation charging system and integrated DC regulated power supply. Engineered specifically for micro-soldering, mobile diagnostics, smartphone/laptop repair shops, and advanced hardware laboratories, this device consolidates a massive 210W of total output capability across a 16-in-1 multi-port distribution matrix.

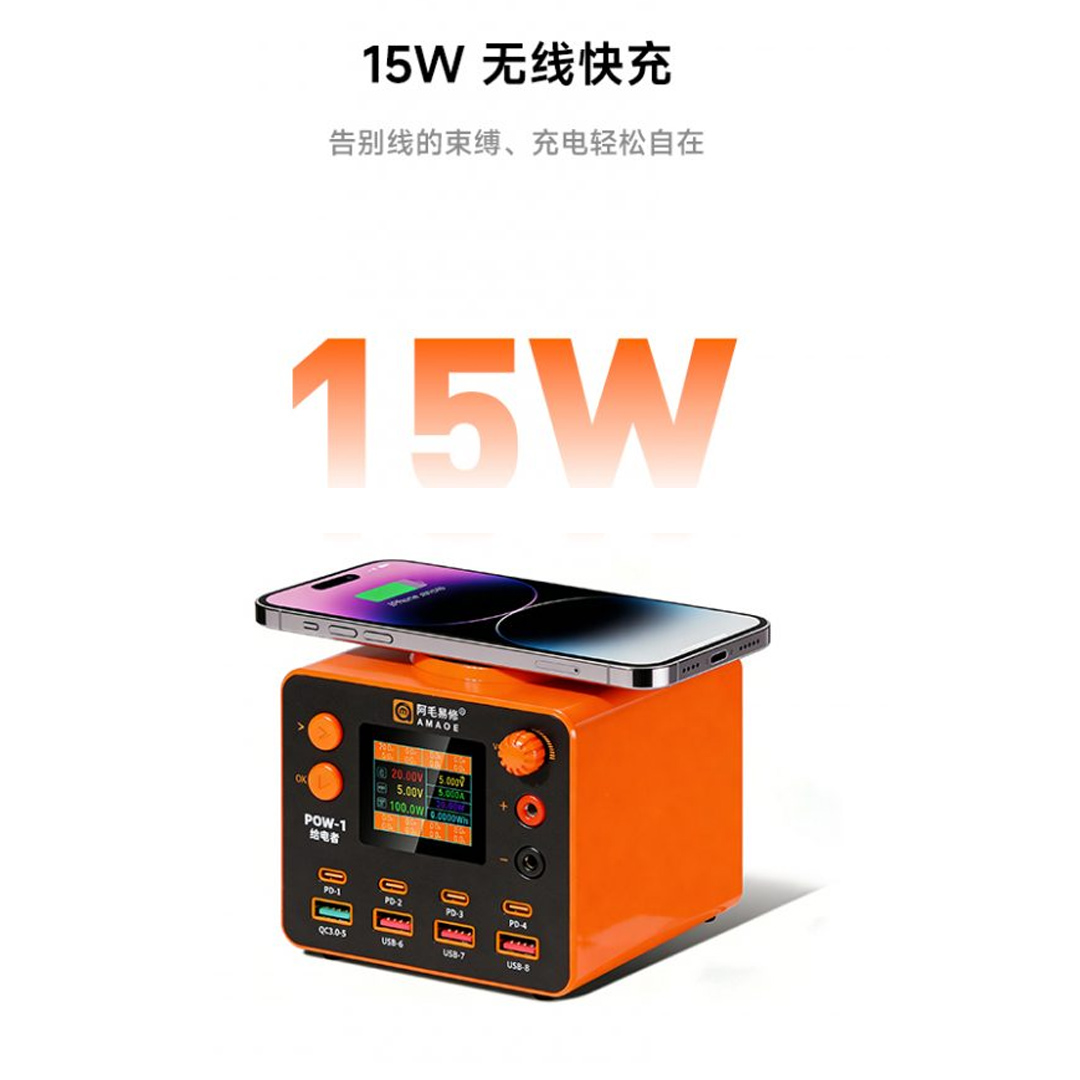

By unifying extreme-wattage Power Delivery (PD) channels, Multi-Protocol Flash Charging, wireless induction, a full array of back-end charging banks, and a variable benchtop DC power supply with a real-time smart monitoring color interface, the POW-1 completely streamlines workstation clutter while serving as a diagnostic "burn-in" and booting engine for complex device troubleshooting.

Technical Specifications & System Overview

Advanced Multi-Port Output Matrix (16-in-1 Layout)

Core Engineering & Functional Breakdown

1. Integrated Dual-Mode DC Regulated Power Supply

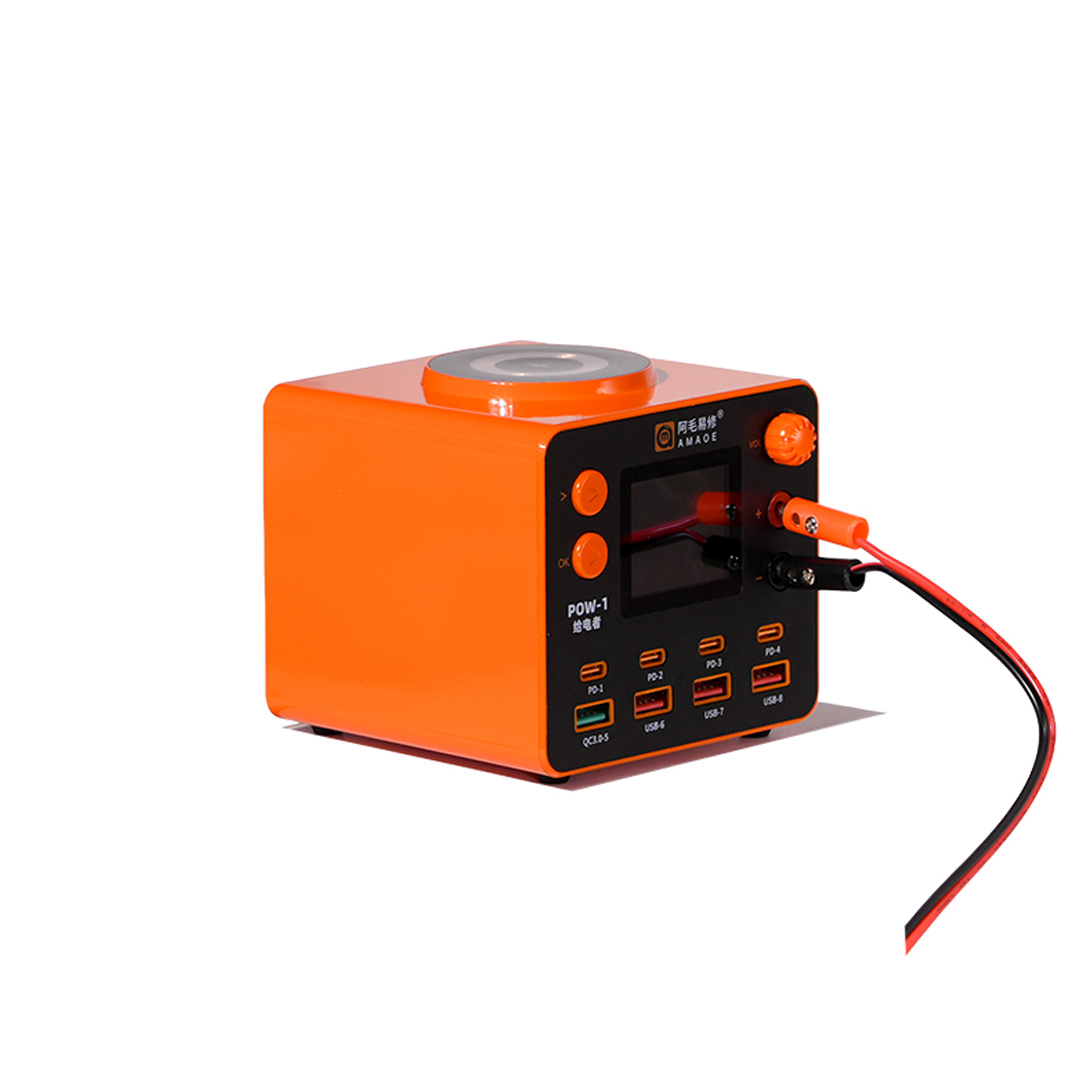

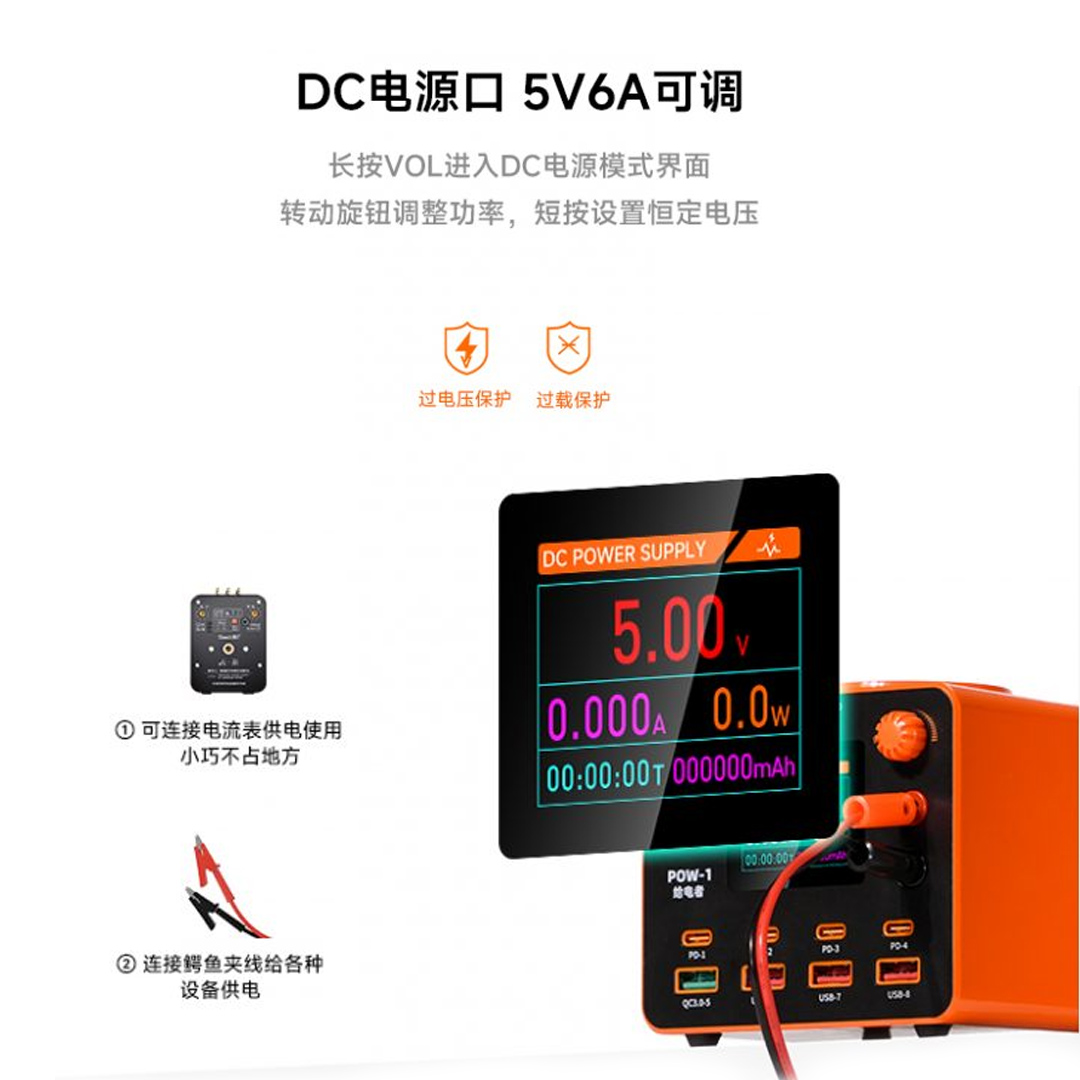

By holding down the front-facing VOL interface button, the machine switches from a classic multi-port charger into a precision benchtop DC power terminal. Technicians can rotate the physical dial to fine-tune voltages for hardware injection:

• Voltage > 3V Conditions: System handles a sustained 6A Load limit. Crossing this current threshold triggers an instant automated over-current protection engine to safeguard fine copper traces on a device's motherboard.

• Voltage < 3V Conditions: System throttles to a safe 4A Load limit maximum to prevent unintended thermal melting of trace layers during low-voltage high-current short-circuit mapping (fault burning).

2. High-Definition Real-Time Telemetry Color Interface

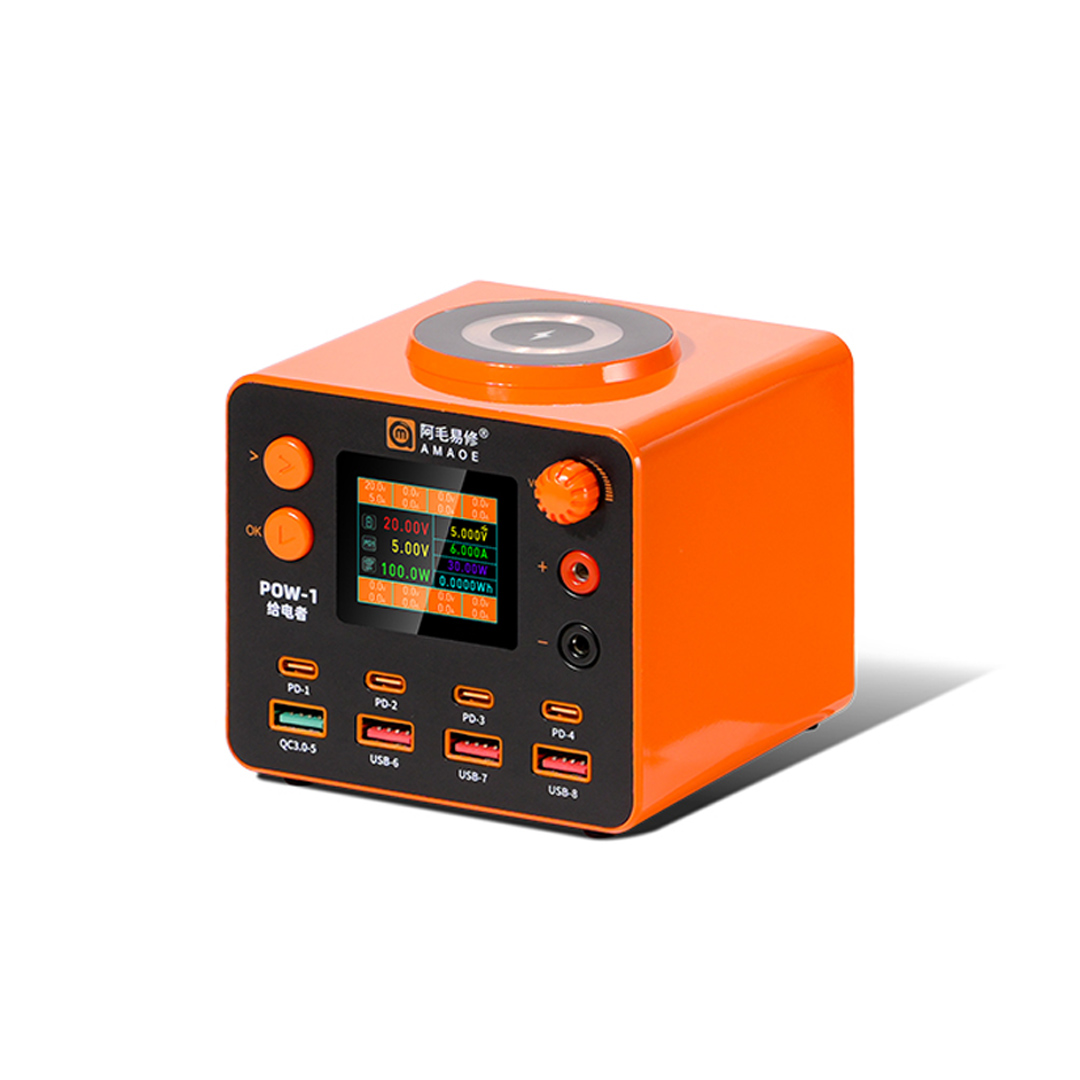

Unlike standard basic power hubs that only display aggregate statistics, the AMAOE POW-1 features a clean graphical LCD display matrix. Every front-facing high-speed port gets a dedicated system block displaying live, isolated readouts of:

• Operating Voltage (V)

• Instantaneous Amperage Draw (A)

• Total Real-Time Power Consumption (W)

  This allows a technician to look up the exact booting power curve signatures of an iPhone or Android motherboard to isolate whether an issue is caused by a broken PMIC, bad CPU stack, or corrupt storage lines without needing an inline USB tester.

3. Smart Power Distribution & Automatic Fallback Trips

The unit's internal microcontroller constantly calculates active load profiles. If a technician bridges too many high-draw devices across the primary front hub and breaches the 140W Front Protection Limit, the machine activates an automatic latching over-current shutdown. To reset the safety logic board, simply remove the overloaded devices, disconnect the main power input cable, allow the internal capacitors to drain for 5 to 10 minutes, and re-engage.

4. Variable Active Thermal Core

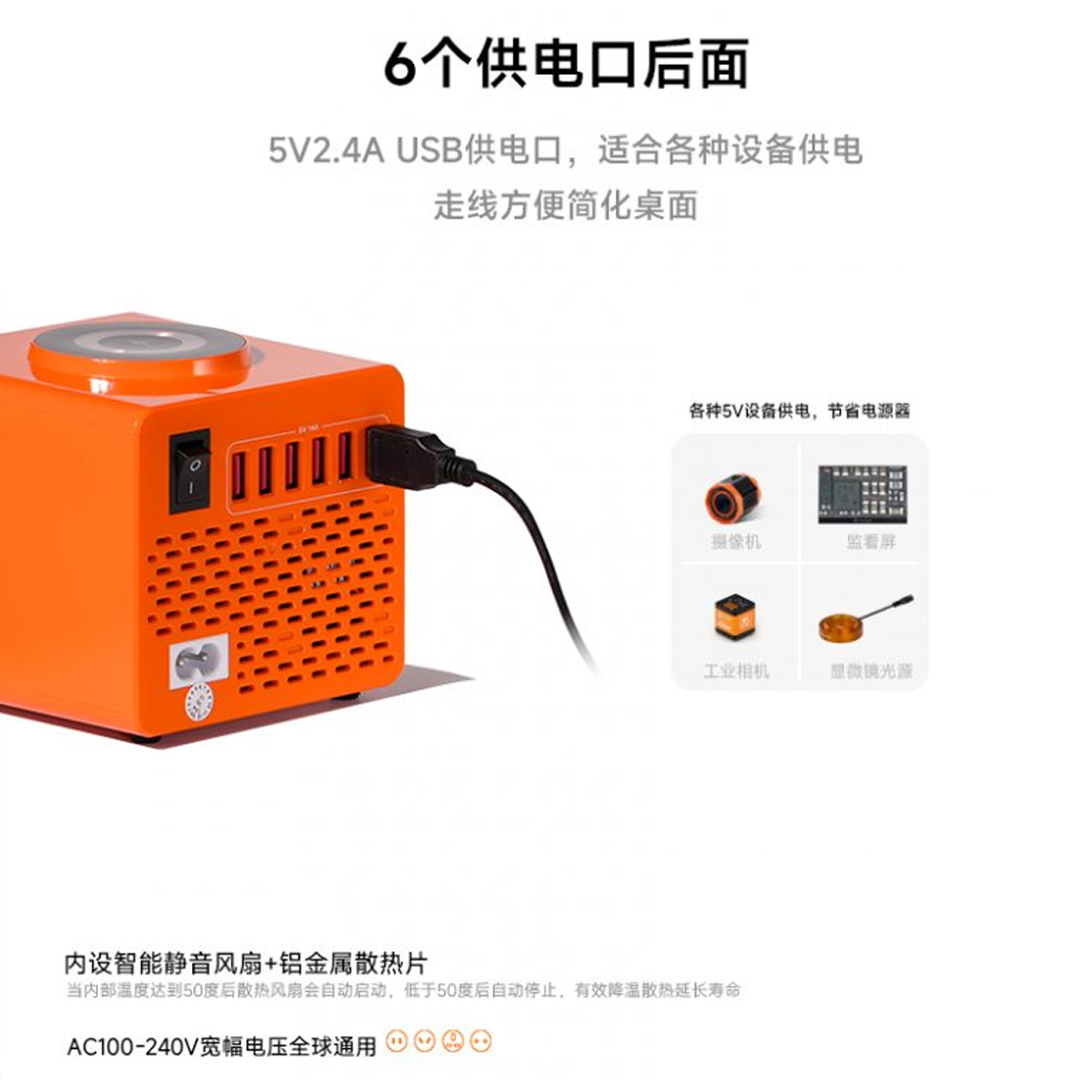

To ensure stable linear power delivery during intense multi-channel device testing, the POW-1 incorporates a high-surface-area aluminum heatsink coupled with an intelligent silent intake fan.
