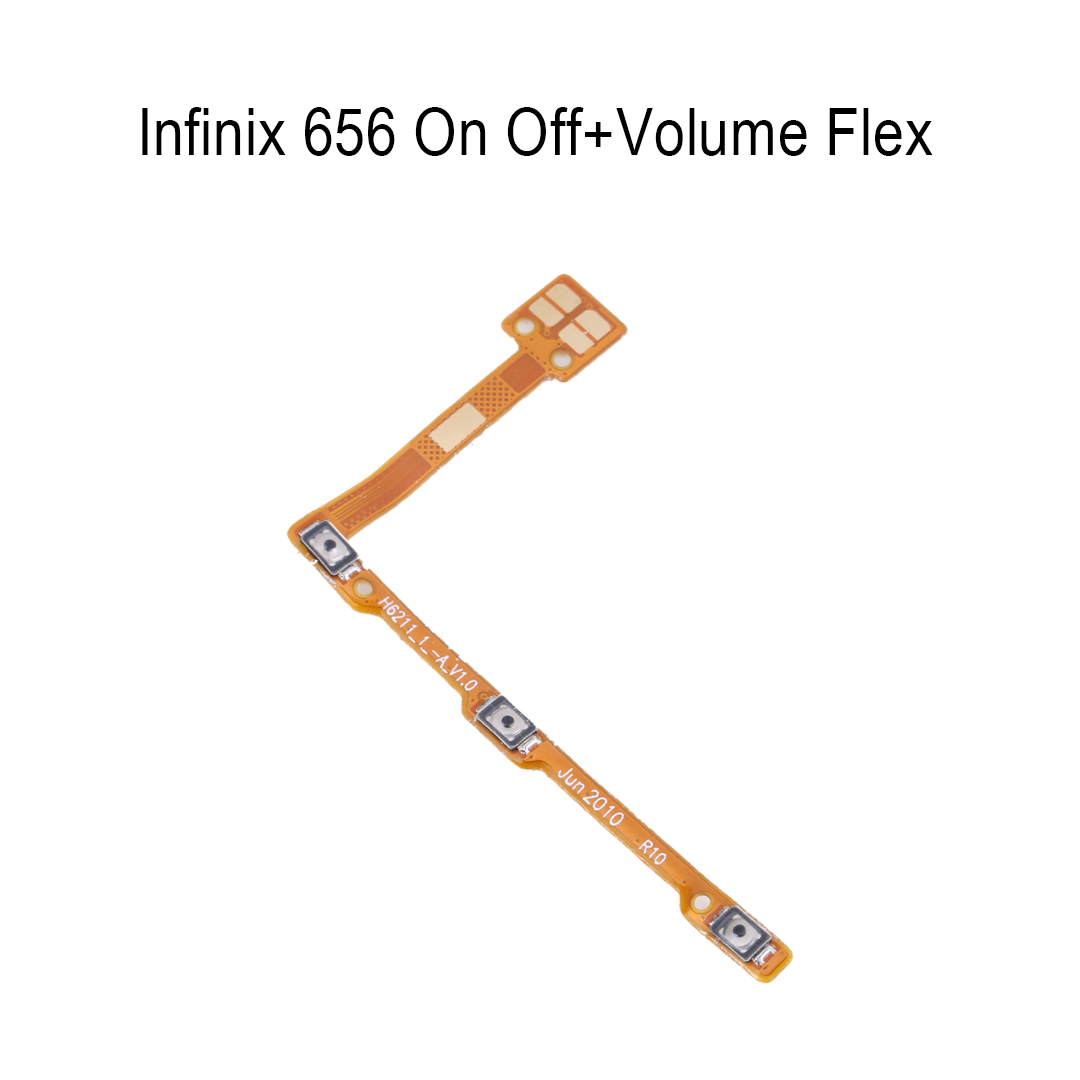

Infinix 656 On Off+Volume Flex
The Infinix 656 On Off+Volume Flex Power and Volume Flex Cable is a critical internal component responsible for managing the device's physical hardware interactions. This high-precision ribbon cable connects the side tactile buttons to the motherboard, enabling core functions such as powering the device on/off, waking the screen, and controlling audio levels.
Below is the comprehensive technical and commercial product documentation.
1. Product Overview & Core Specifications
| Feature | Technical Specification |
| Product Name | Infinix 656 On-Off + Volume Flex Cable |
| Compatible Model | Infinix Note 7 Lite (Model: X656) |
| Component Type | Internal Ribbon / Flex Connector |
| Functionality | Power Switch + Volume Up/Down Control |
| Material | High-grade Polyimide (Kapton) with Gold-plated contacts |
| Connector Type | ZIF (Zero Insertion Force) / Snap-on Connector |
| Switch Type | SMT Micro-tactile Switches |
| Quality Grade | OEM / High-Quality Replacement |
2. Detailed Technical Breakdown
| Specification | Details & Description |
| Circuit Design | Multi-layer flexible printed circuit (FPC) designed to withstand thousands of tactile presses. |
| Contact Plating | Gold-plated pads to prevent oxidation and ensure low-resistance signal transmission. |

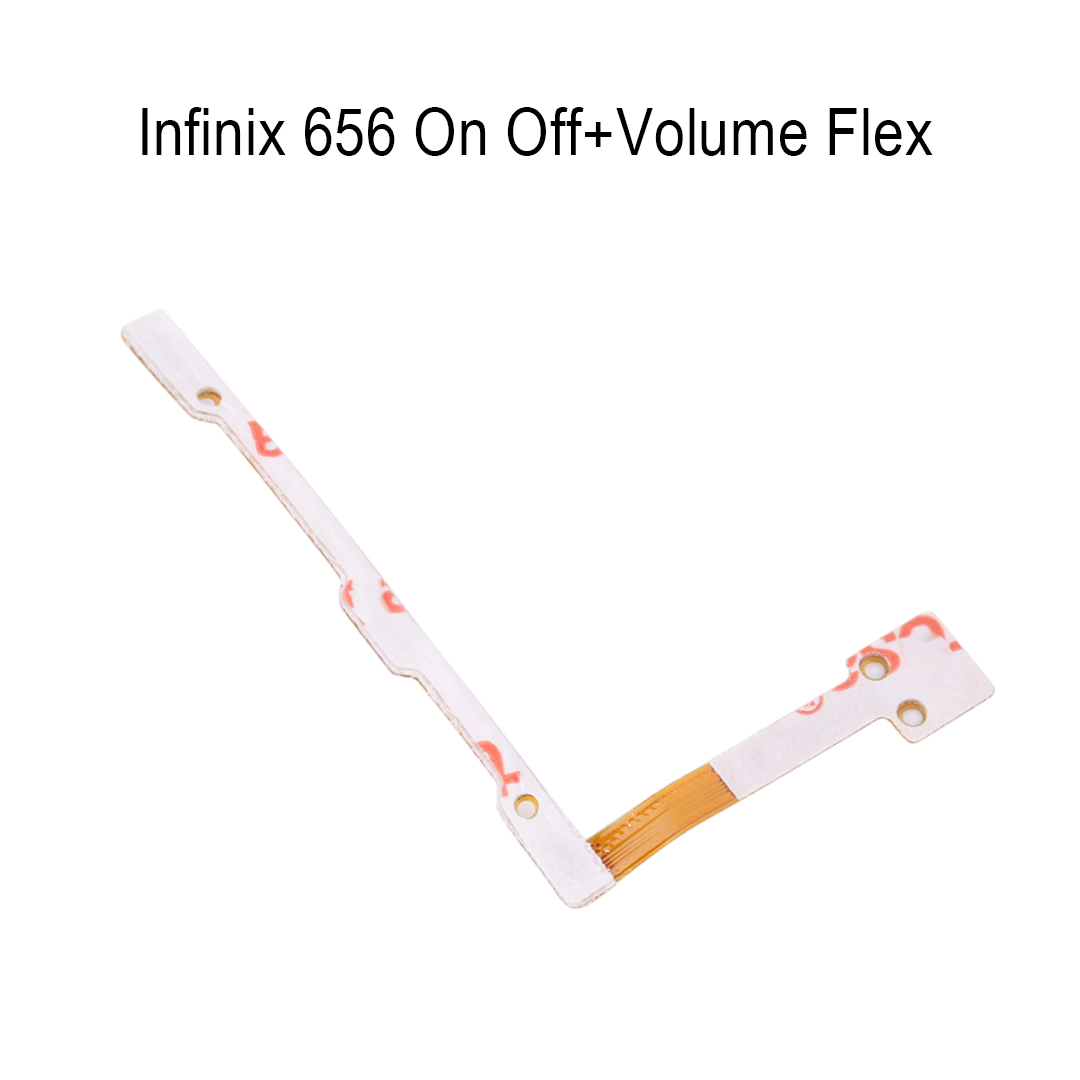

| Adhesive Backing | Pre-applied 3M thermal-stable adhesive for secure positioning within the mid-frame. |
| Tactile Response | Crisp, "clicky" feedback engineered to match the original factory specifications. |
| Weight | Approx. 0.01kg (Lightweight and ultra-thin for slim housing). |
| Operating Temp | -10°C to +60°C (Reliable performance in diverse climates). |
3. Compatibility & Fitment Guide
| Checklist | Compatibility Status |
| Device Model | Strictly for Infinix X656 (Note 7 Lite). Not compatible with Note 7 (X690). |
| Global Variants | Compatible with Indian, African, and Southeast Asian versions of X656. |
| Frame Compatibility | Fits both the with-frame and without-frame housing assemblies. |
| Hardware Rev | Compatible with all standard motherboard revisions for the Note 7 Lite series. |
| Weight |
0.002 |
|---|
