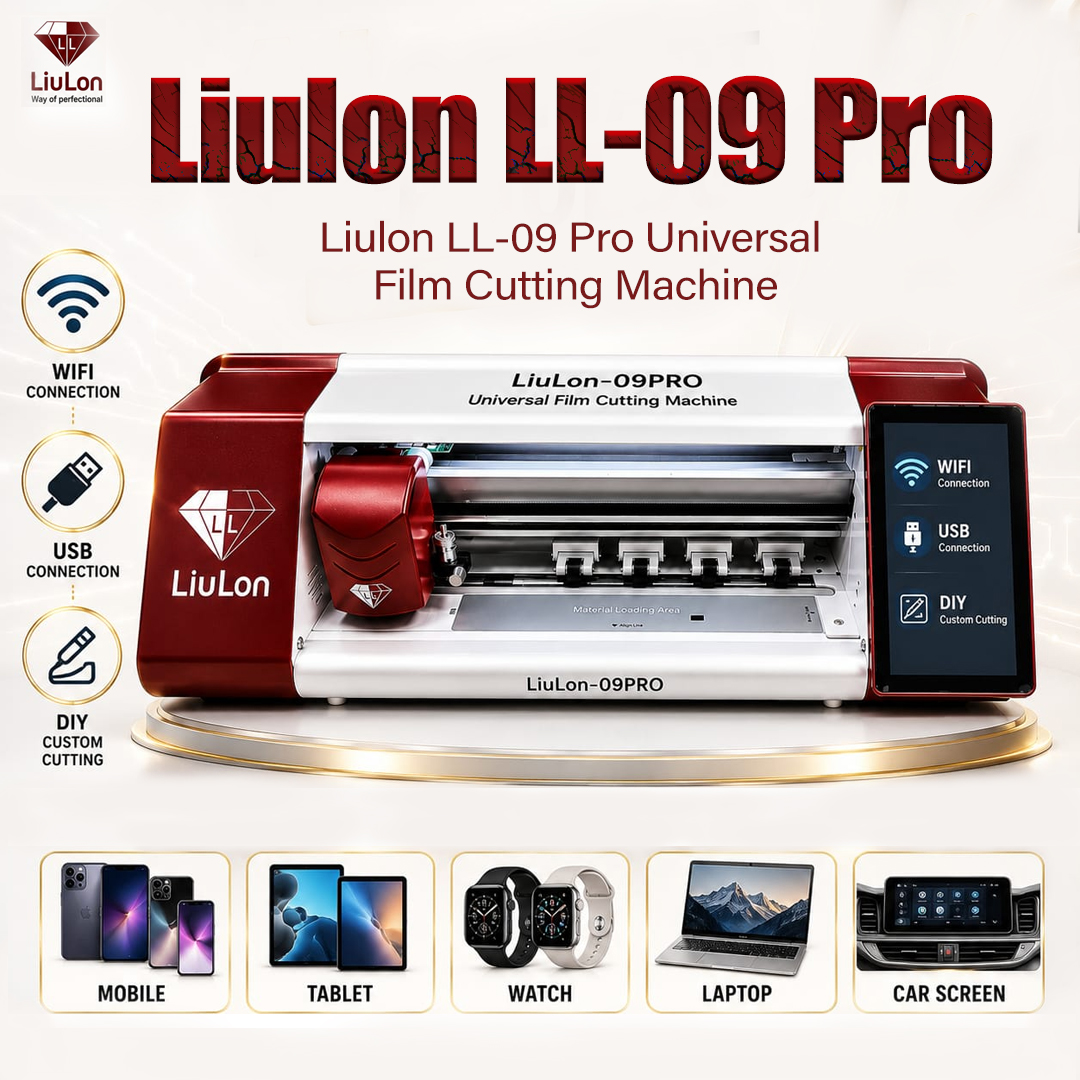

Liulon LL-09 Pro Universal Film Cutting Machine
The Liulon LL-09 Pro is a professional-grade, intelligent film cutting plotter designed to modernize mobile repair shops and retail kiosks. By utilizing a cloud-based database that is updated in real-time, this machine allows technicians to cut screen protectors, back skins, and hydrogel films for virtually any device on demand, eliminating the need to maintain large physical inventories.
Below is the comprehensive technical overview and feature set for the Liulon LL-09 Pro.
Liulon LL-09 Pro: Technical Specifications
| Feature | Specification |
| Model Name | Liulon LL-09 Pro |
| Product Type | Intelligent Universal Film Cutting Plotter |
| Max Cutting Width | Up to 250 mm |
| Cutting Accuracy | ±0.01 mm |
| Blade Material | High-hardness Tungsten Steel (Adjustable) |
| Operating System | Android-based Intelligent Firmware |
| Connectivity | Wi-Fi and Bluetooth |

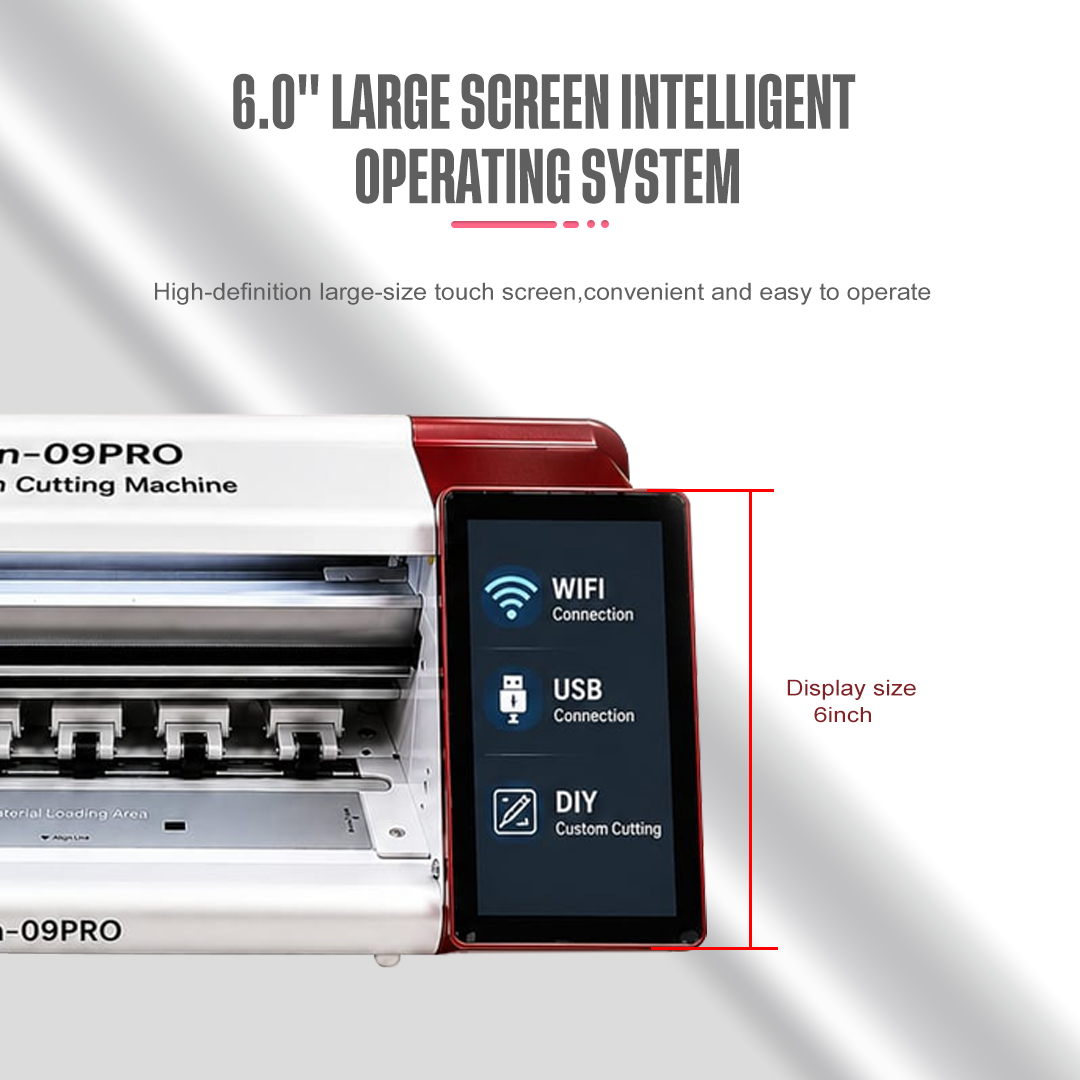

| Display | Integrated HD Touchscreen |
| Power Supply | 220V (110V optional) |
| Weight | Approx. 6.5 kg – 7.5 kg |

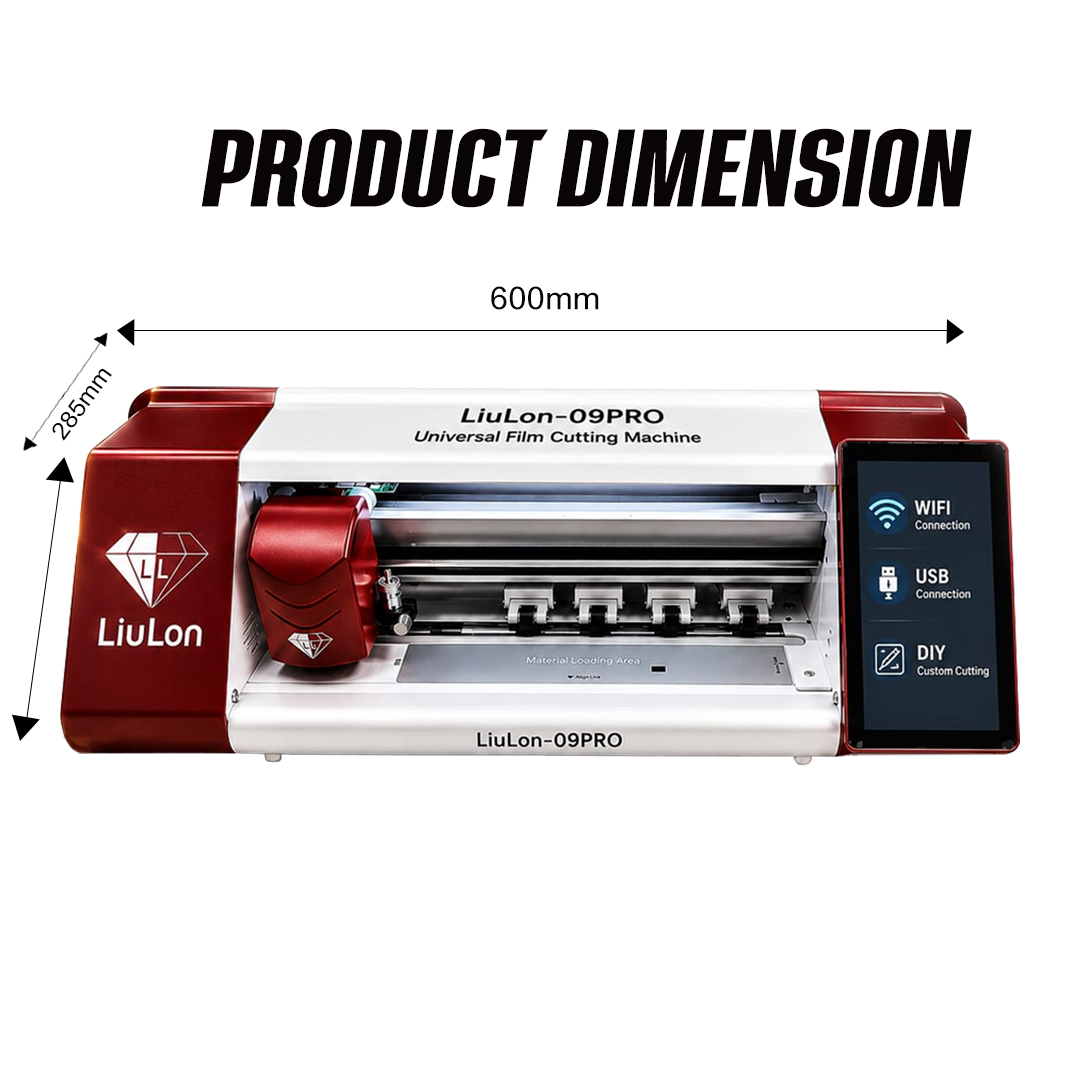

| Dimensions | ~600 x 285 x 300 mm |
Key Features & Operational Benefits
| Feature | Advantage for Business |
| Massive Cloud Database | Access to 30,000+ templates for phones, tablets, smartwatches, AirPods, and gaming consoles; updated daily. |
| Zero Inventory Cost | No need to stock hundreds of pre-cut screen guards; cut exactly what you need, when you need it. |
| Universal Compatibility | Supports Hydrogel, TPU, Anti-Peep, Matte, and decorative back skin materials. |
| Automated Precision | Automatic sensor-driven film feeding and alignment for a perfect, bubble-free fit every time. |
| User-Friendly UI | Standalone operation via built-in touchscreen; no external PC or mobile phone required to operate. |
| Silent Performance | Advanced motor technology ensures operation under 50dB, ideal for quiet retail environments. |
| Customization | Enables the creation of bespoke back skins, adding a high-margin value-added service to your store. |
| Efficiency | Rapid cutting speeds (standard screen film cut in <20 seconds), increasing service throughput. |
Why Choose the LL-09 Pro?
The Liulon LL-09 Pro is engineered to reduce overhead costs while increasing service versatility. By shifting to an "on-demand" production model, repair shops can stop losing sales due to "out of stock" screen protectors for older or niche models.
Standard Package Includes:
-
1x LL-09 Pro Plotter Machine
-
2x High-precision Cutting Tips (Blades)
-
1x Non-Slip Silicon Pad
-
1x Wiper (for bubble-free application)
-
1x Power Adapter & Cable
-
1x LN Key (for maintenance)
-
1x ESD Safe Tweezers
