MECHANIC DUSTY TC-24 DUAL-ENDED TYPE-C DATA CABLE TESTER

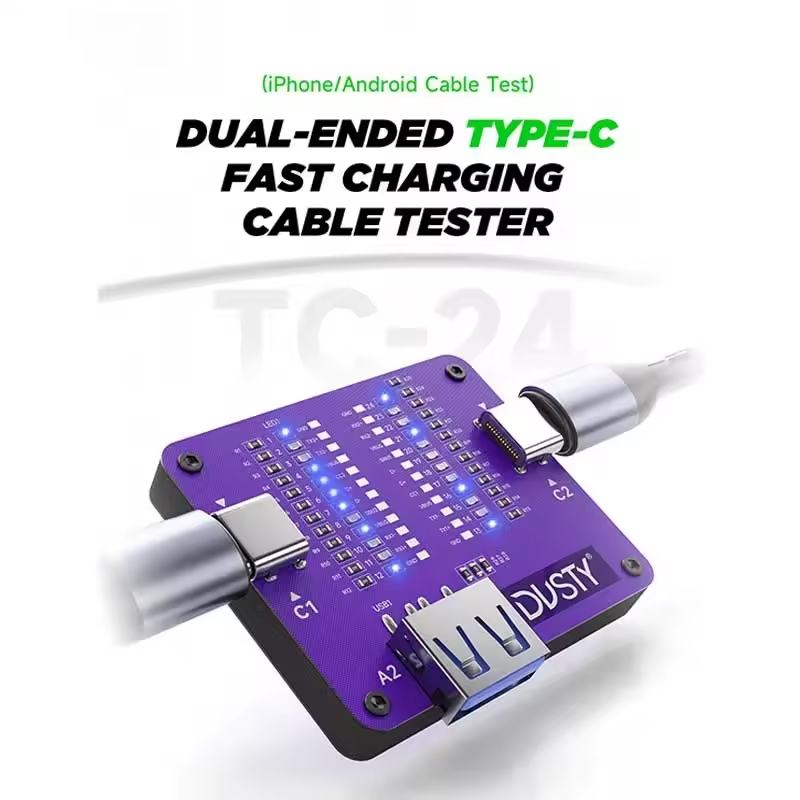

MECHANIC DUSTY TC-24 Dual-Ended Type-C Data Cable Tester
The MECHANIC DUSTY TC-24 is a high-precision diagnostic tool designed for professional electronics technicians and e-commerce quality control. It is specifically engineered to identify faults, internal wiring integrity, and counterfeit markers in dual-ended Type-C data cables. Unlike standard testers, the TC-24 focuses on the structural and functional health of the cable, ensuring it can handle high-speed data transfer and PD (Power Delivery) fast charging protocols.
Product Specifications & Technical Parameters
| Specification | Detail |
| Product Model | Mechanic Dusty TC-24 |
| Interface Support | Dual-Ended USB Type-C to Type-C |
| Detection Speed | < 0.5 Seconds |
| Display Type | Integrated High-Contrast LED Indicator Matrix |
| Power Source | Built-in Rechargeable Lithium Battery |
| Charging Port | USB Type-C (for device charging) |
| Protection Features | Short-Circuit Protection & Static Discharge Protection |
| Dimensions | 48mm x 48mm x 12mm |
| Casing Material | CNC Aluminum Alloy / Industrial Grade Polymer |
| Weight | ~45g |
Comprehensive Feature Breakdown
| Feature | Functional Description |

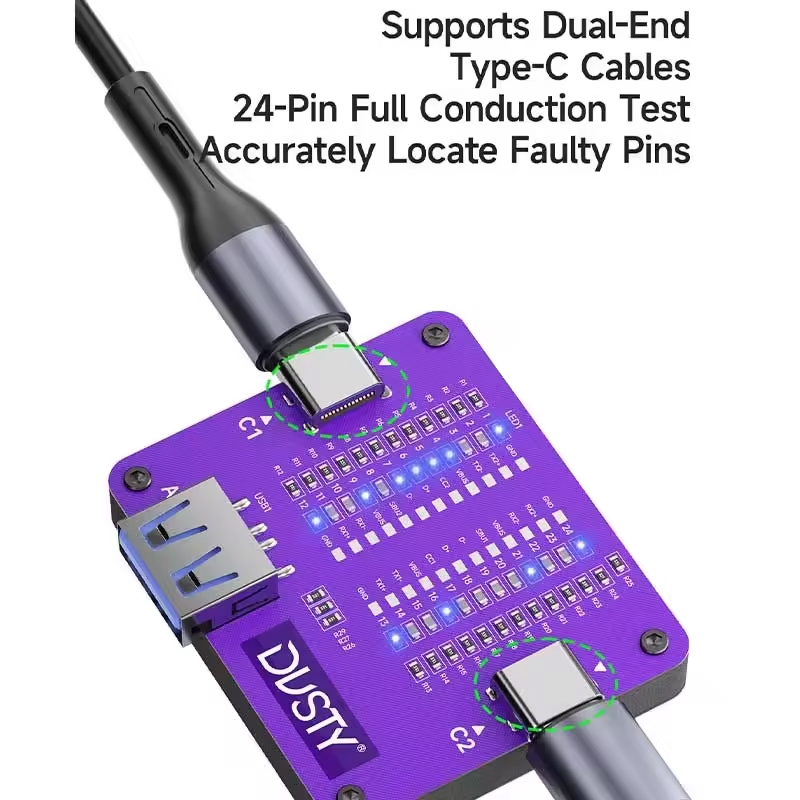

| Dual-End Detection | Analyzes both ends of a Type-C cable simultaneously to detect pin mismatches or broken internal traces. |
| CC/VBUS Mapping | Real-time monitoring of CC (Configuration Channel) and VBUS lines to ensure Power Delivery (PD) compatibility. |
| E-Marker Chip ID | Identifies the presence and health of E-Marker chips required for 100W+ high-wattage charging. |
| Data Line Testing | Tests D+/D- and high-speed RX/TX lanes for data synchronization stability. |
| One-Key Operation | Simplified interface allows technicians to cycle through test modes with a single tactile button. |
| Compact Form Factor | "Dusty" series portable design makes it ideal for mobile service benches or on-the-go inspections. |
Indicator Interpretation & Diagnostics
The TC-24 utilizes an LED matrix to provide instant feedback. Below is the diagnostic key for troubleshooting:
| Indicator Signal | Diagnostic Status | Technical Implication |
| All Lights Green | Pass | Cable is fully functional with all data and power pins intact. |
| VBUS Light Off | Power Failure | The main power core is severed; the cable will not charge devices. |
| D+/D- Lights Off | Data Link Failure | Cable will charge but cannot transfer data or sync with computers. |
| CC Light Dim/Off | Protocol Error | The cable will fail to initiate PD Fast Charging or handshake with chargers. |
| GND Flashing | Short Circuit |
Dangerous fault; the cable may damage the connected device or charger |
| Weight |
0.10 |
|---|
