MECHANIC PN360 PORTABLE DIGITAL BATTERY SPOT WELDER

MECHANIC PN360 Portable Digital Battery Spot Welder

The Mechanic PN360 is a high-precision, portable spot welding solution specifically engineered for the electronics repair industry. It is designed to facilitate the replacement of smartphone battery cells (BMS board welding) and the assembly of small-scale battery packs. Featuring a 2-inch HD color display and advanced intelligent logic, the PN360 offers a professional-grade experience for micro-soldering tasks.

Technical Specifications & Product Details

Key Performance Features

1. Intelligent Color Interface

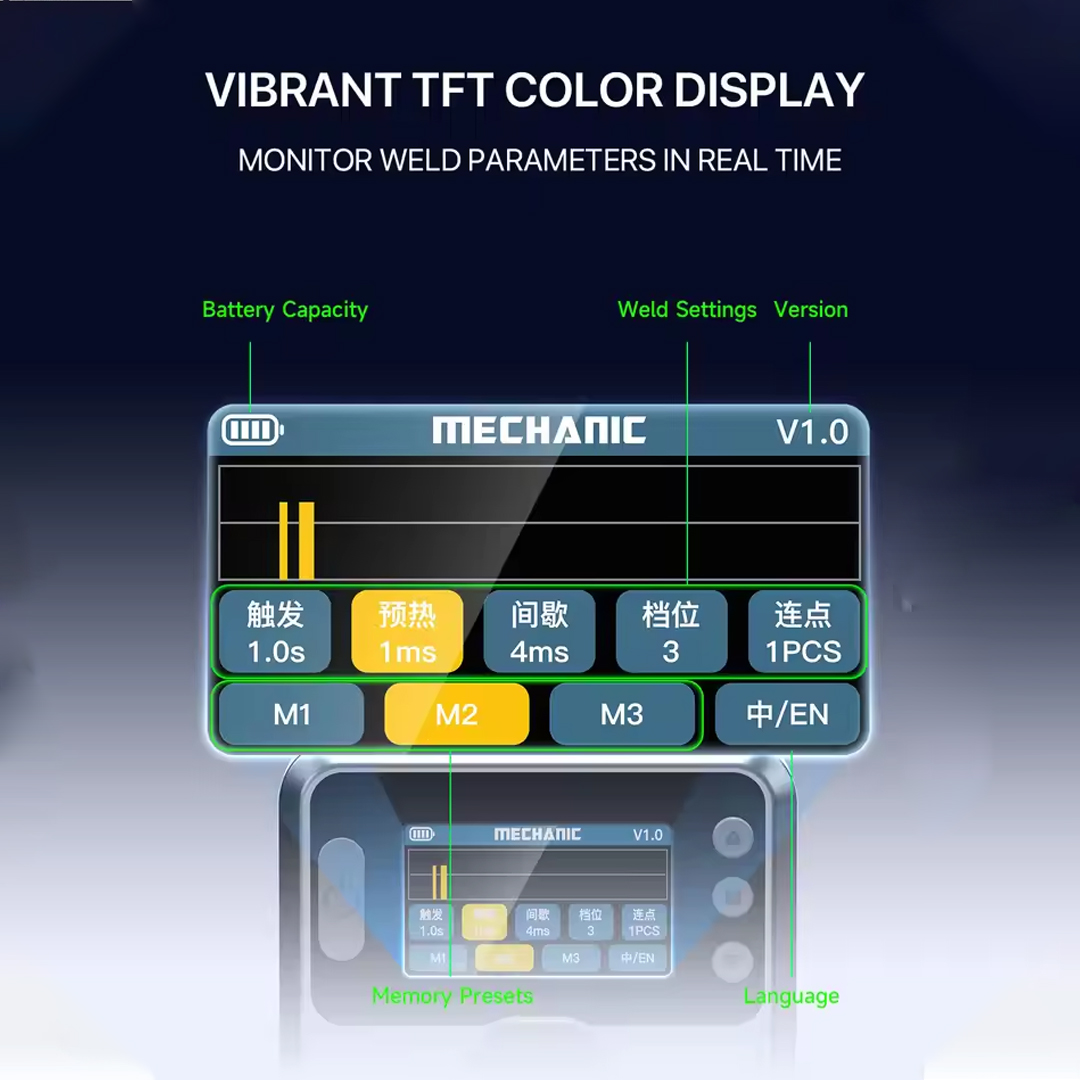

Unlike traditional spot welders with basic LED indicators, the PN360 features a vibrant 2-inch HD color display. This screen provides real-time telemetry, including current power stage (1–80 levels), internal battery health, welding count, and system temperature. This level of feedback ensures consistent weld quality across multiple battery cells.

2. 80-Level Precision Control

For delicate smartphone battery repairs, precision is critical. The PN360 offers 80 adjustable power levels, allowing technicians to fine-tune the heat output. This prevents "blow-through" on thin 0.1mm nickel strips while providing enough power for thicker 0.2mm sheets used in power tool battery packs.

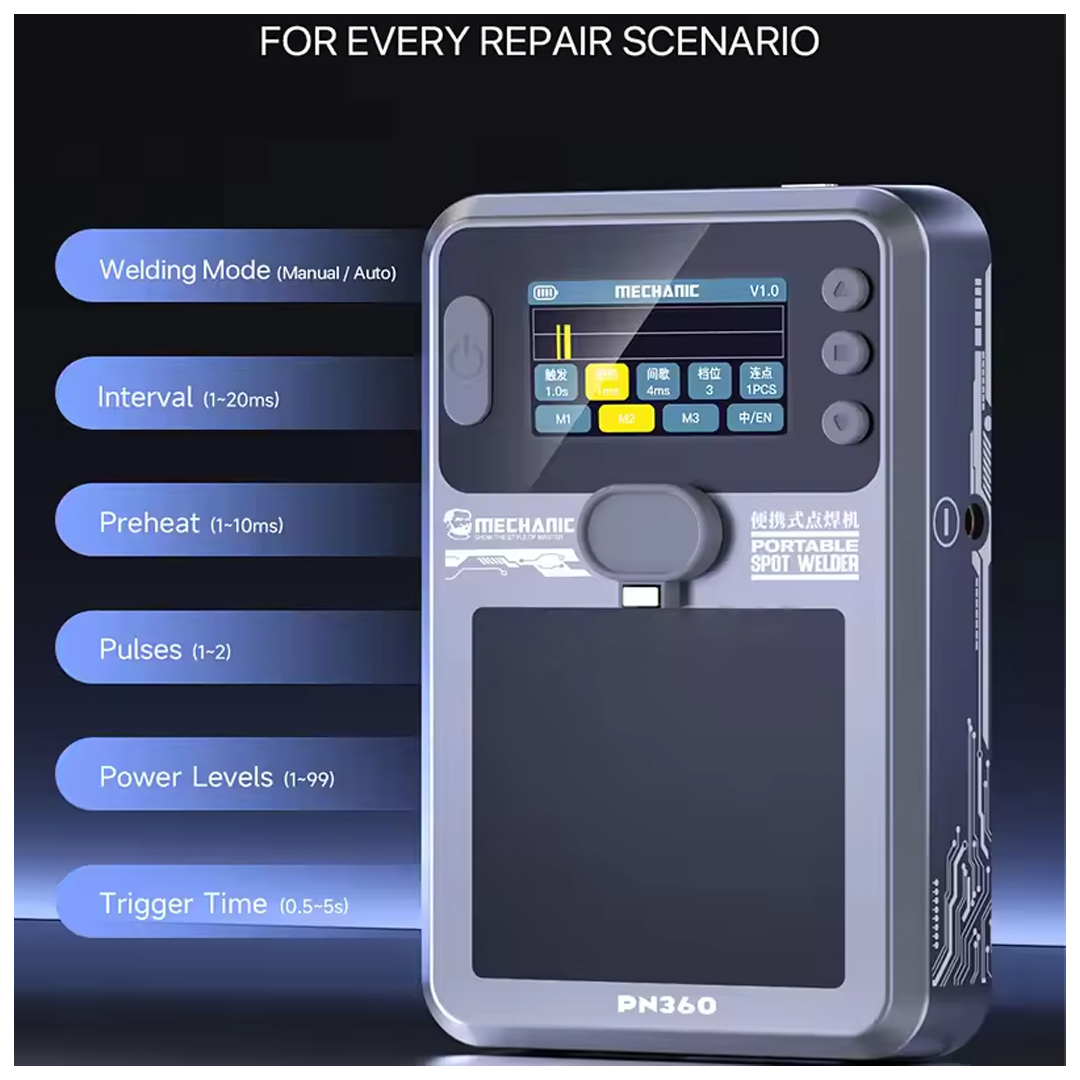

3. Dual-Mode Operation

• Automatic Mode: The welder detects contact between the pens and the nickel strip, delivering a pulse after a short, adjustable delay. This is ideal for fast, repetitive assembly.

• Manual Mode: Provides the technician with total control over the discharge timing, which is essential for complex BMS (Battery Management System) board alignments.

4. High-Rate Discharge Technology

The internal 5000mAh high-rate battery is capable of delivering the massive instantaneous current required for a perfect thermal fusion. This ensures that the weld nugget is strong and the electrical resistance at the joint is kept to an absolute minimum.

Applications in Electronics Repair

• iPhone Battery Cell Replacement: Seamlessly weld the original BMS (Battery Management System) board onto a new battery cell to maintain "Battery Health" percentages and avoid "Unknown Part" warnings.

• 18650/21700 Pack Assembly: Ideal for creating small battery arrays for portable electronics, drones, or specialized technical tools.

• Terminal Repair: Useful for welding nickel tabs onto various rechargeable lithium-polymer and lithium-ion cells.
