Sugon 2020d 700w Smd Rework Station

The Sugon 2020D 700W SMD Rework Station is a professional-grade hot air tool designed for precision electronic repairs, such as mobile phone PCB rework, BGA desoldering, and SMD component replacement. It features a closed-circuit microcomputer control for rapid heating and stable temperature management.

Below is the full product description and technical specifications organized for easy reference.

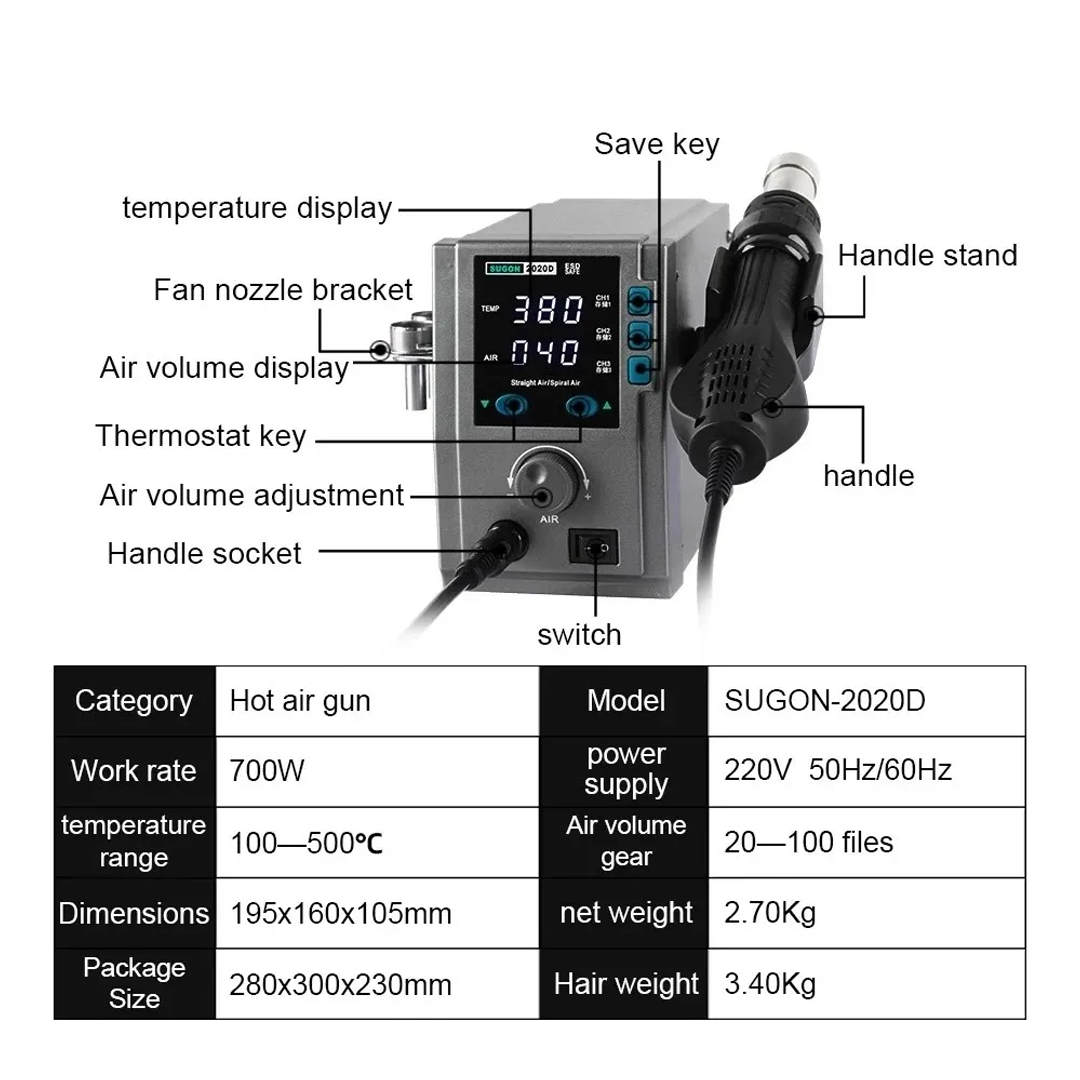

Sugon 2020D Technical Specifications

Key Product Features

• Intelligent Auto-Sleep: The handle is equipped with an induction switch. When placed back into the holder, the system automatically enters standby mode to save power and extend the heating element's life. It returns to the working mode instantly when picked up.

• Precision Temperature Control: Uses a zero-passage trigger microcomputer system to maintain highly accurate and stable temperatures that are not affected by the volume of air output.

• High-Quality Airflow: The brushless fan provides a soft, even wind suitable for delicate desoldering tasks on SOIC, CHIP, QFP, and PLCC components.

• Safety Cooling Function: Features an automatic large air volume cooling system that activates during shutdown to cool the heating element safely and prevent thermal damage.

• Custom Calibration: Includes a digital temperature calibration method, allowing users to recalibrate the unit easily if the heating element is replaced.

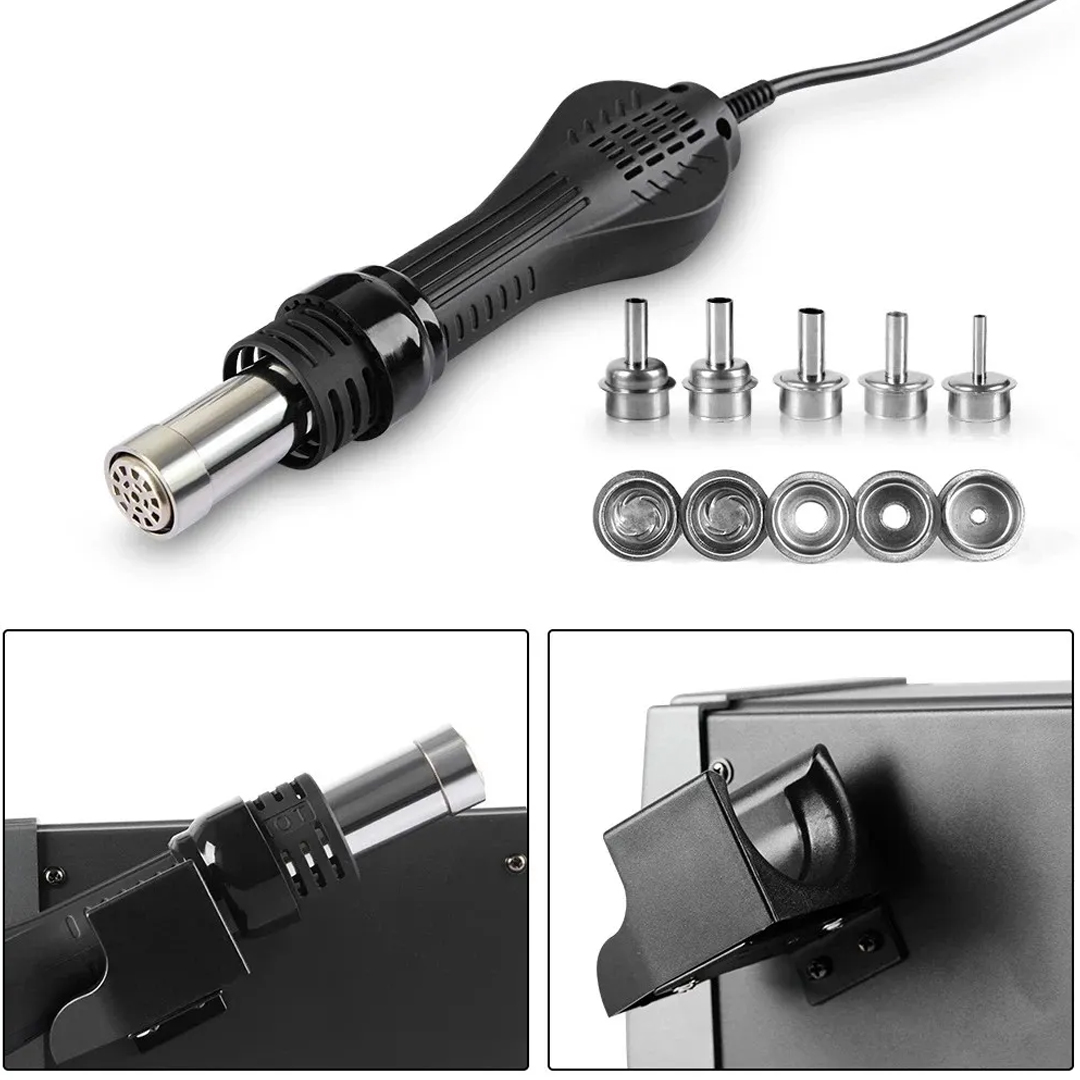

• Versatile Nozzle System: Often shipped with a variety of straight and cyclone (spiral) nozzles, allowing technicians to switch between direct and rotary wind depending on the task requirements.
