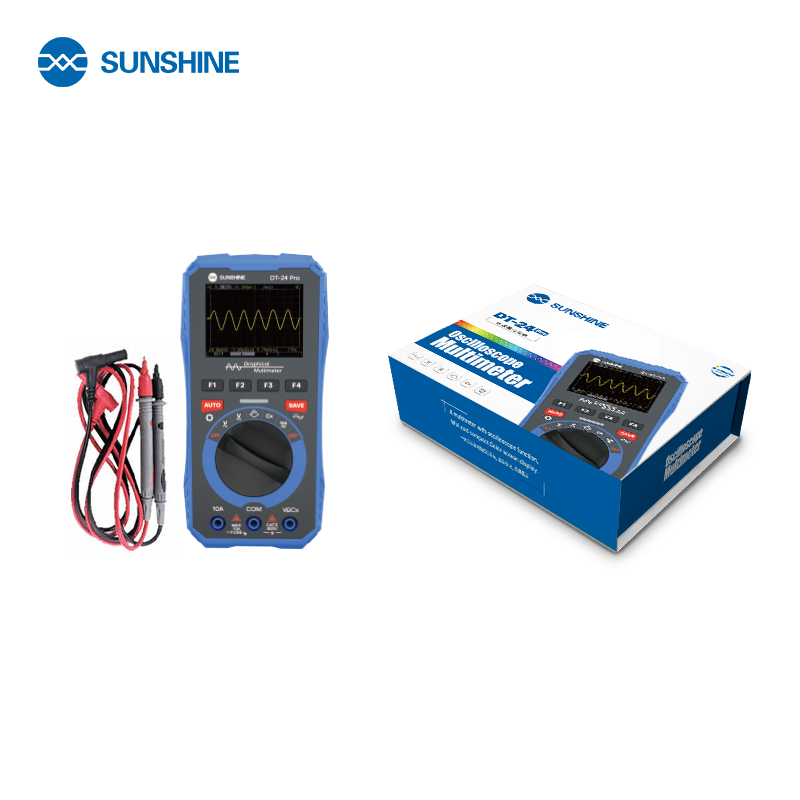

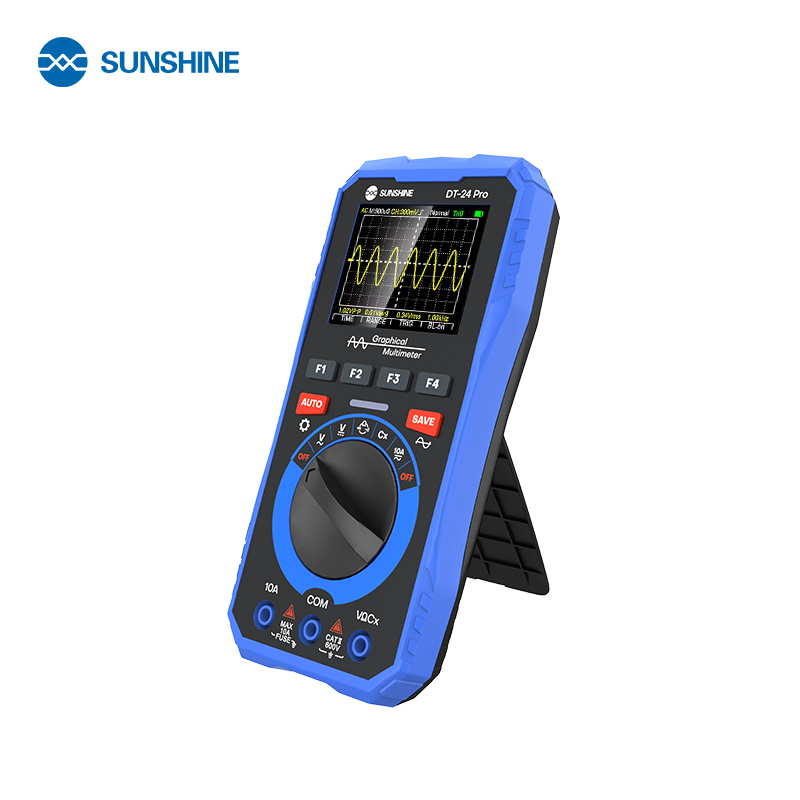

Sunshine Dt-24 Pro Oscilloscope Multimeter
Sunshine DT-24 Pro 2-in-1 Digital Display Data Storage Oscilloscope Multimeter with Waveform Capture
Features:
- DT-24 Pro multifunctional multimeter oscilloscope two-in-one, one-button waveform capture, adjustable waveform parameters
- 2-in-1 multifunctional, 2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000-code digital multimeter
- Waveform capture mode, one-key viewing, with three waveform scanning modes: Automatic/Normal/Single
- Automatic mode: Detect and capture waveform signals, regardless of whether the signal meets the trigger conditions
- Normal mode: Detect and capture the last waveform signal that meets the triggering conditions
- Single mode: Detect and capture the first waveform signal that meets the trigger conditions
- Automatically capture waveforms, one-touch automatic waveform capture function
- Intelligent protection, automatic range plus 10A fuse dual protection
- Same screen display, historical data, and real-time data are displayed on the same screen
- Automatic sleep, automatic sleep function after 15 minutes of no operation
- Data storage, data waveform retention function during measurement, can store 100 sets of data, 10 waveforms
- Application Scenarios: Waveform Display/AC Voltage/Resistance Test/Capacitance Test
Specification:
- Brand: Sunshine
- Product Name: Oscilloscope Multimeter
- Model: DT-24 Pro
- Net Weight: 178g
- Product Dimensions: 77*157*25mm
- Packaging Dimensions: 170*140*35mm
- Display: 240*320 Color Screen
- Backlight: Light remains on
- Battery: 3 x AA batteries (Not includes)
- Static workflow: About 65mA
- Continuous use time: More than 10 hours/battery capacity about 65mAh
- Observation area: 49*36.7mm
- Input resistance: About 10MΩ
- Auto sleep: 15 minutes or disabled
- Sleep current: 35μA
- Storage capacity: 100 DMM data,10 OSC waveform records
- Storage conditions: -10°C~+60°C;<90% RH

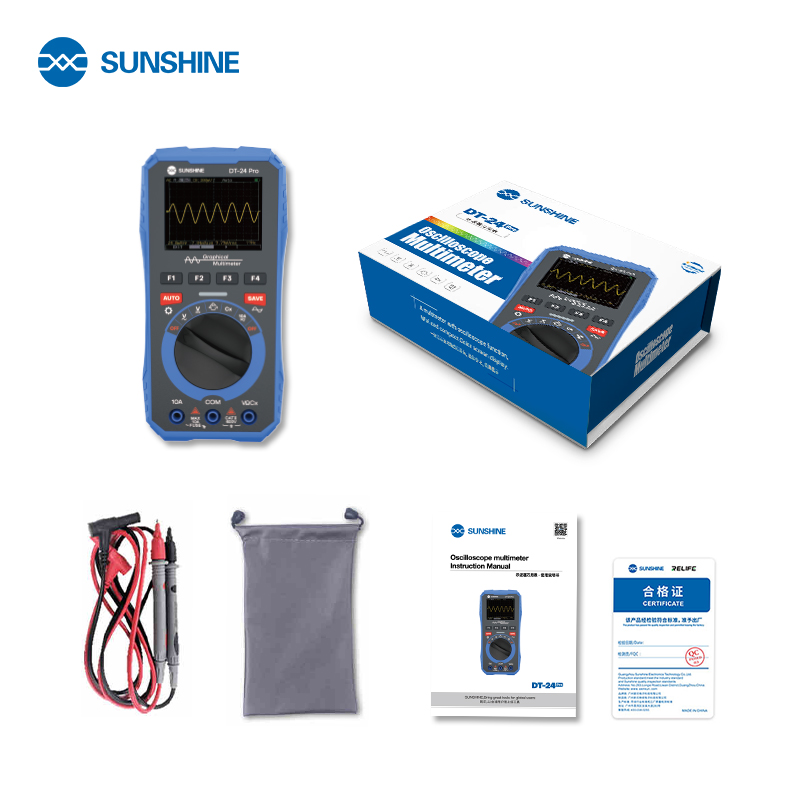

Package includes:
- 1 x Oscilloscope Multimeter (without Battery)
- 1 x Extra Tip Test Pen
- 1 x Cloth Bag
