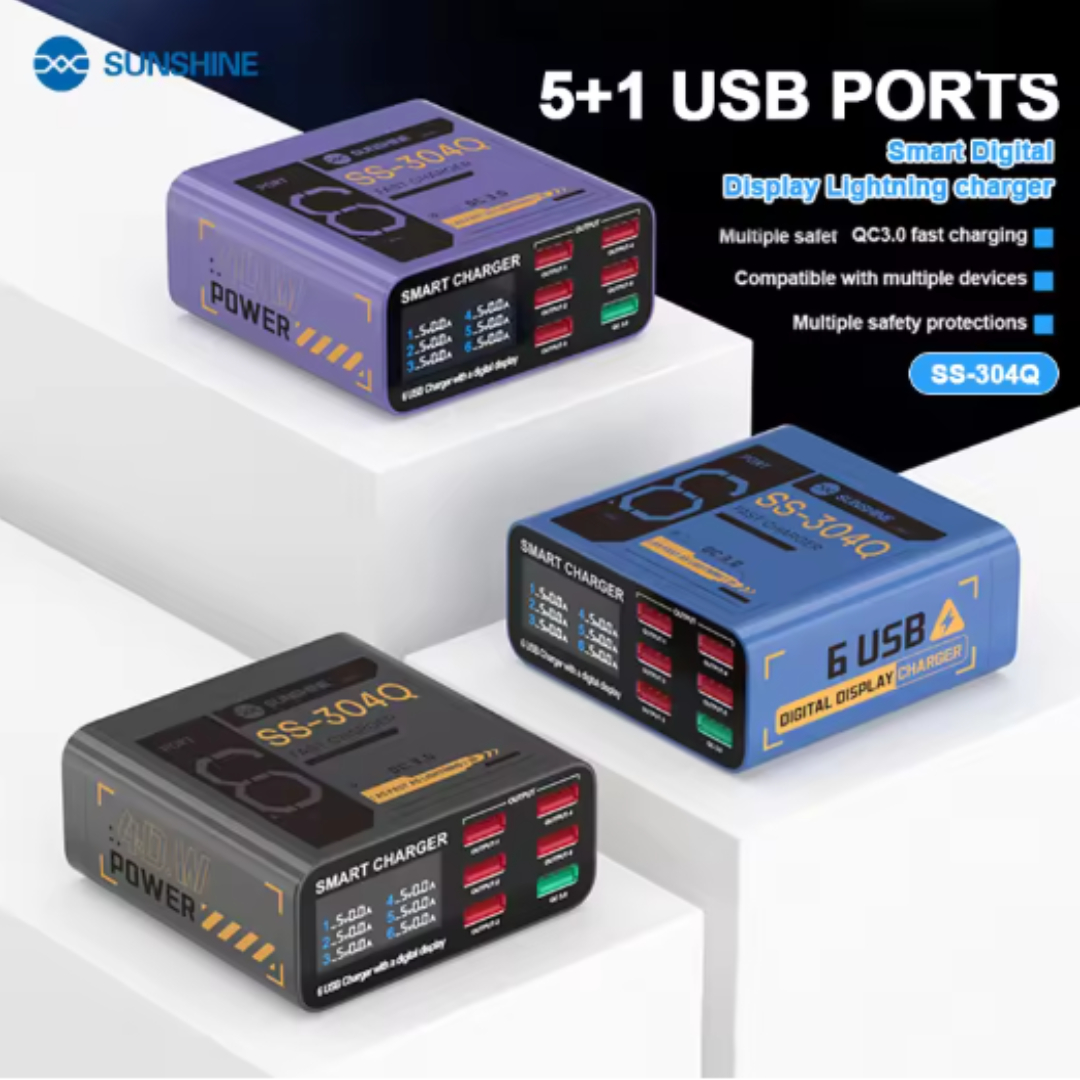

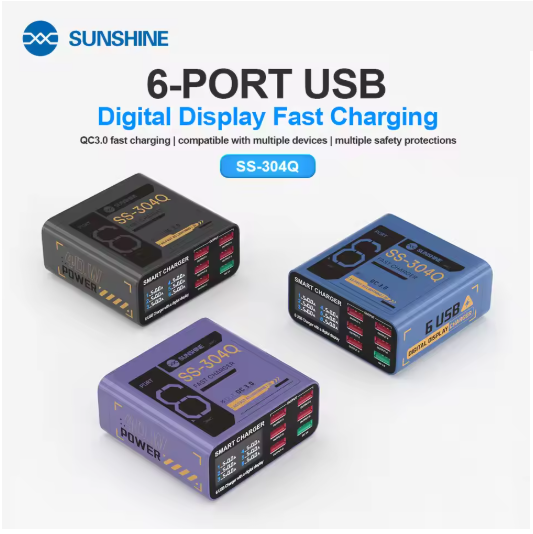

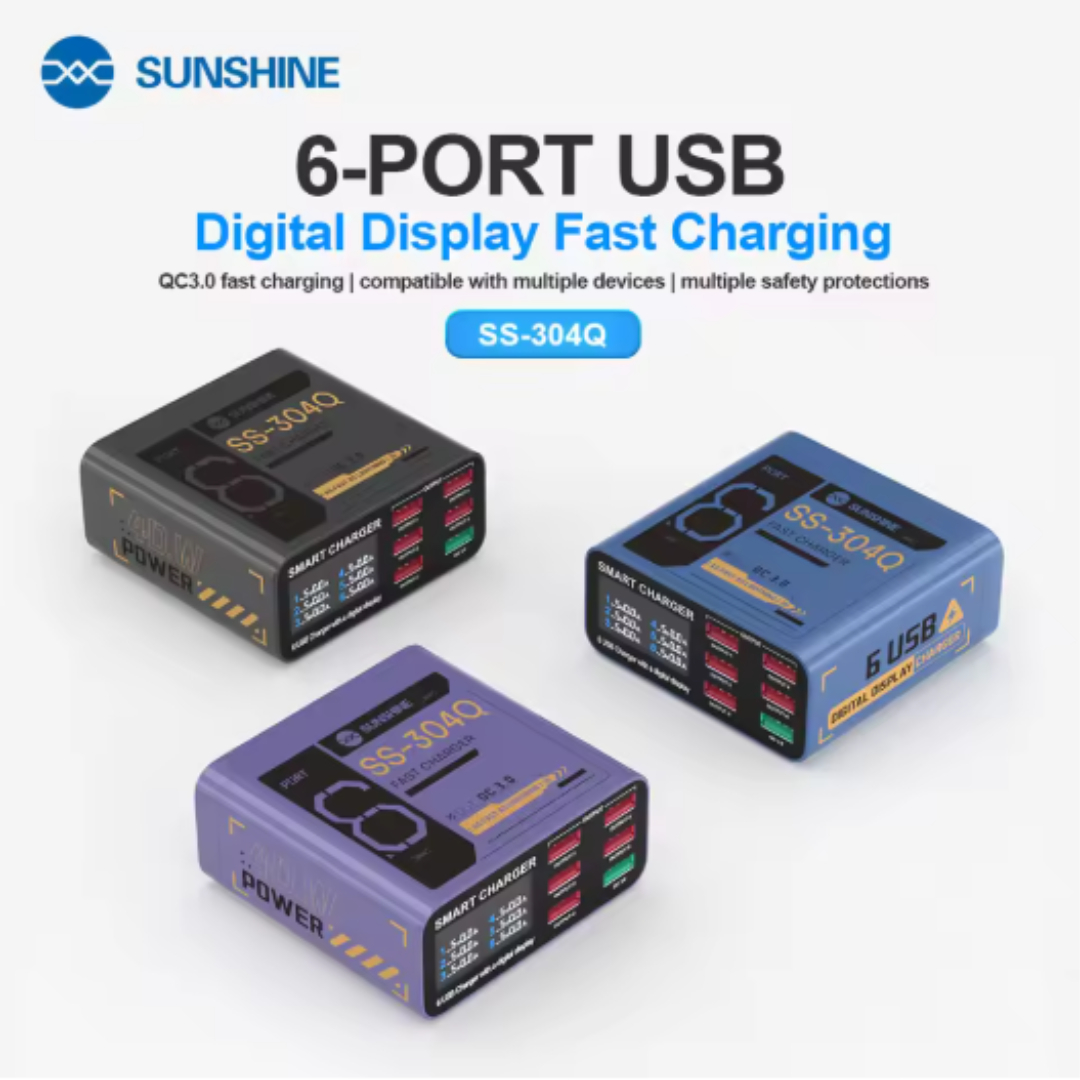

Sunshine SS-304Q Black 6 Port Usb Charger
The Sunshine SS-304Q 6-Port USB Smart Charger is a professional-grade charging station designed for high-efficiency power delivery and technical diagnostics. Engineered for mobile repair technicians and multi-device power users, it combines QC 3.0 Fast Charging with real-time digital monitoring to ensure safe and stable current distribution across six simultaneous channels.
Below is the comprehensive product description and specification breakdown in a tabular format.

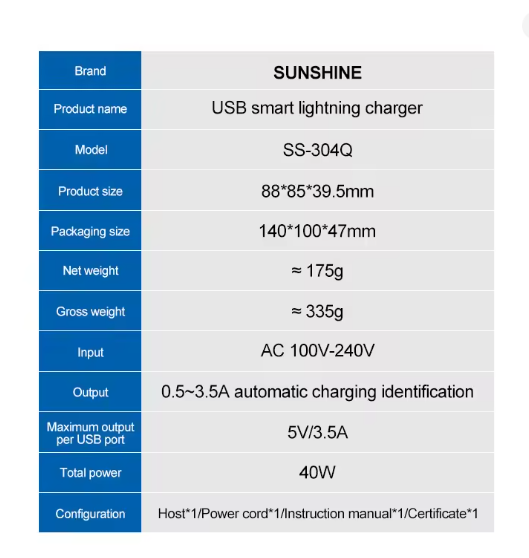

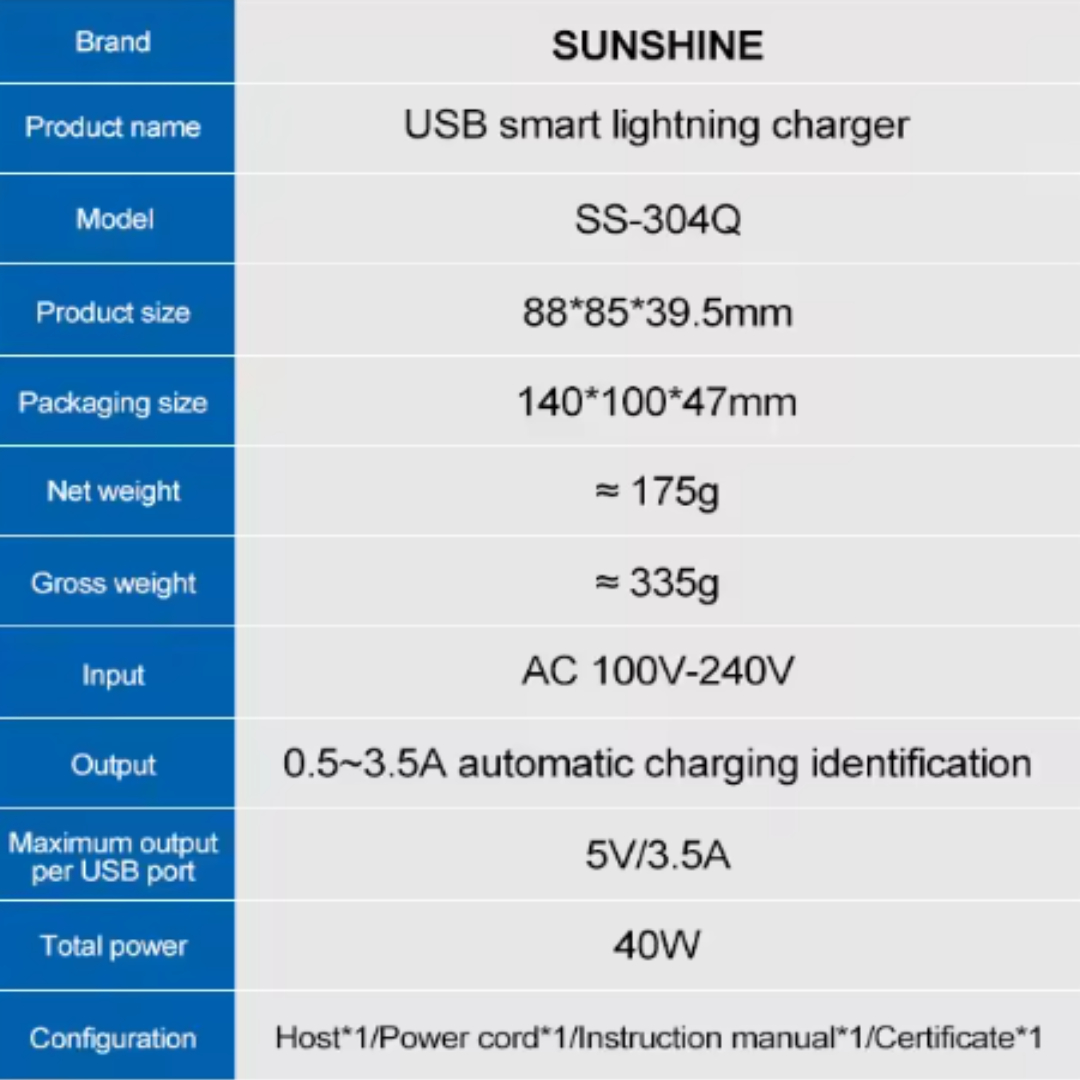

Product Overview: Sunshine SS-304Q Smart Charger
| Feature | Detailed Specification |
| Model Number | SS-304Q |
| Charger Type | AC to DC Smart Lightning Charger |
| Number of Ports | 6 USB Ports (1 x QC 3.0 Fast Port + 5 x Standard Smart Ports) |
| Fast Charge Protocol | Qualcomm Quick Charge 3.0, Samsung AFC, Huawei FCP |
| Display Type | Integrated LED Digital Display (Real-time Voltage & Current) |
| Input Voltage | AC 100V – 240V, 50/60Hz (Global Compatibility) |
| Single Port Output | 5V / 3.5A (Maximum) |
| Total Power Output | 40W (Total Max 6A) |
| Intelligent Matching | Automatic Current Identification (0.5A to 3.5A) |
| Safety Certifications | 3C Certified with Multi-Protection System |
| Dimensions | 88mm x 85mm x 39.5mm |
| Net Weight | Approx. 175g (Compact & Portable) |
Symptom Checklist: Diagnostic Use Cases
As a technician-focused tool, this charger helps identify:
-
Short Circuits: If the current display jumps to a high number immediately upon plugging in a "dead" phone.
-
Fake Charging: If the phone shows a charging icon but the SS-304Q display shows 0.00A draw.
-
Battery Saturation: Monitoring the natural "tapering" of current as a battery reaches 100% capacity.
.jpg)
3.jpg)
1.jpg)
| Weight |
0.440 |
|---|
