Sunshine Tb-08 Pro Dual Light Direct Connection Pcb Motherboard Diagnosis Infrared Thermal Camera
Features:
- TB-08 Pro dual-light direct connection infrared thermal camera, thermal imaging direct connection to TV 4K high-definition display, can be used to repair mobile phones, tablets, computers, and other electronic products

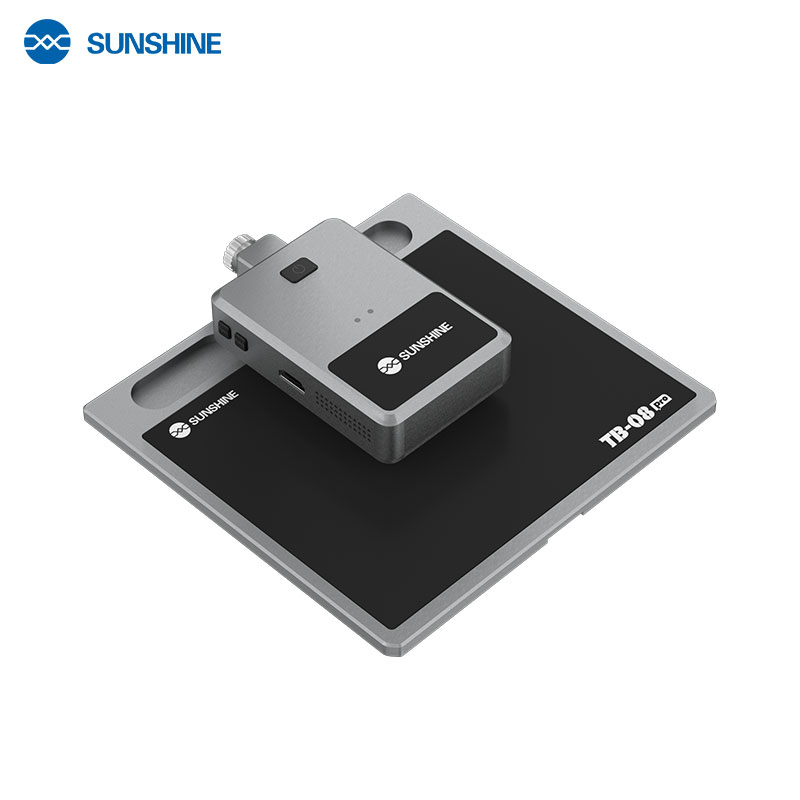

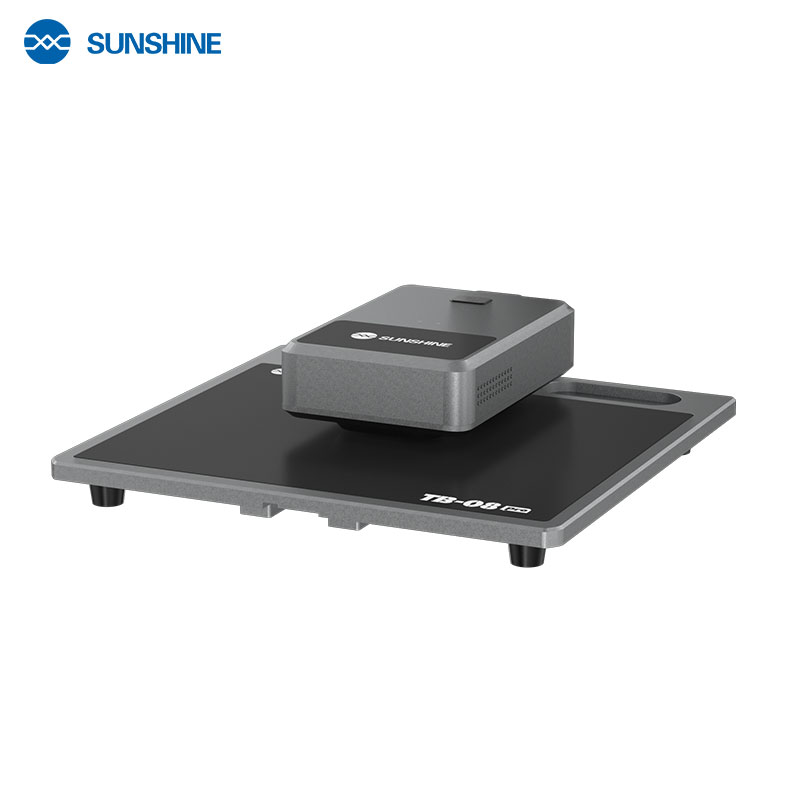

- Saves space and is easy to use, the bracket can be folded and compressed twice, which makes it easy to store and carry
- High resolution 4K ultra-clear display, 4K clarity, integrated ultra-clear algorithm, can generate 256*192 high-resolution thermal imaging, small leakage device details, high-definition and smooth, suitable for various fine fault diagnosis scenarios

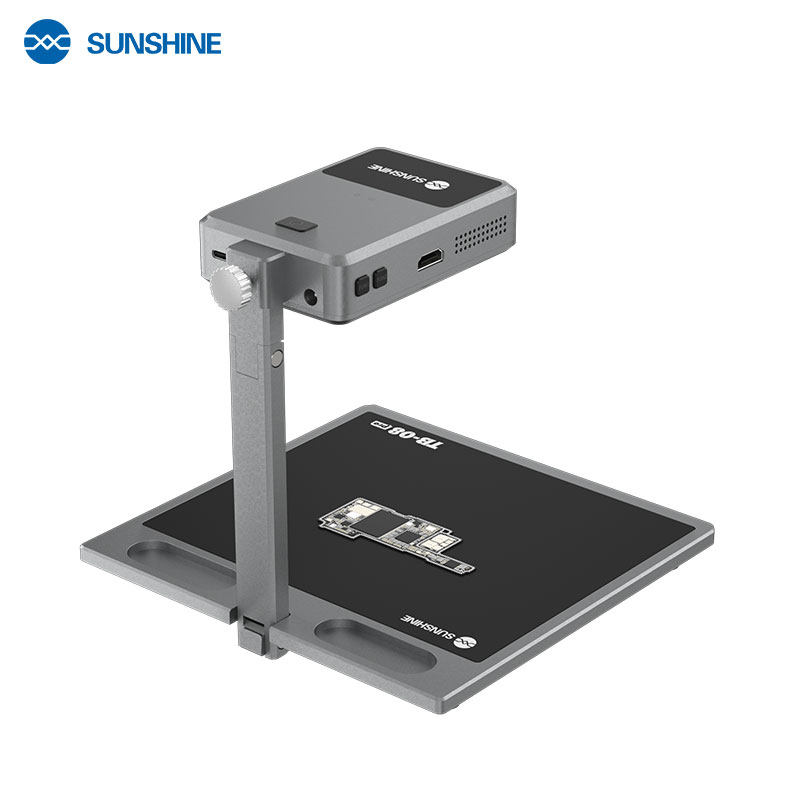

- Can adapt to different sizes of motherboard detection, one machine for multiple uses, to meet the detection needs of different application scenarios such as mobile phone motherboard repair, computer motherboard repair, and automobile motherboard repair
- Dual-light Imaging, a quick check of leakage current, supports simultaneous display of visible light and infrared, and can easily "quickly check with one click" even when facing the temperature rise caused by a small leakage current
- Multiple image display modes support multiple image display modes such as thermal imaging, visible light, dual-light fusion, and quick check with one click
- Various communication methods to improve user experience, no configuration required, plug and play, can be connected to iPhone, Android phones, and laptops via WiFi and Type-C, improving user convenience
Specification:
- Brand: SUNSHINE
- Product name: Multifunctional infrared detector
- Model: TB-08 Pro
- Net weight: =946g
- Product size: 190*184*174mm
- Detector type: Uncooled vanadium oxide (VOx)detector
- Resolution: 256*192
- Wavelength range: 7.5-13.5um
- Lens viewing angle: 56*42°
- Image resolution: 3840*2160 4K 800W
- Display mode: Visible light/thermal imaging/quick check
- Power supply mode: Type-C USB2.0/WiFi/HDMI
- Image storage format: JPG
- Input power supply voltage: DC 12V
- Power consumption: 6W
- Storage temperature range: -20?~60°?
- Stable working environment: 3?~45?
- Temperature measurement distance: 16.5cm
- Temperature measurement accuracy: 3?~45?
- Temperature measurement range: 3?-45?
- System Version: Android 6.0, iOS12.0, Window 7, and above

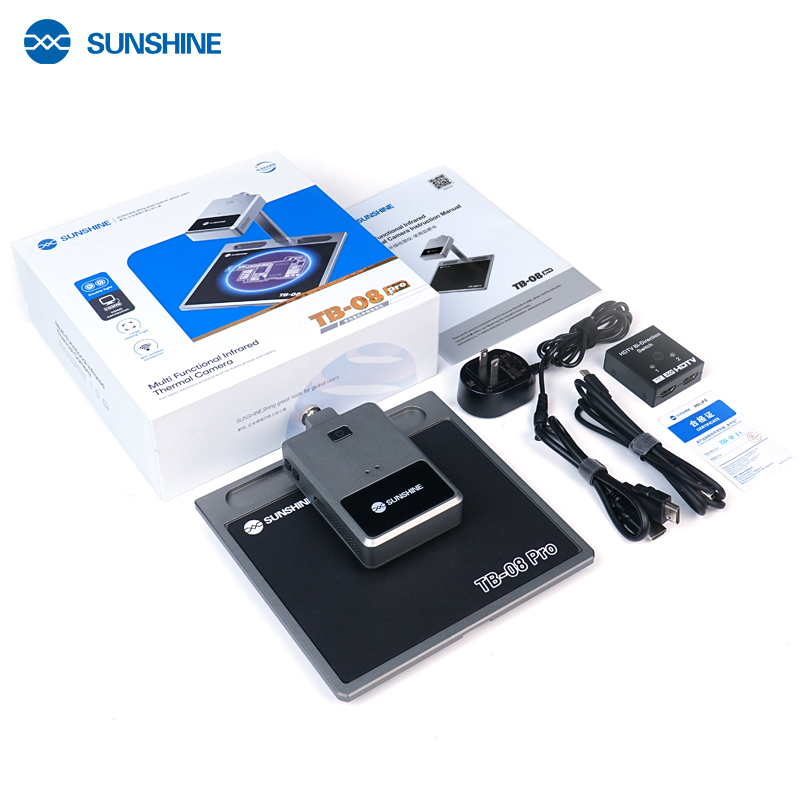

Package includes:
1 x Thermal Imaging Camera
1 x Power Adapter
1 x HDMI Converter
1 x Fixing Screw
1 x Type-C Cable
1 x HDMI Cable
