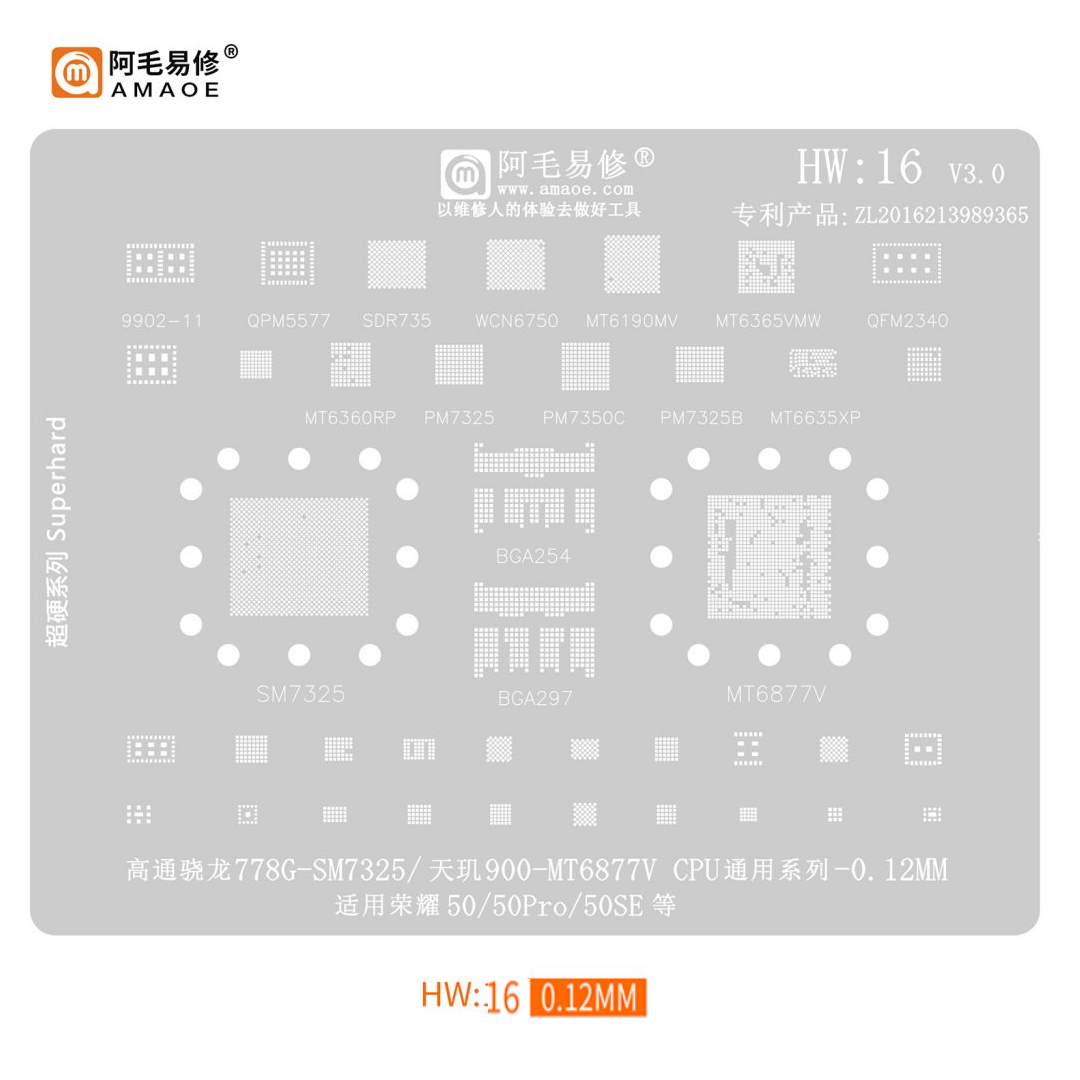

AMAOE HW-16 STENCIL For Honor/Huawei

Amaoe Hw-16 Stencil for Honor/huawei

Stencil Purpose: Stencils are used to apply solder paste to solder pads on a PCB precisely. This solder paste is a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process.

Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component's pads with precision.

Compatible Devices: The stencil is likely designed for use with specific models. Each stencil is typically designed to match the component layout of a particular device or series.

Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads.

Stencil Material: Stencils are commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes.

Supported model-

9902

QPM577

SDR735

WCN6750

MT6190MV

MT6365VMW

QFM2340

MT6360RP

PM7325

PM7325B

MT6635XP

BGA254

SM7325

BGA297

MT6877V
