Maant RC-3 3d Infrared Thermal Imaging Camera

(0 reviews)
₹18999 53% off ₹40000

Specification:

  • Brand: MaAnt
  • Product name: Infrared thermal imaging analyzer
  • Resolution: 256*192
  • Frame rate: 25Hz
  • Lens Angle: 56°x42
  • Temperature measurement distance: 3mm-15mm
  • Device port: USB Type-C
  • Input voltage: DC 5V
  • Temperature range: -15°C~600°C (5°F~+1112°F)
  • Storage temperature: -20°C~60°C
  • Operating temperature: 0°C~50°C
  • Net weight: 591g
  • Product size: 150*150*230mm
  • Package size: 204*204* 72mm



Maant RC-3 3d Infrared Thermal Imaging Camera

Features:

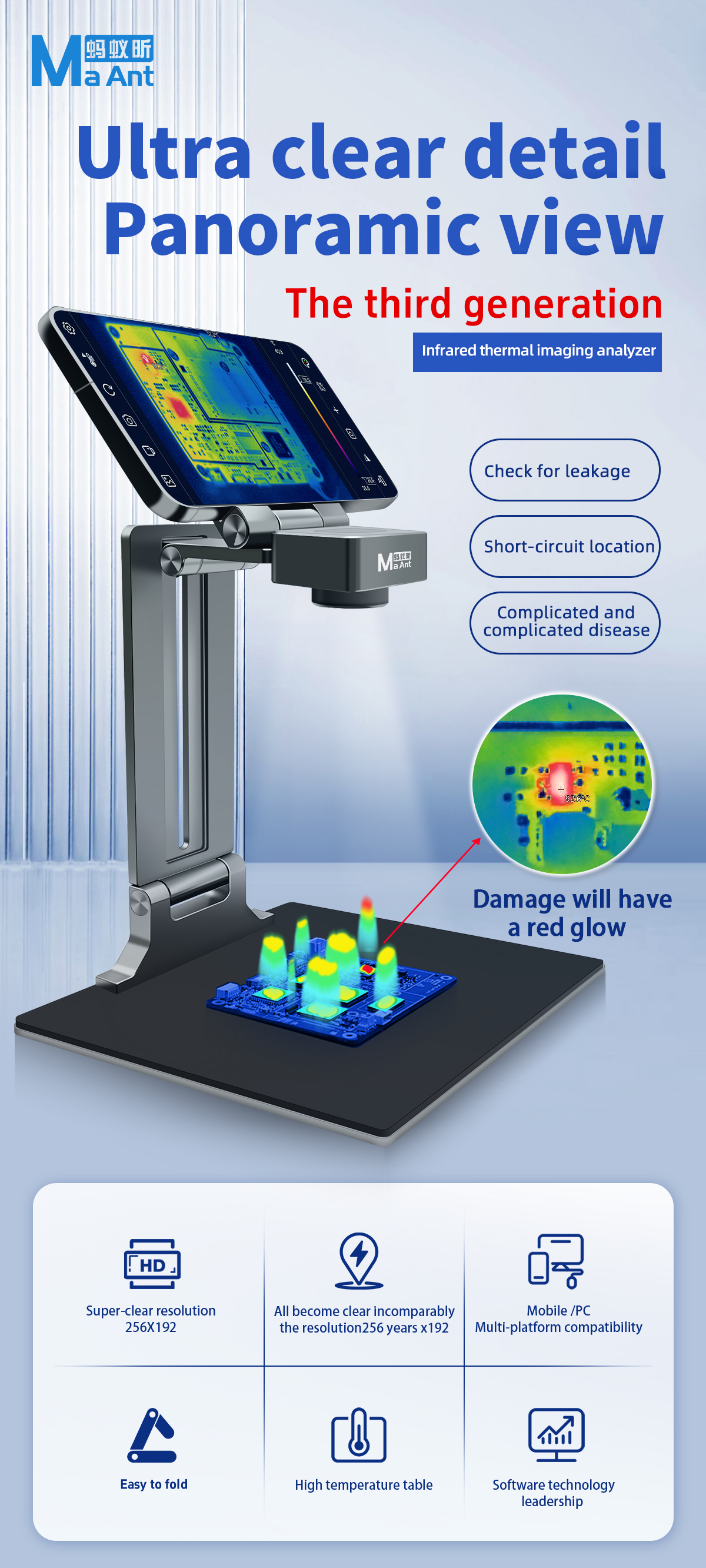

  • Ultra clear detail, panoramic view, the third generation infrared thermal imaging analyzer, check for leakage, short-circuit location, complicated and complicated disease

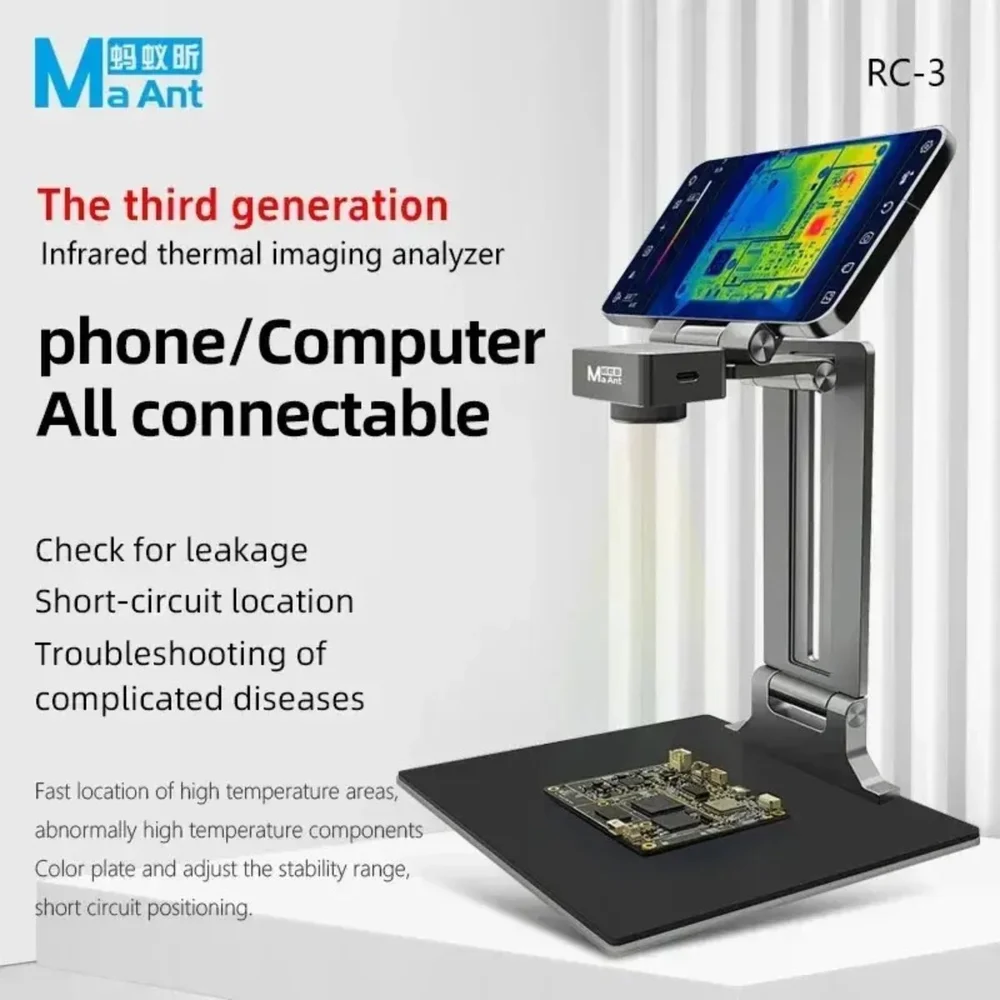

  • A quick check of leakage, open circuit positioning, difficult speed rower, fast location of high-temperature areas, abnormally, high-temperature components, color plate and adjust the stability range, short circuit positioning
  • 3D thermal field distribution, visual display of temperature changes, multi-dimensional observation product heat dissipation design, mostly used in construction, industry, electrons, and so on

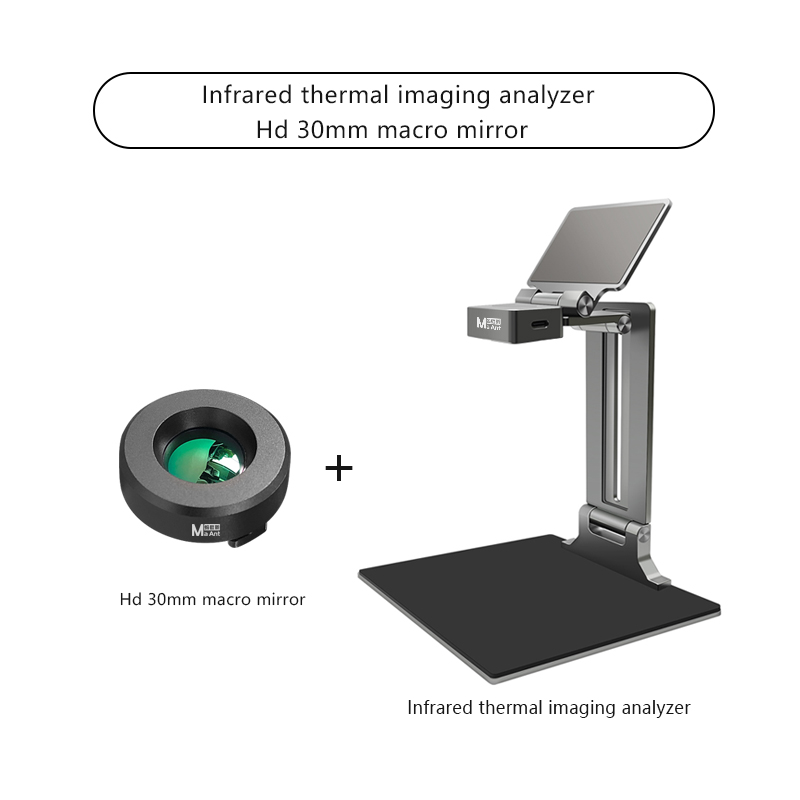

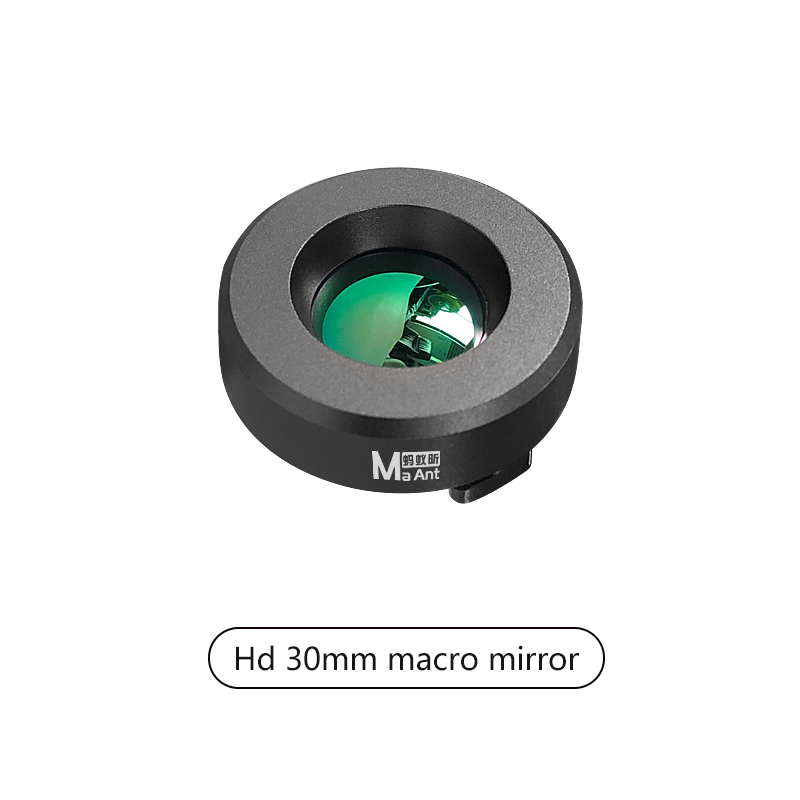

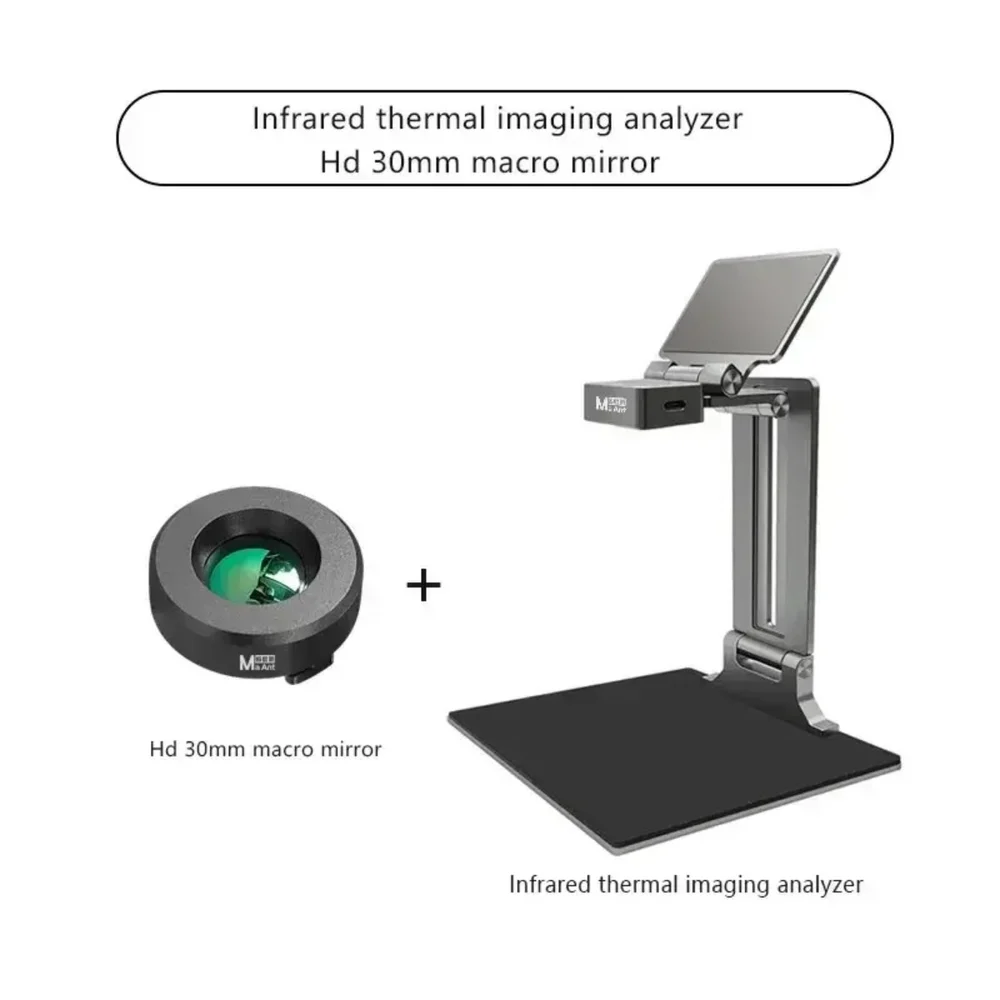

  • Optional HD 30mm macro mirror, the local details of the item can be enlarged to easily detect the motherboard, abnormal areas, quickly troubleshoot problems

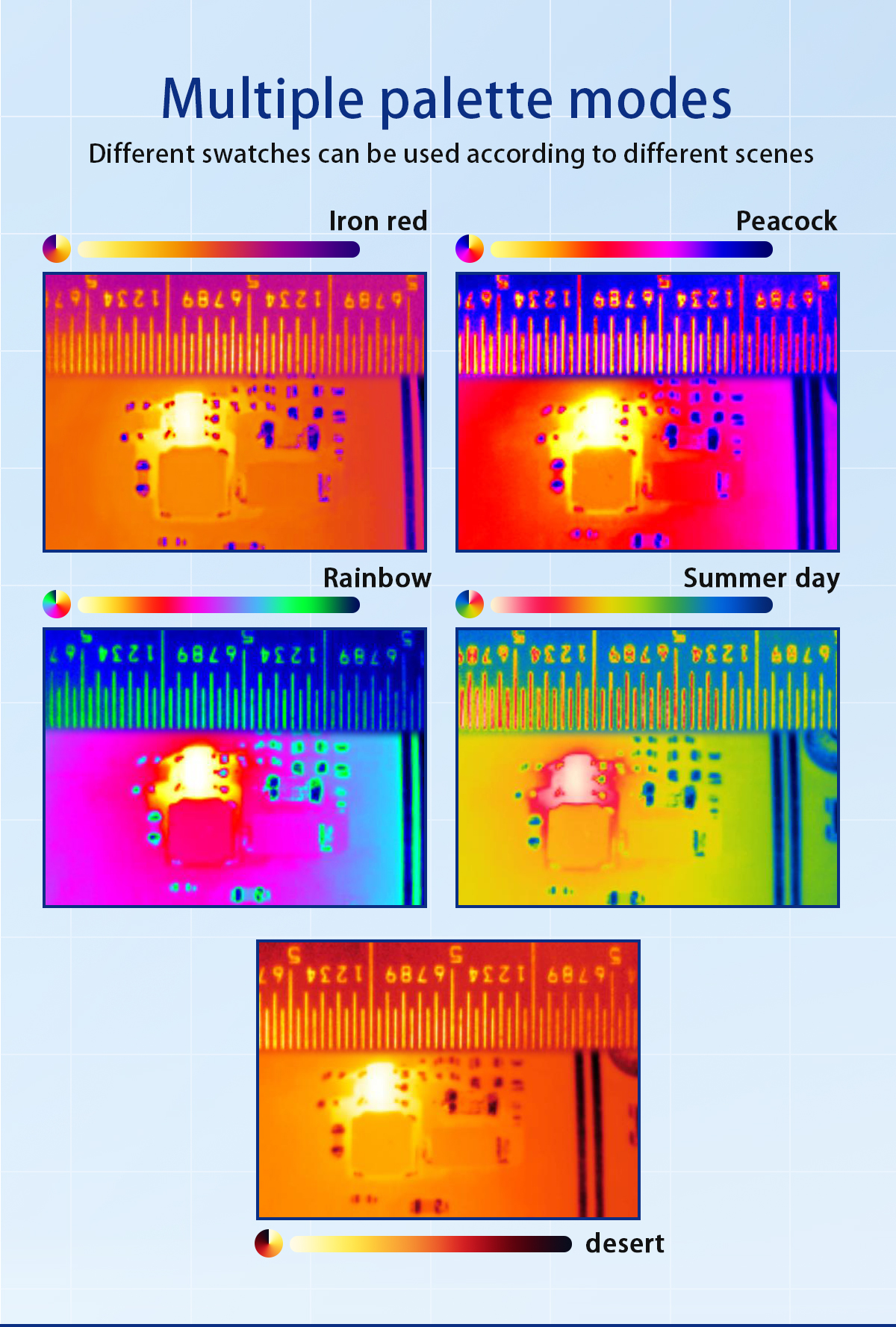

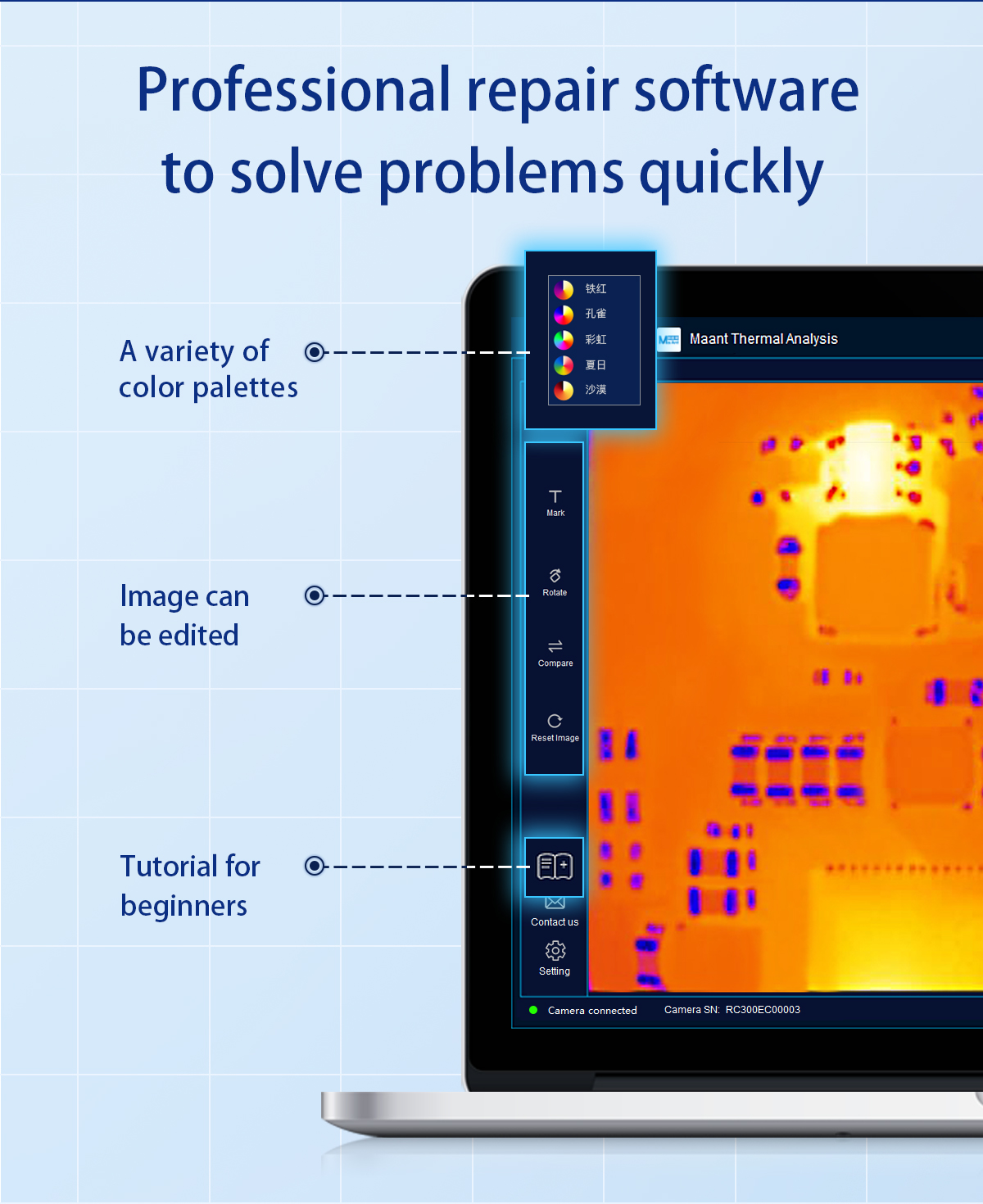

  • Professional repair software to solve problems quickly, multiple palette modes, and different swatches can be used according to different scenes

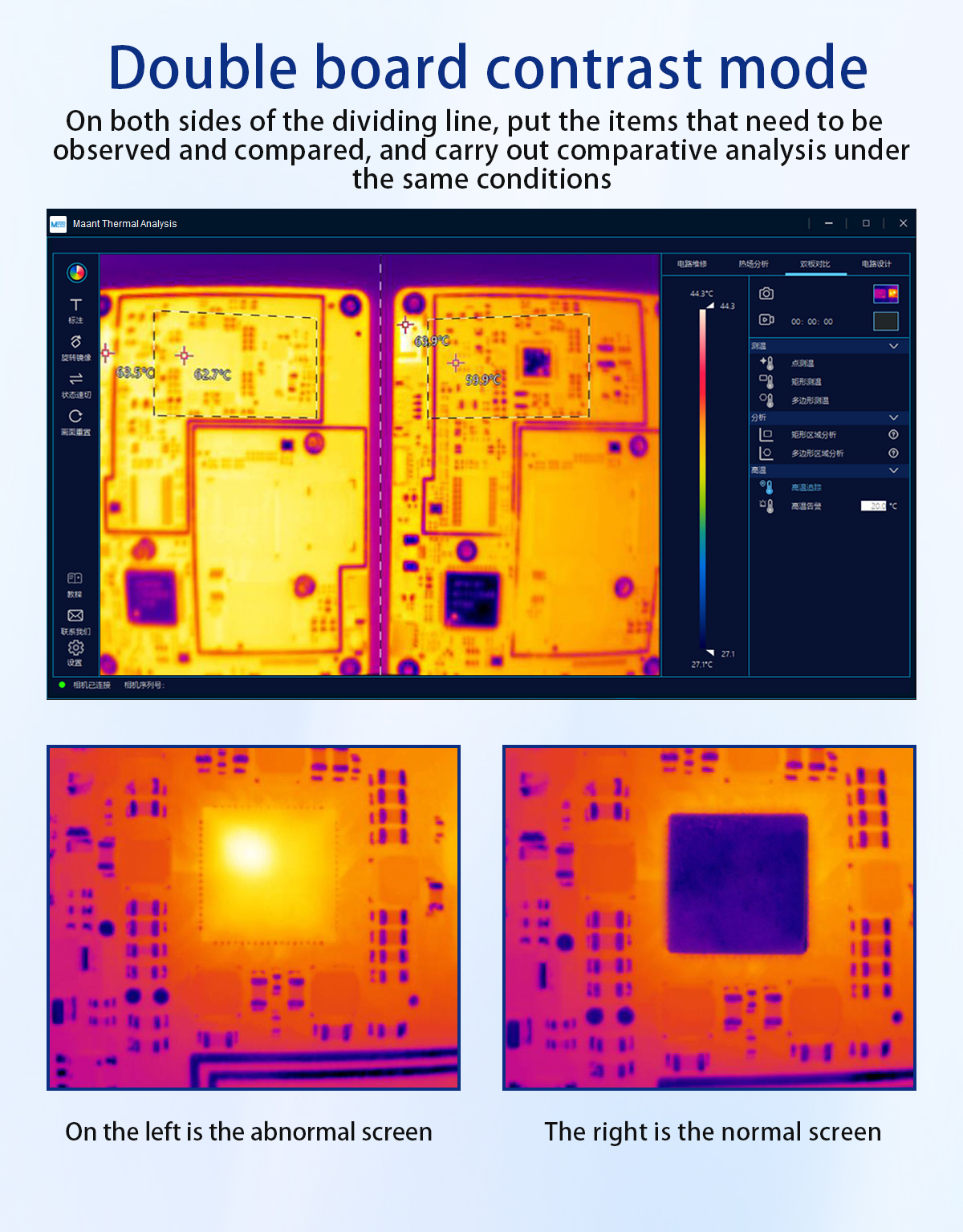

  • Double board contrast mode, on both sides of the dividing line, put the items that need to be observed and compared and carry out comparative analysis under the same conditions

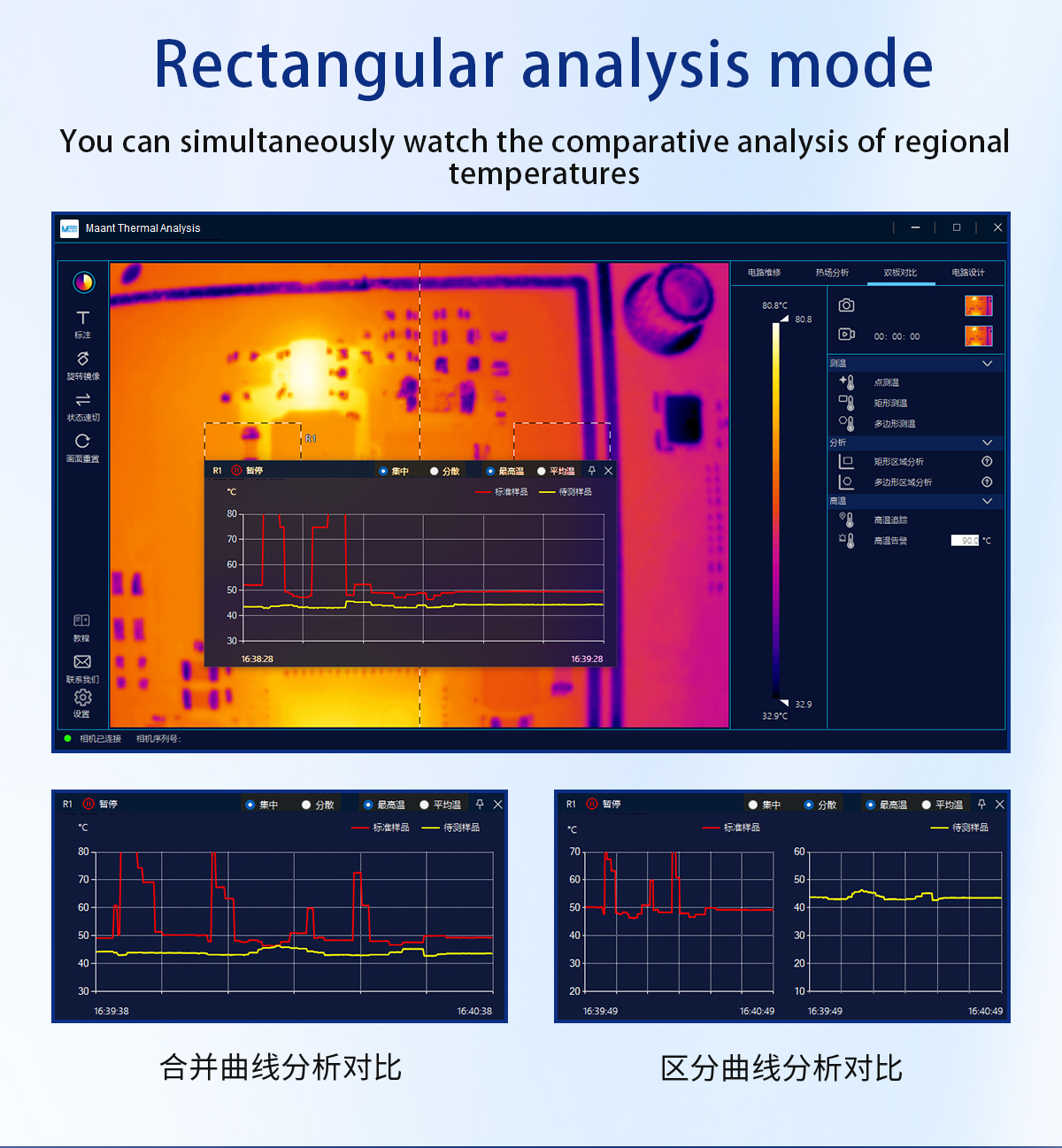

  • In rectangular analysis mode, you can simultaneously watch the comparative analysis of regional temperatures

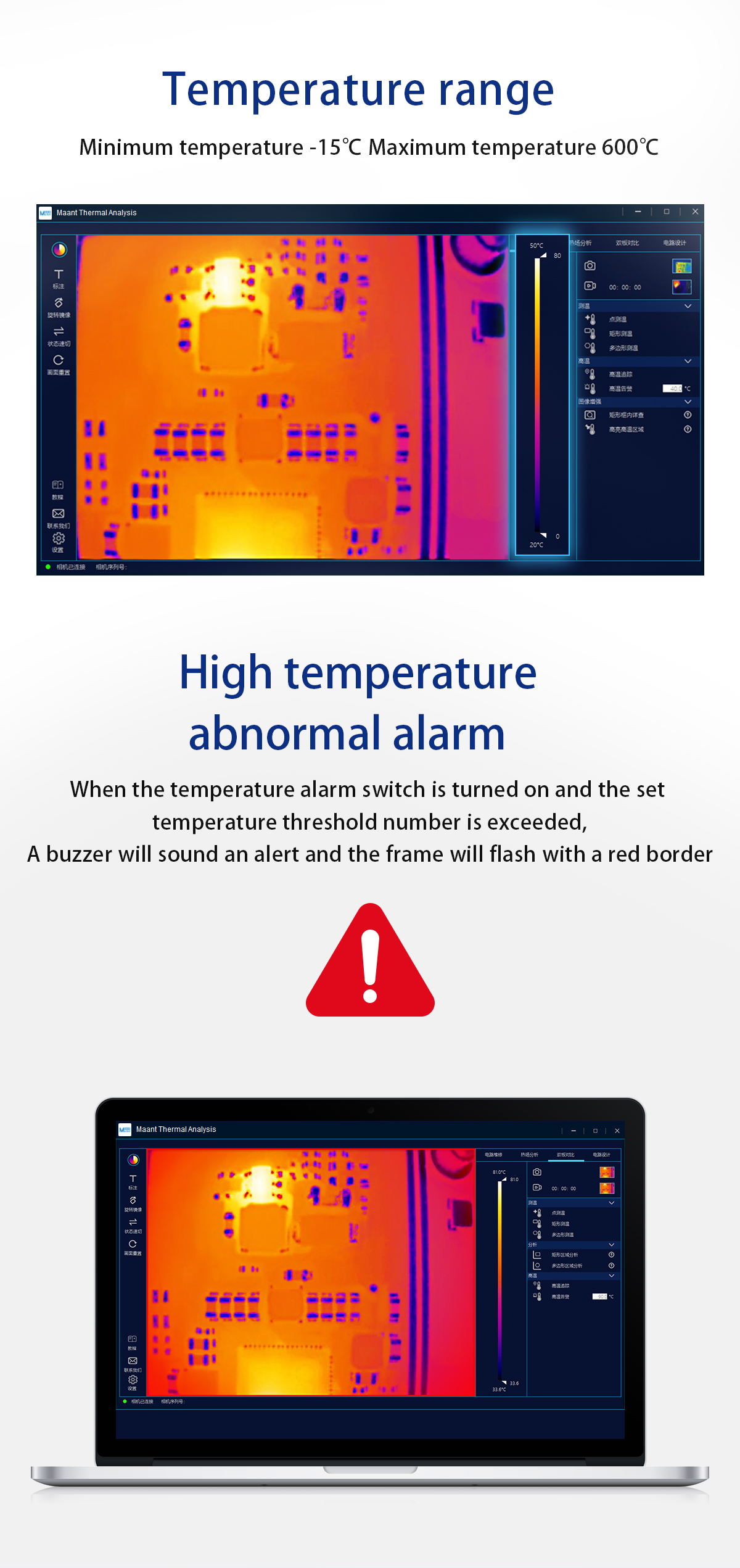

  • Temperature range: Minimum temperature: -15?; Maximum temperature: 600?
  • High-temperature abnormal alarm, when the temperature alarm switch is turned on and the set the temperature threshold number is exceeded, a buzzer will sound an alert and the frame will flash with a red border

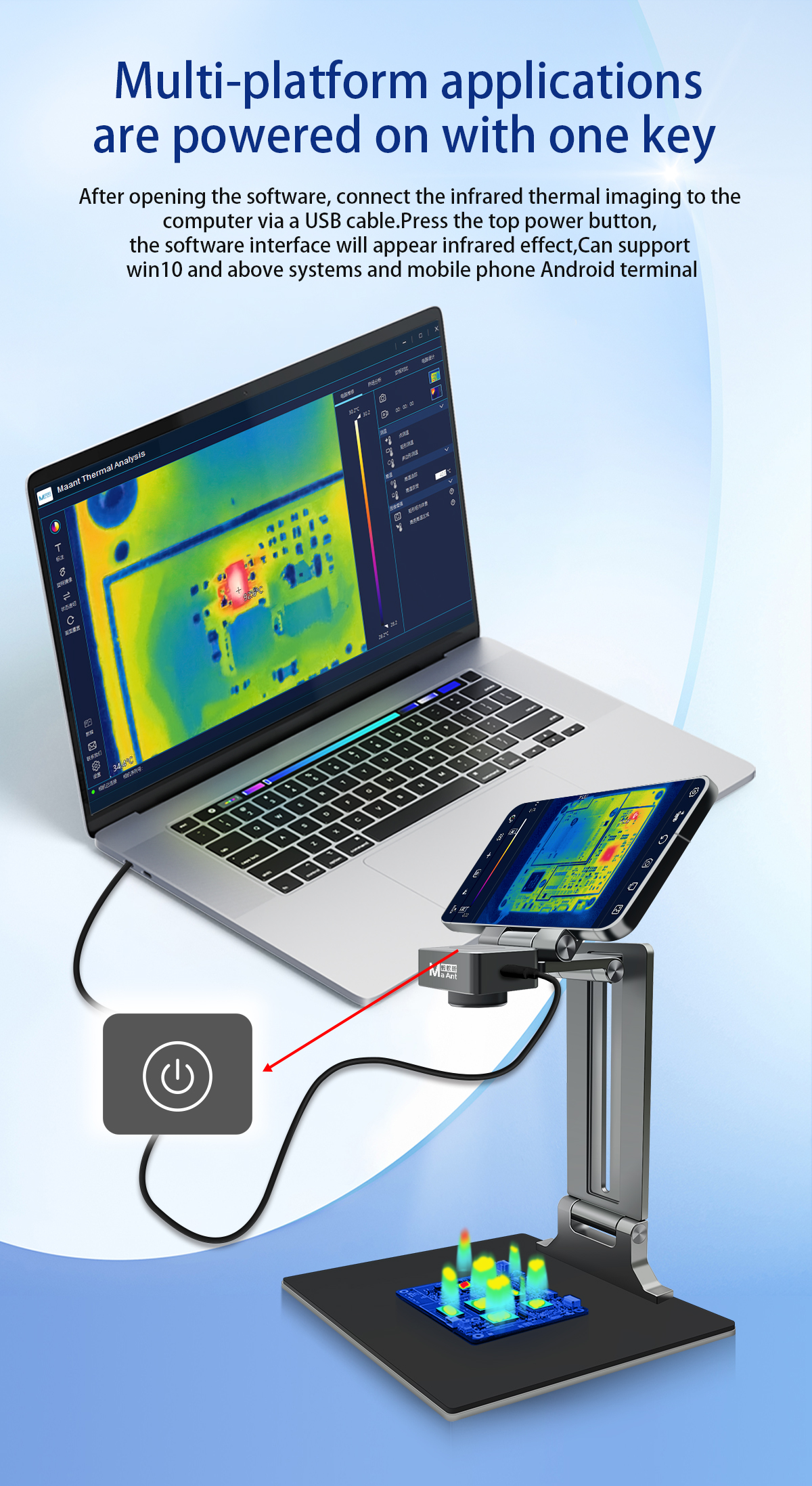

  • Multi-platform applications are powered on with one key, after opening the software, connect the infrared thermal imaging to the computer via a USB cable
  • Press the top power button, and the software interface will appear infrared effect, can support Win10 and above systems and mobile phone Android terminal

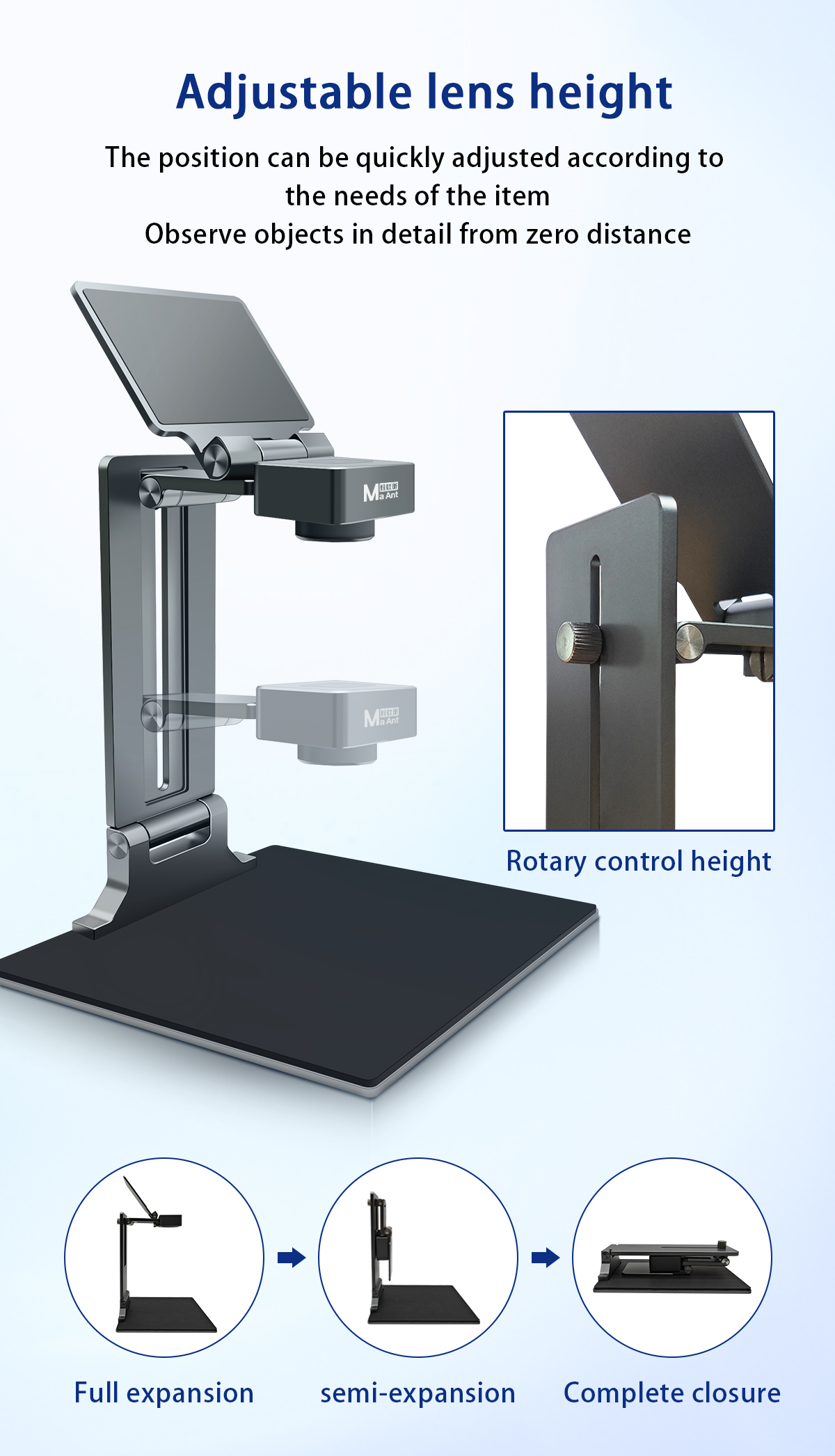

  • Adjustable lens height, the position can be quickly adjusted according to the needs of the item, observe objects in detail from zero distance

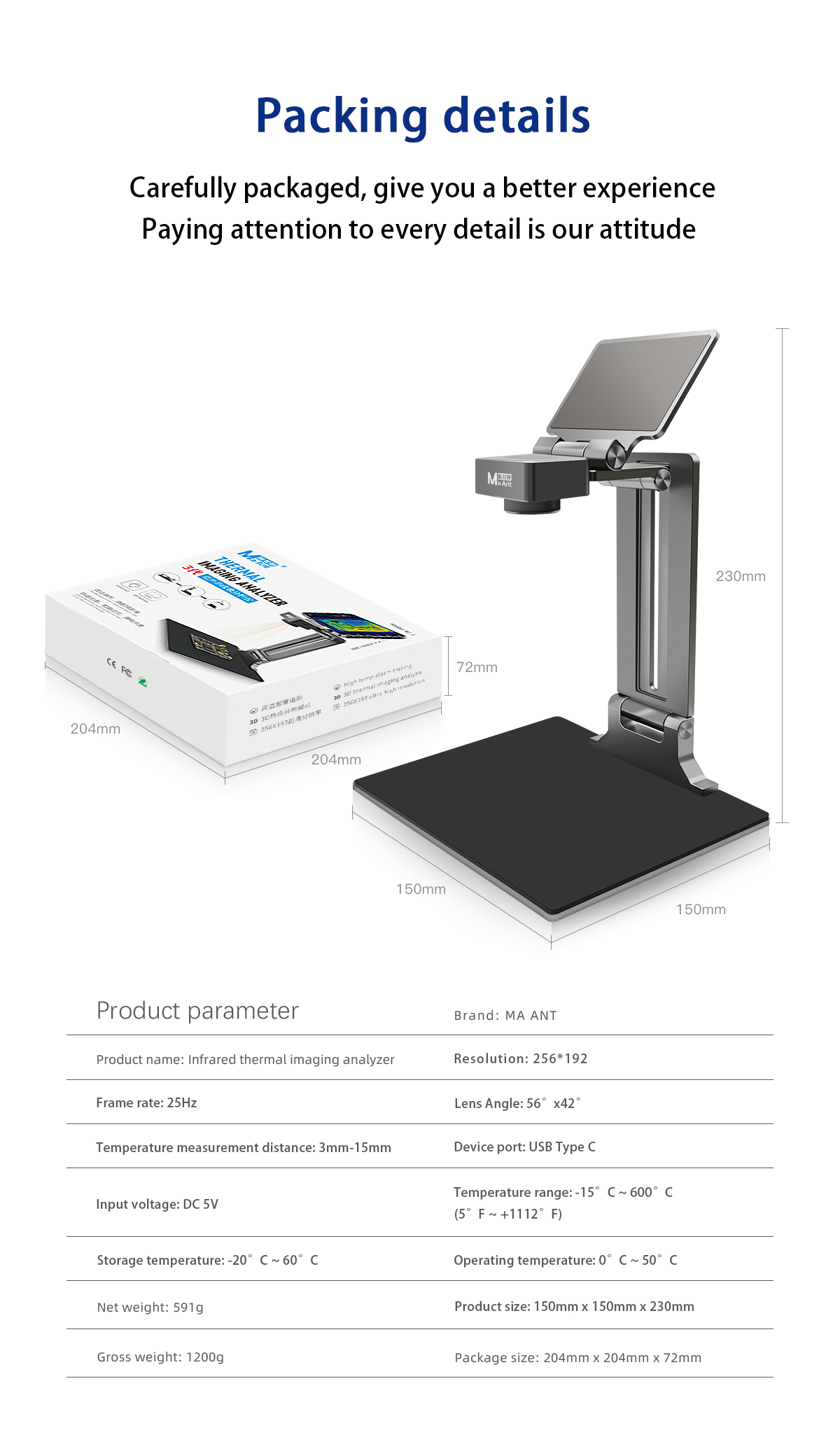

  • Packing details, carefully packaged, gives you a better experience, paying attention to every detail is our attitude
