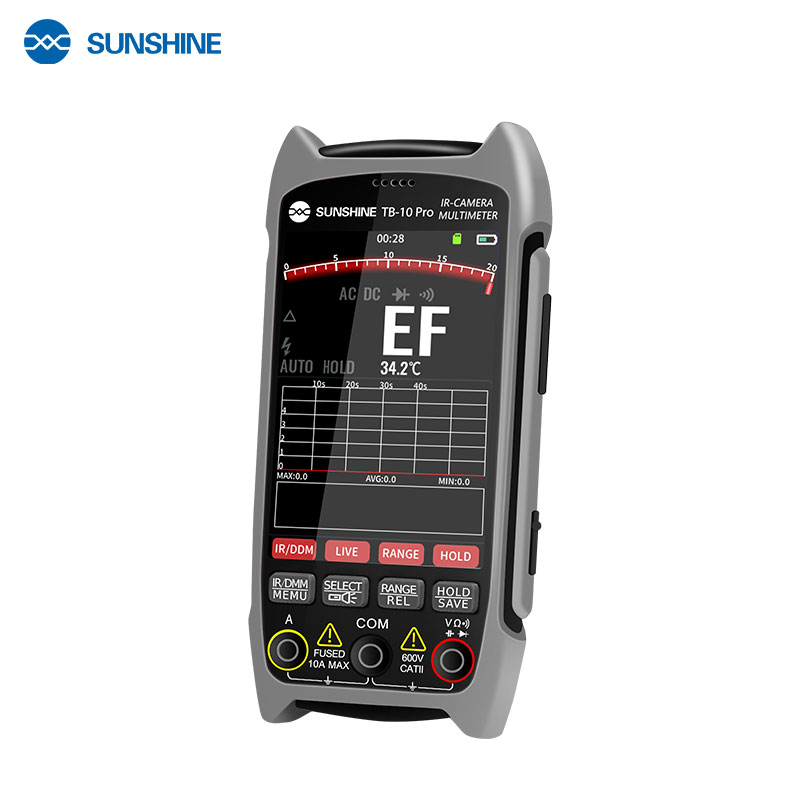

Sunshine TB-10 Pro Handheld Infrared Thermal Imager + Multimeter for PCB Repair & Temp Measurement

Features:-

• TB-10 Pro infrared thermal imaging, 256*192 HD resolution, multi-language settings, handheld design, easy to carry
• Full-screen Temperature Measurement and High-definition Positioning: 256*192 high-definition resolution, can detect 49152 points at the same time, visualize thermal images, locate temperature measurement points at one time, and quickly detect faults
• Intelligent And Precise Automatic Range: Accurate measurement, a wide range of uses, with functions required for maintenance such as capacitance, diode, resistance, current, voltage, on/off, etc
• 15 Color Palette Modes: More palette mode options, quick key to switch
• Flexible Macro: Slide the macro lens left and right to switch freely, and you can see 1mm*1mm tiny details in the macro state, suitable for mobile phone repair, PCB motherboard detection, electronic research and development, and other application scenarios
• Handheld Design, Easy to Carry: It is both an infrared thermal imager and a multimeter, small in size, light in weight, and easy to carry

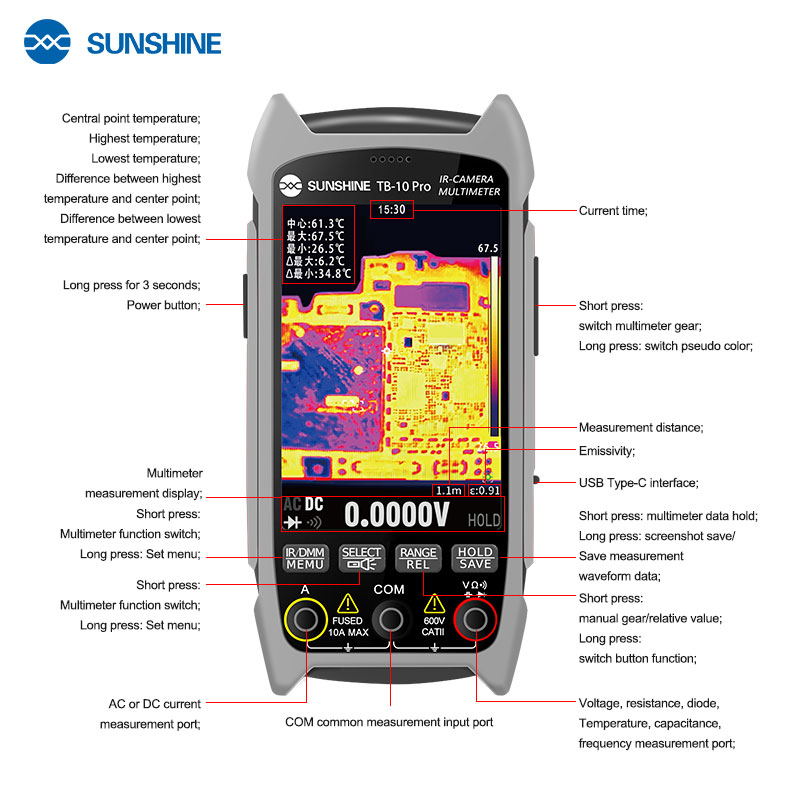

• Thermal Imaging Multimeter 2-in-1: Creative design of shortcut keys long/short, realizing more functional operations, small body with more comprehensive functions
• Multi-language settings: Multi-language settings include Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, Polish, etc.
• Live wire identification measurement: In multimeter mode, switch to the LIVE position to distinguish the neutral wire and the live wire
• Non-contact AC voltage sensing NCV: Sensitive sensing, interface prompts and accompanied by a beep, away from the risk of electric shock
• USB fast image reading: Data reproduction with computer, quick viewing of stored images, data reproduction, USB charging
• Type-C charging: Built-in removable 18650 lithium battery, long-lasting battery life, convenient and durable


Specification:-
Brand: SUNSHINE
Name: Handheld Thermal Imager
Model: TB-10 Pro

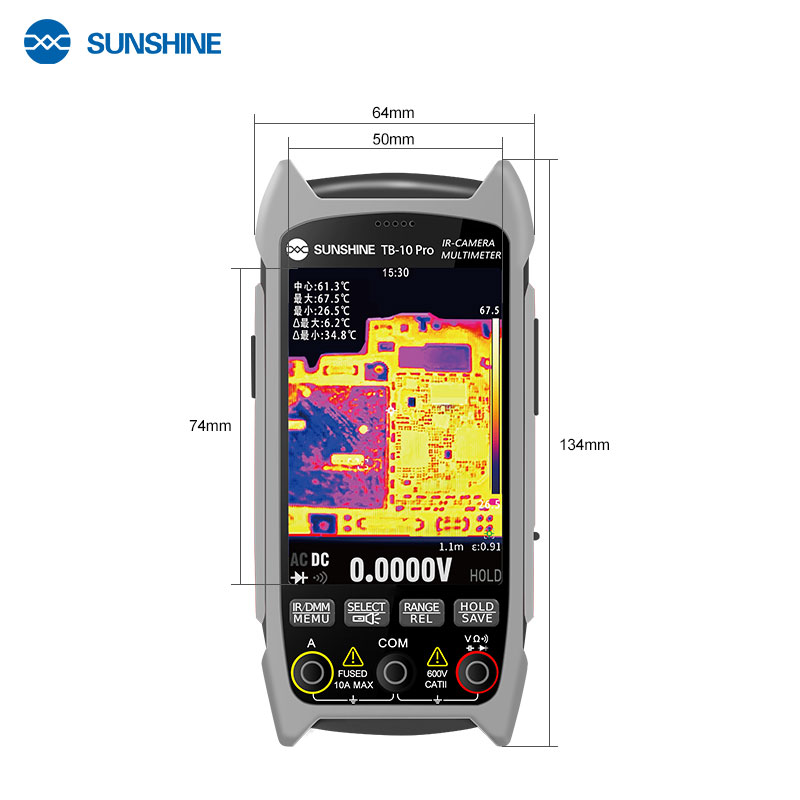

Product size: 134*64*28mm
Packing size: 146*175*55mm
Net weight: 198g
Display screen: 3.5-inch 320*480 resolution
USB interface: Type-C USB
TF card supports maximum capacity: 64G
Image format: BMP file
Battery: Removable 18650 lithium battery
Storage temperature: -20~60? (-4~140?)
Operating temperature: 0~50? (32~122?)
Operating humidity: <85%RH (Non-condensing)
Sensor: Uncooled vanadium oxide (VOx)
Image capture frequency: 25Hz
Module output pixels: 256*192
Display image resolution: 427*320
Field of view (FOV): 50.0°(H)*37.2°(V)
Emissivity: 0.1~0.99 adjustable, default 0.95
Temperature range: -20? to +550?
Mode: Automatic gain
Color plate: White heat/black heat/fusion 1/rainbow/fusion 2/iron red 1/iron red 2/dark brown/color 1/color 2/ice fire/rain/green heat/red heat/dark blue
Temperature measurement error: ±2? or ±2?
Display temperature accuracy: 0.1?/0.1?
DC maximum input voltage: 1000V
AC maximum input voltage: 750V
Maximum current measurement: 10A
Resistance maximum measurement value: 99.99MΩ
Capacitance maximum measurement value: 199.99mF
Duty cycle measurement range: 0.1%~99.9%
Diode measurement range: OV~3V
Maximum resistance value of continuity detection: 199.99Ω
Display digital: 19999 words updated about 3 times per second

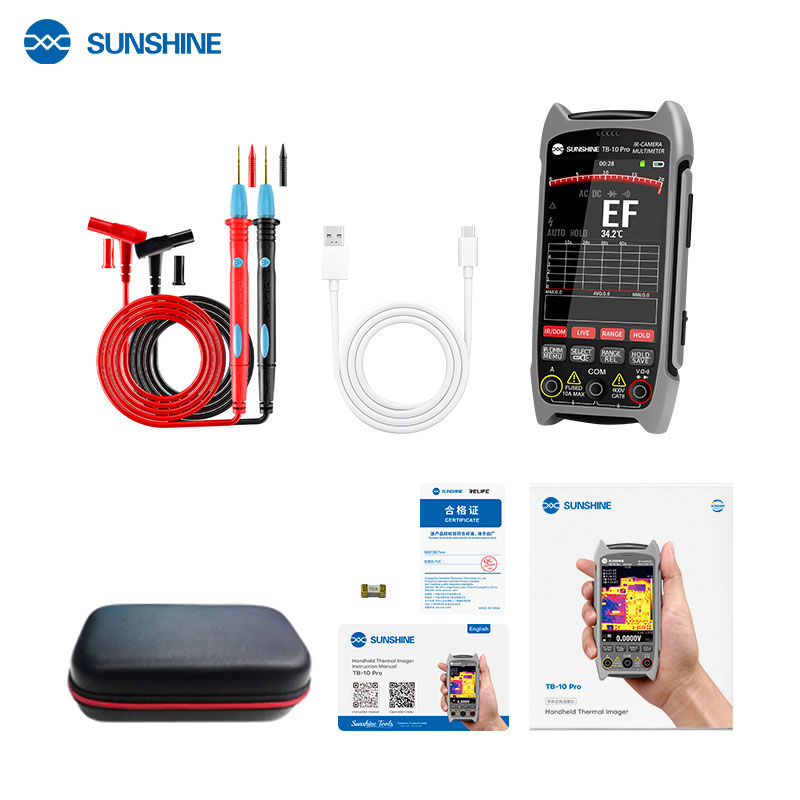

Package includes:-
1 x Handheld Thermal Imager Multimeter (without TF Card)
1 x Type-C Cable
1 x Test Lead
1 x Fuse
