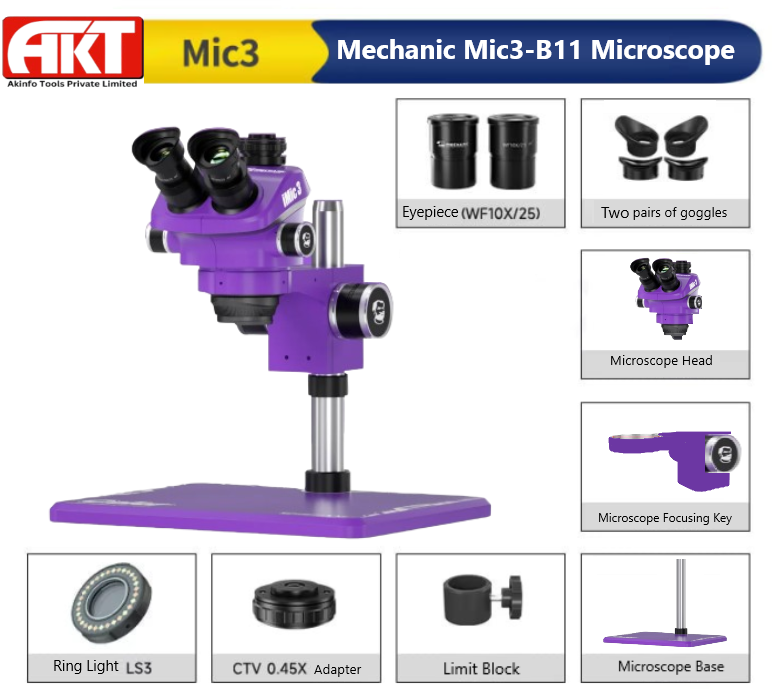

Mechanic Mic3-B11 Microscope (Purple)

Zoom ratio: 1:7.1

Optional eyepiece: WF10 X22MM / WF15 X15MM / WF20 X10MM

Not adjustable eyepiece: Standard equipment: WF10X25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers

Observation head: 45° inclination, 360° rotation, interpupillary distance 54~76mm bilateral vision adjustment±5 diopters

Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus

Auxiliary objective: 0.5X, 0.7X, 1.5X, 2X are available as options

Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom

Working distance: 100mm

Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm

Work platform: 320*260mm

Packing Details :-

• 1 Rod
• 1 B11 Base
• 1 CTV lens
• 1 Ring Light
• 1 MIC3 Head
• 1 Limits Block
• 1 0.5x Objective Lance
• 1 Extra protective Lance
• 2 Eyepiece Lenses WF/10X/25
• 1 Microscope Dust Protective Cover
• 1 Pair (MOS028)Horn-Shaped Eye Mask
• 1 Pair (MOS038)Slant Horn-Shaped Eye Mask
