SOPTOP 71 Pro Max 6.7-45X Black Trinocular Microscope for Phone Repair

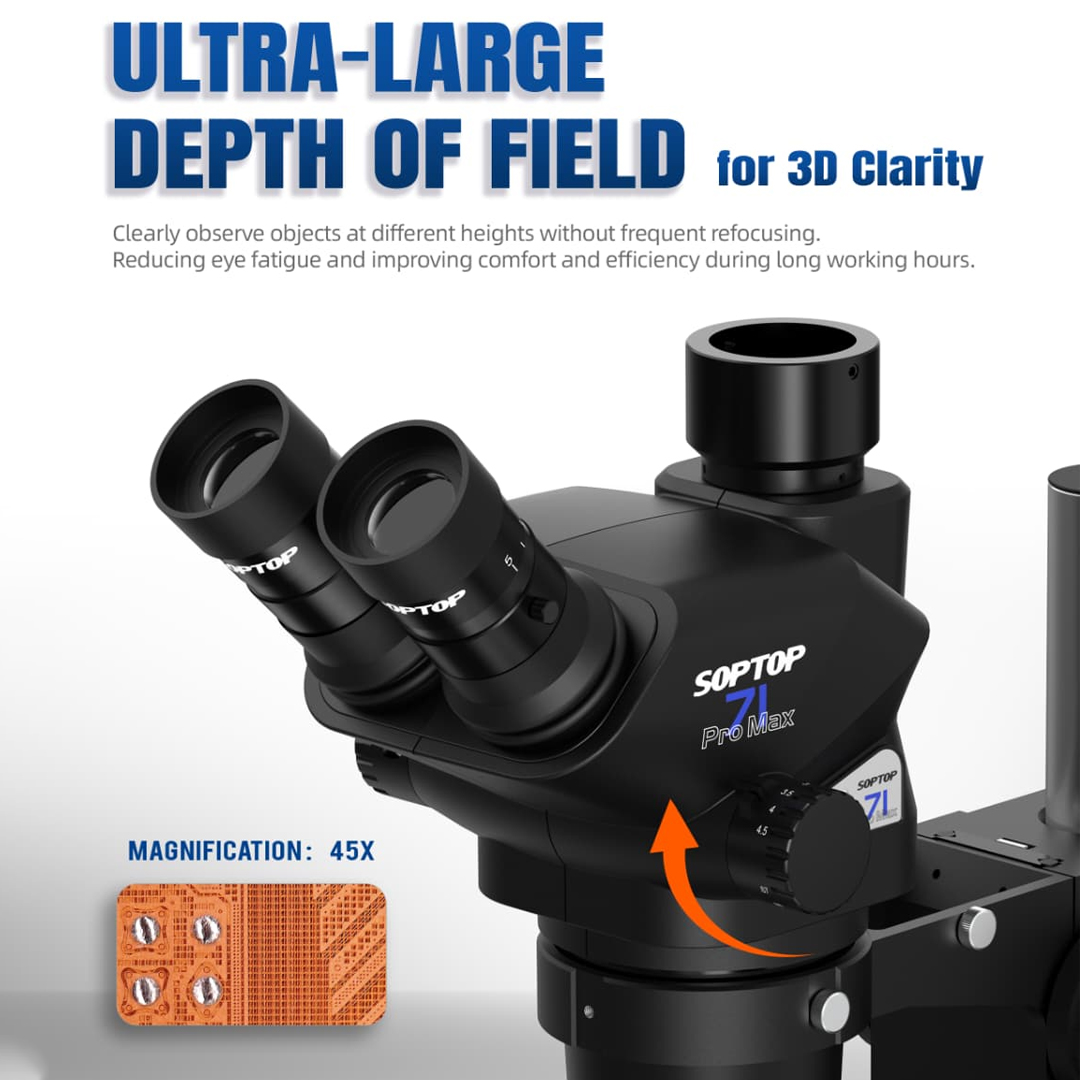

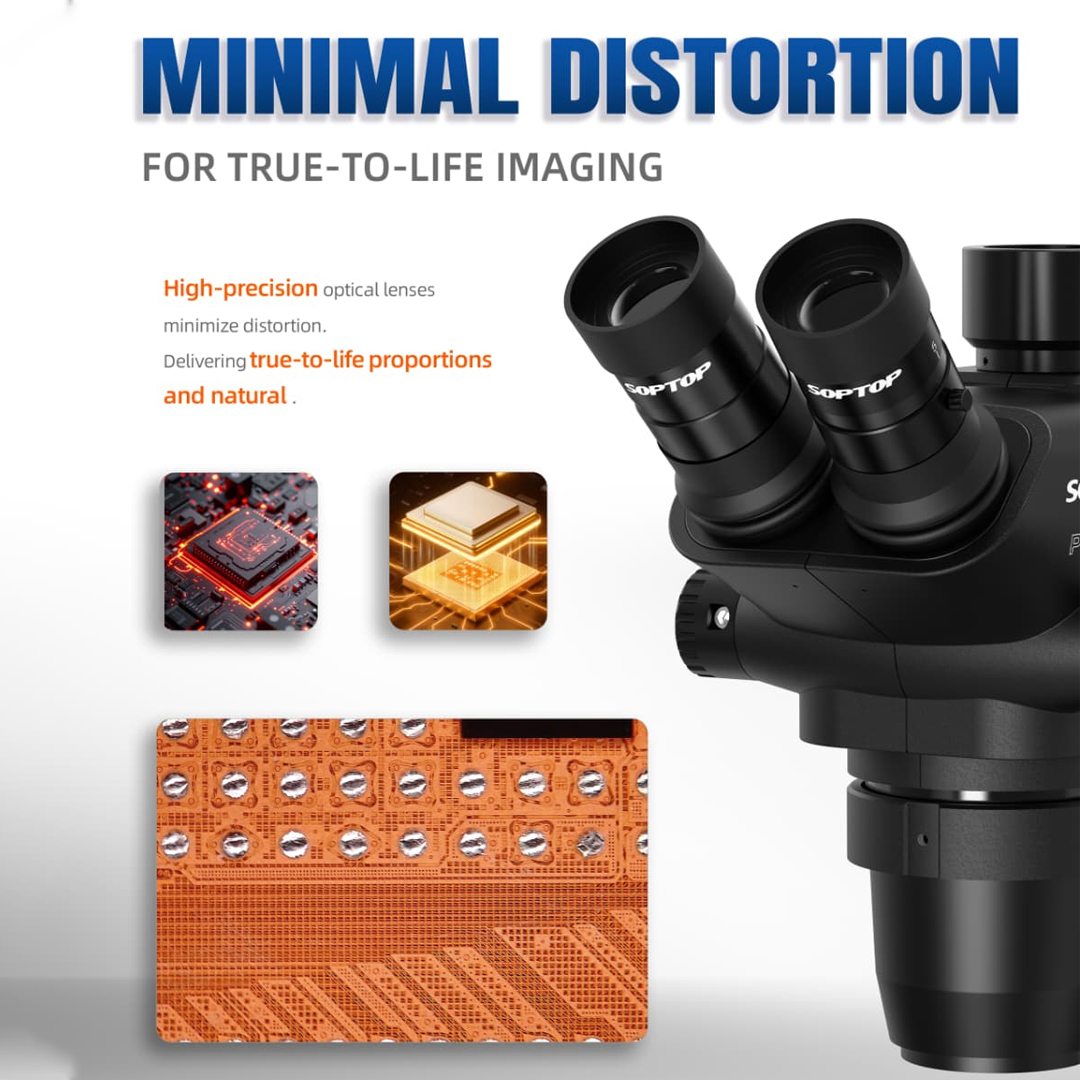

The SOPTOP 71 Pro Max is a professional-grade, high-definition trinocular stereo microscope specifically engineered for precision electronics repair, such as micro-soldering, PCB inspection, and BGA chip diagnostics. It utilizes a Greenough optical system to provide high-contrast, 3D imagery with minimal distortion.

Below is the detailed product specification and feature breakdown:

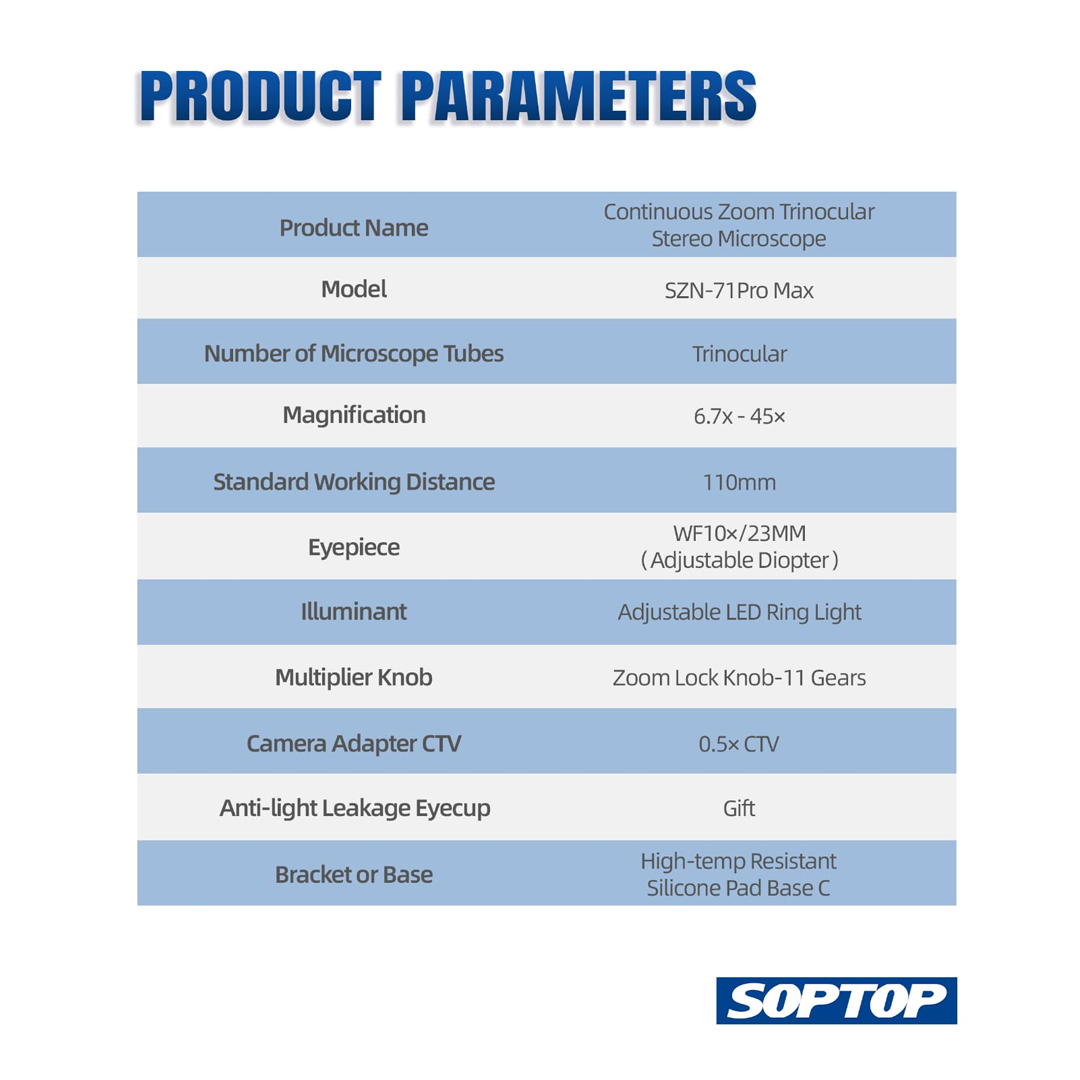

SOPTOP 71 Pro Max Technical Specifications

Key Features for Phone Repair

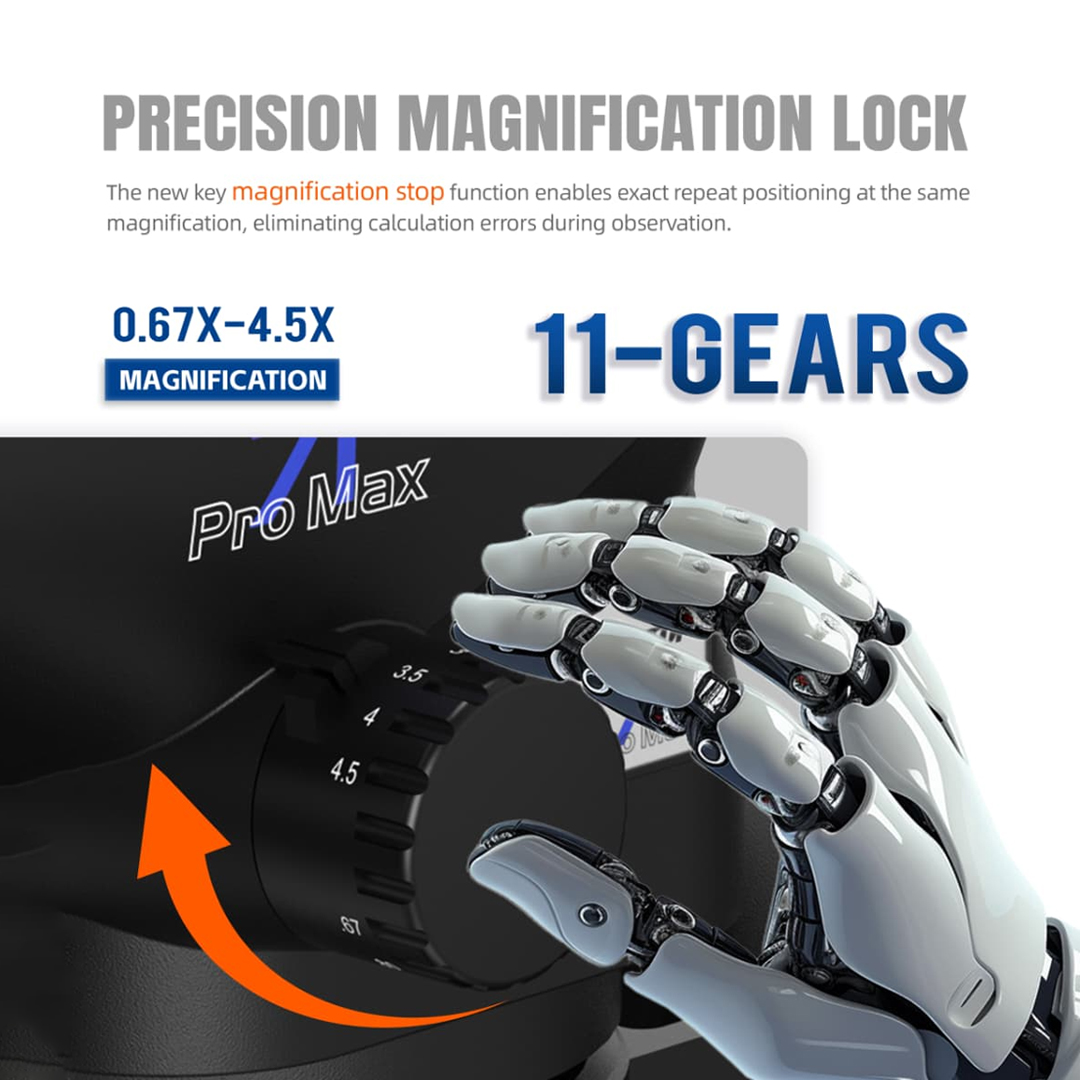

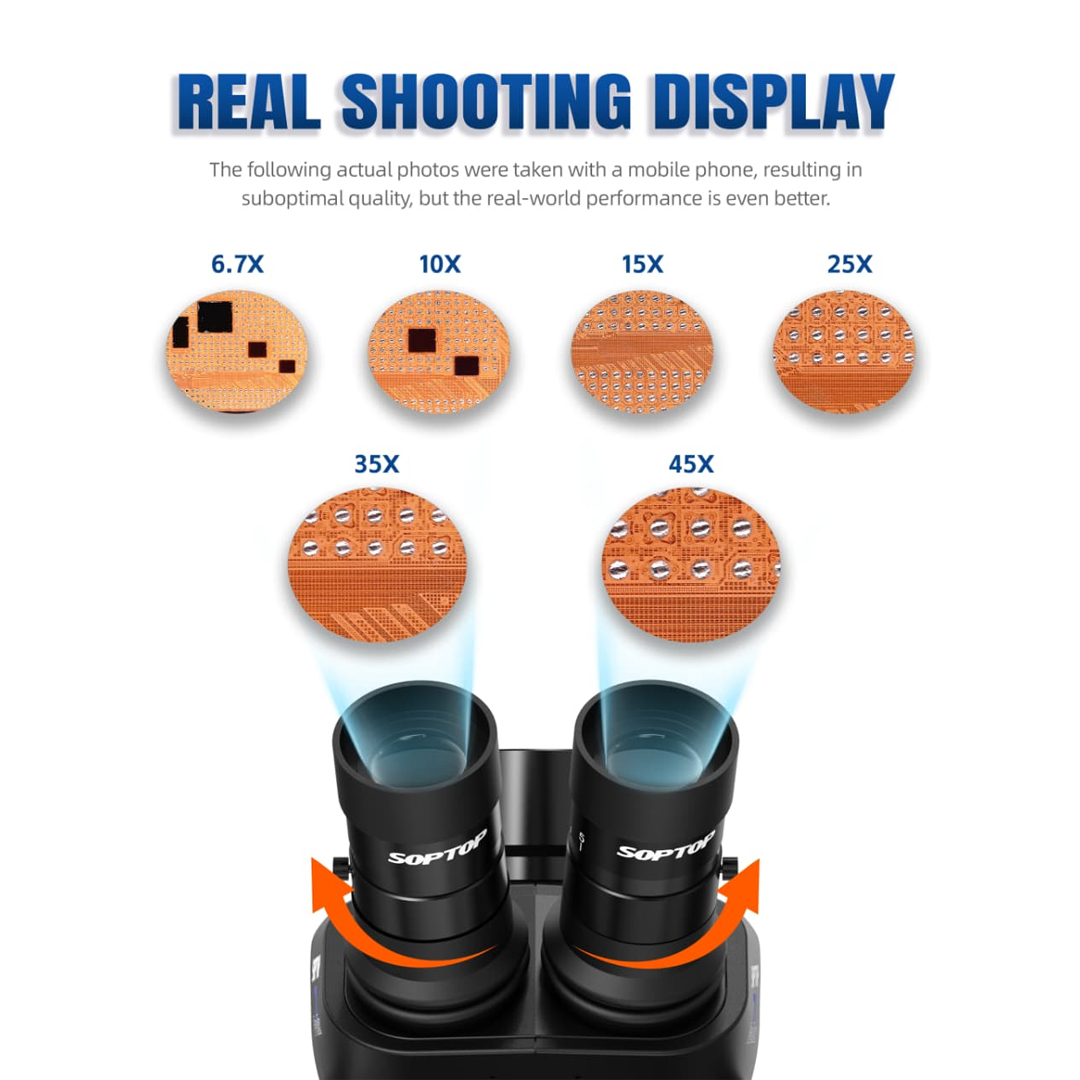

• Continuous Zoom & Lock: The 6.7X to 45X zoom range allows technicians to quickly switch between broad inspections of a motherboard and highly magnified views of specific IC pins. The magnification lock ensures consistent settings during repetitive tasks.

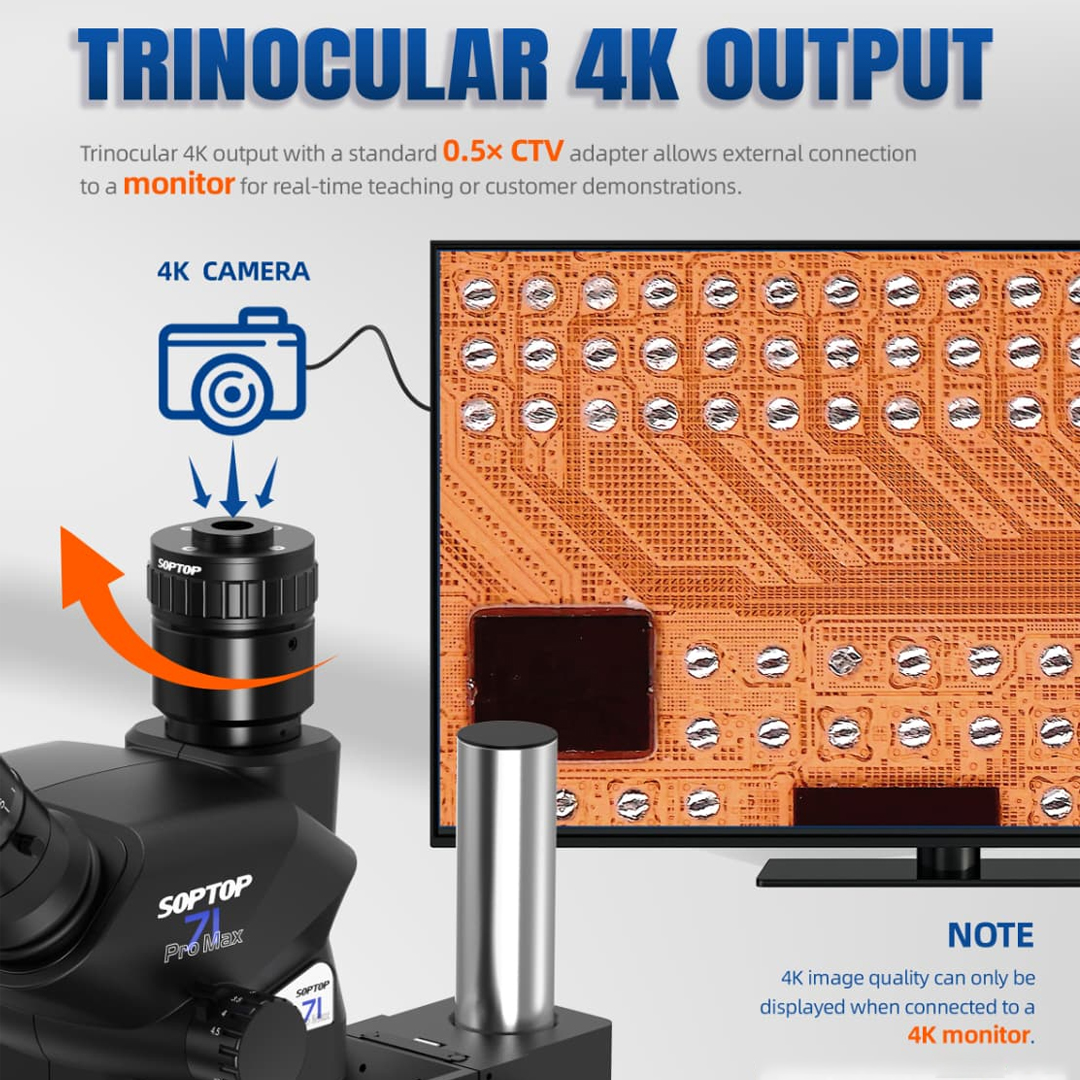

• True Trinocular Vision: The system supports a 4K camera attachment via the 0.5X CTV port. This allows the user to look through the eyepieces while simultaneously outputting the live video to a monitor for training, documentation, or ergonomic viewing.

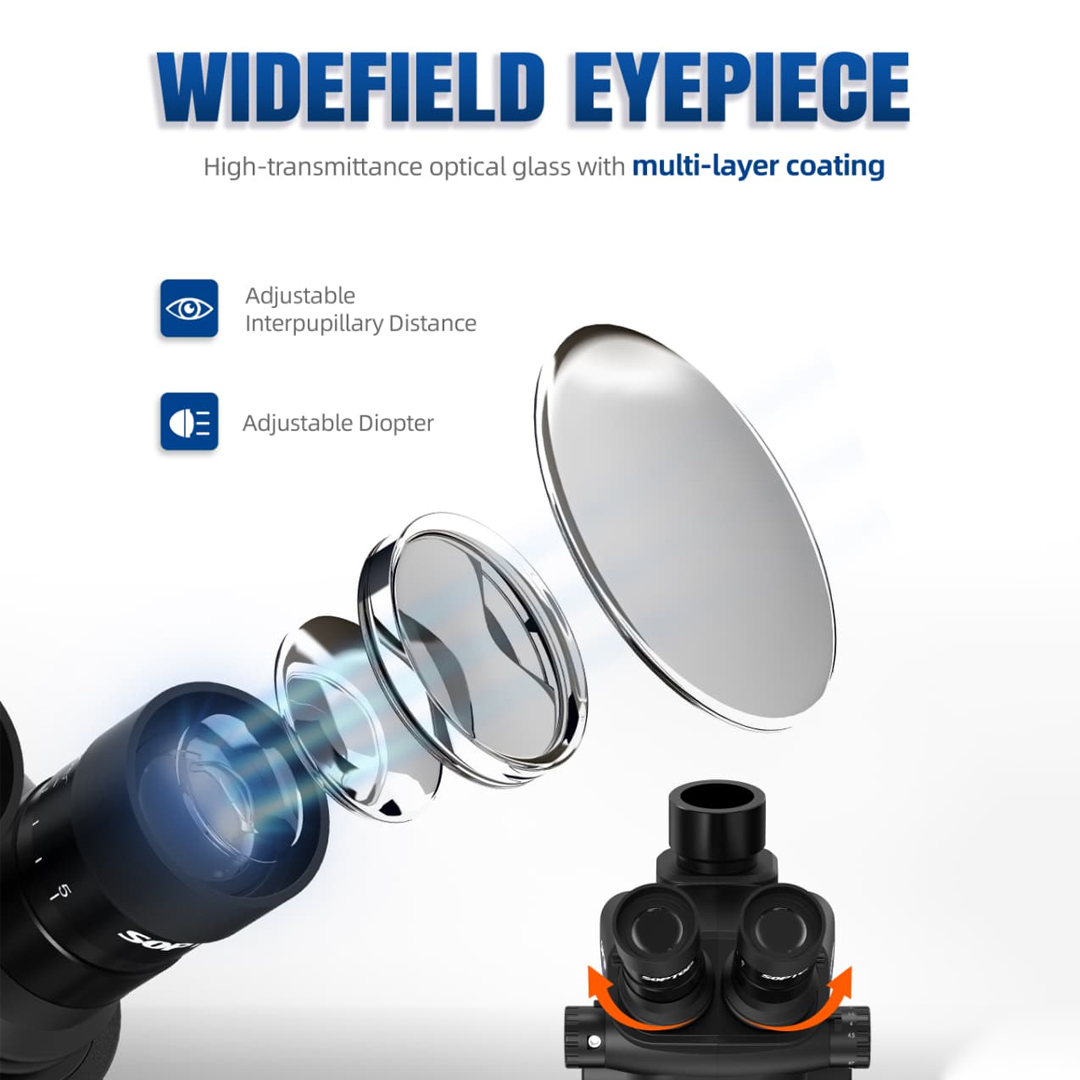

• Ergonomic Design: Specifically built to reduce "microscope dizziness" and eye fatigue during long repair sessions. It features a wide field of view and high-eyepoint design, which is beneficial for technicians who may wear glasses.

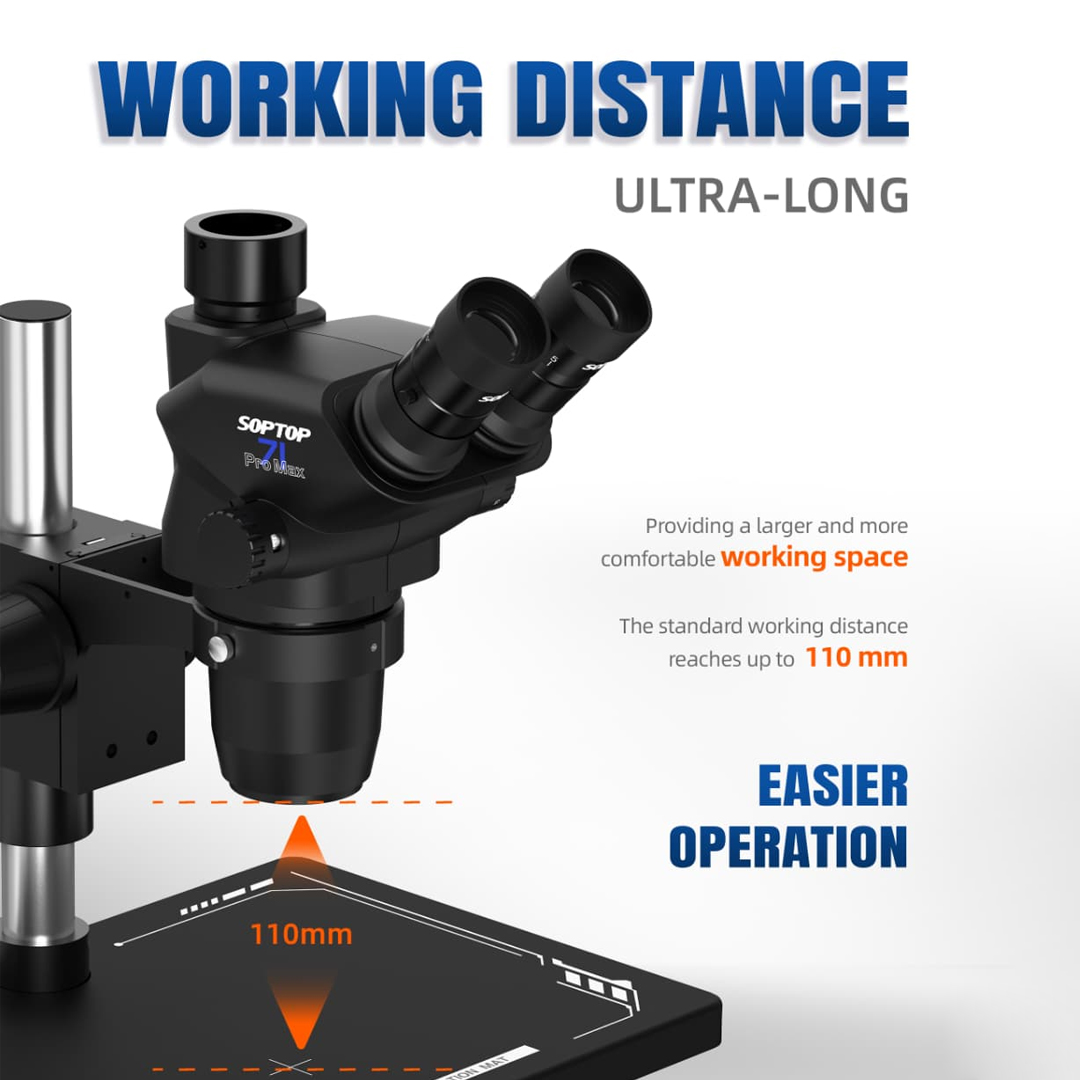

• Extended Working Space: The 110mm working distance is critical for phone repair. It provides enough clearance for technicians to maneuver hot-air rework stations, soldering irons, and tweezers comfortably beneath the lens.

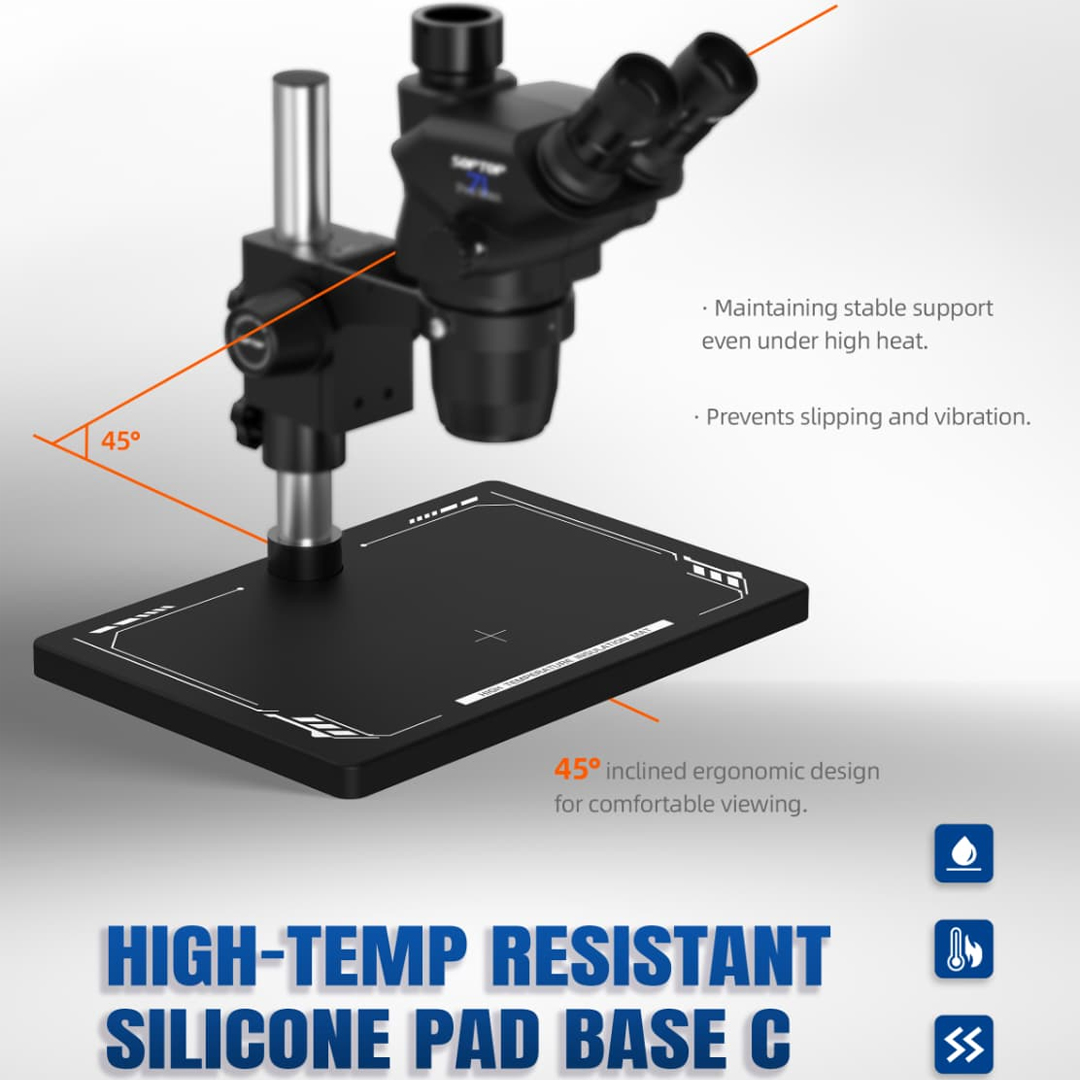

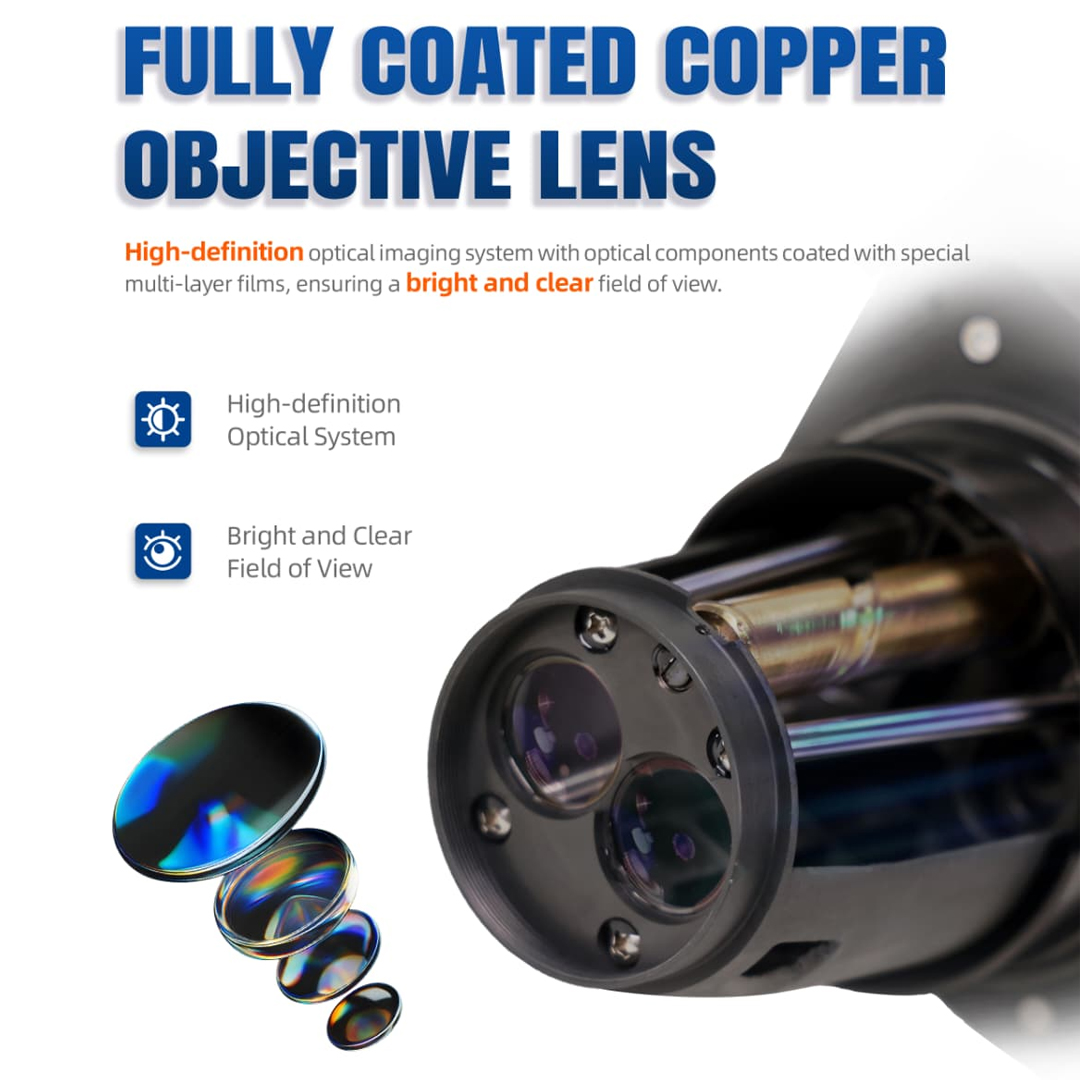

• Industrial Durability: Designed for a busy workbench, the microscope is often paired with a heat-resistant silicone base and features oil-resistant, anti-glare coatings on the optics to ensure longevity in environments exposed to flux and solder fumes.

Typical Applications

• Micro-soldering: Rebuilding trace lines and jumping wires.

• BGA/PCB Diagnostics: Inspecting for cracked solder joints, fluid corrosion, and short circuits.

• Documentation: High-resolution video output for social media content or repair tutorials.
