The MECHANIC ROBOT 6560S-B11 is a high-performance binocular stereo microscope engineered specifically for electronics repair, micro-soldering, and industrial quality control. It offers professional-grade optics, a stable B11 base, and a smooth continuous zoom range, making it a staple tool for mobile repair technicians and hardware engineers. Below is the comprehensive product description presented in a structured format. Continuous Zoom Precision: The 0.65X–6.0X continuous zoom objective allows for smooth transitions between magnifications without the need to refocus. This is essential when switching from board-level inspection to point-specific soldering. Large-Format B11 Base: The base provides a stable, wide surface area. This is critical when working with large motherboards, ensuring the microscope remains steady while you manipulate tools or heating equipment. High-Definition Coated Optics: The lens system is engineered to minimize light scattering and chromatic aberration. This results in high-contrast, sharp images that allow you to distinguish even the smallest solder pads or broken traces. Ergonomic Design: Designed for long-duration use, the binocular head is inclined at 45° to provide a natural viewing posture. The high-eyepoint design is also friendly to users who wear prescription glasses. Robust Build Quality: The unit features an all-metal interior, including the zoom gear mechanism. This design ensures that the microscope maintains its calibration even after years of daily, rigorous use in a busy workshop environment. Expandable Functionality: The microscope supports optional auxiliary objective lenses (0.5X, 0.7X, 1.5X, 2.0X), allowing users to customize the working distance or magnification power based on the specific job requirements. The MECHANIC ROBOT 6560S-B11 is designed to bridge the gap between affordability and professional optical precision. By providing a wide field of view, crisp erect images, and a long working distance, it allows technicians to perform complex operations on microscopic components—such as PCB trace repair, BGA reballing, and micro-jumpering—with ease and reduced eye fatigue. Mobile Phone Repair: Analyzing micro-components, repairing connectors, and checking water damage on circuit boards. Industrial Inspection: Quality control for electronic assembly lines and semiconductor manufacturing. Micro-Soldering: Ideal for precision jumper wire installation and chip replacement. Education & Research: Used in technical training centers for electronics and hobbyist laboratories. 1 x Microscope Binocular Head (6560S Series) 1 x B11 Professional Column Base 2 x WF10X/25mm Eyepieces 2 x Protective Silicone Eye Masks 1 x Dust Cover 1 x Installation Manual Keep it Clean: Always use the provided dust cover when the microscope is not in use. Dust on the objective lens can significantly degrade image clarity. Handle with Care: The binocular head is a precision optical instrument. Avoid excessive force when rotating the head or adjusting the zoom. Lens Cleaning: Only use professional-grade lens paper and specialized cleaning solutions. Never use abrasive cloths or household cleaners on the glass elements. Tension Adjustment: If the focus arm feels too loose or too stiff, use the tension adjustment knob on the focusing gear to set it to your preferred resistance.  Overview
Key Features
Specifications
Feature Category
Specification Details
Product Name
MECHANIC ROBOT 6560S-B11
Microscope Type
Binocular Stereo Zoom Microscope

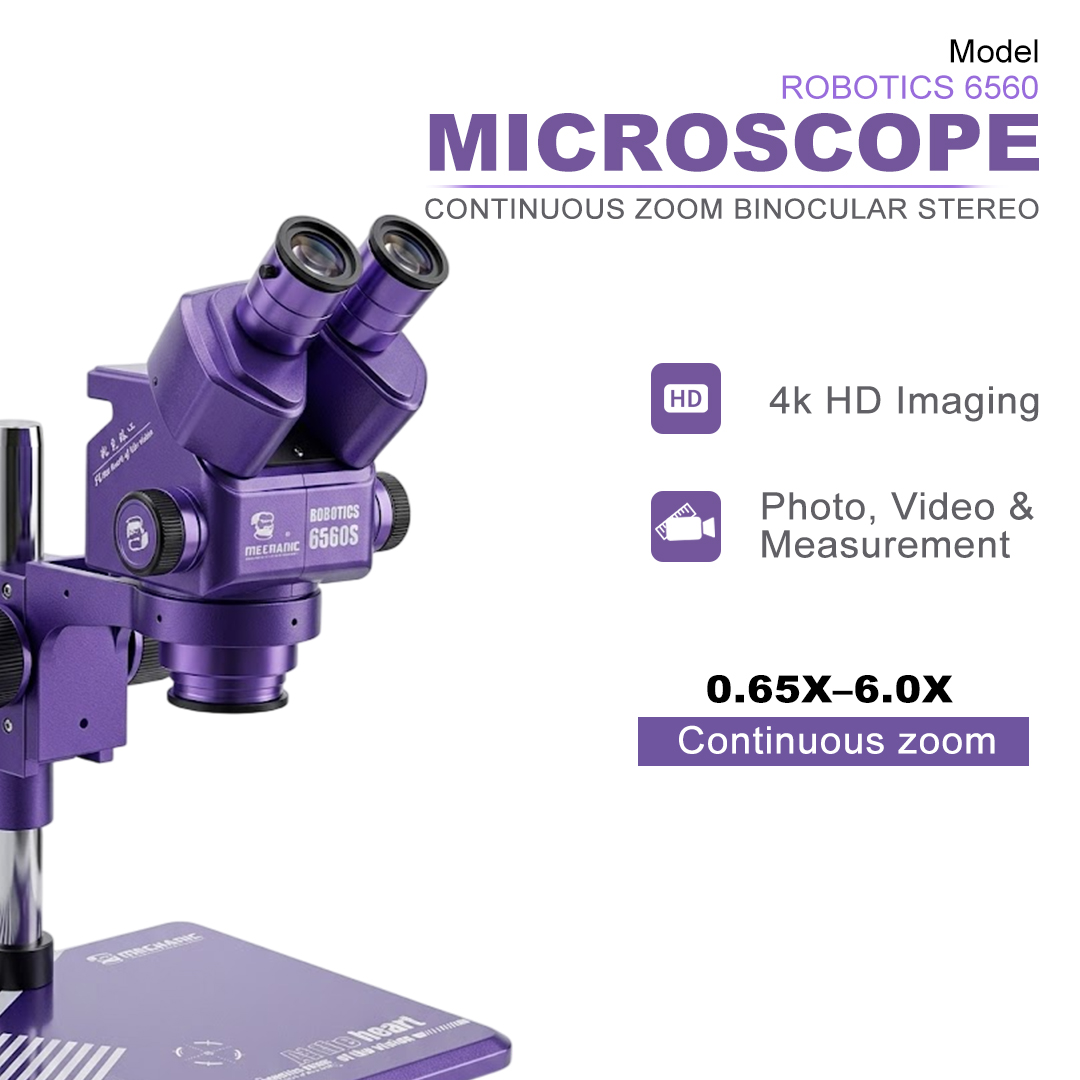

Objective Zoom
0.65X – 6.0X Continuous Zoom
Total Magnification
6.5X – 60X (Standard)

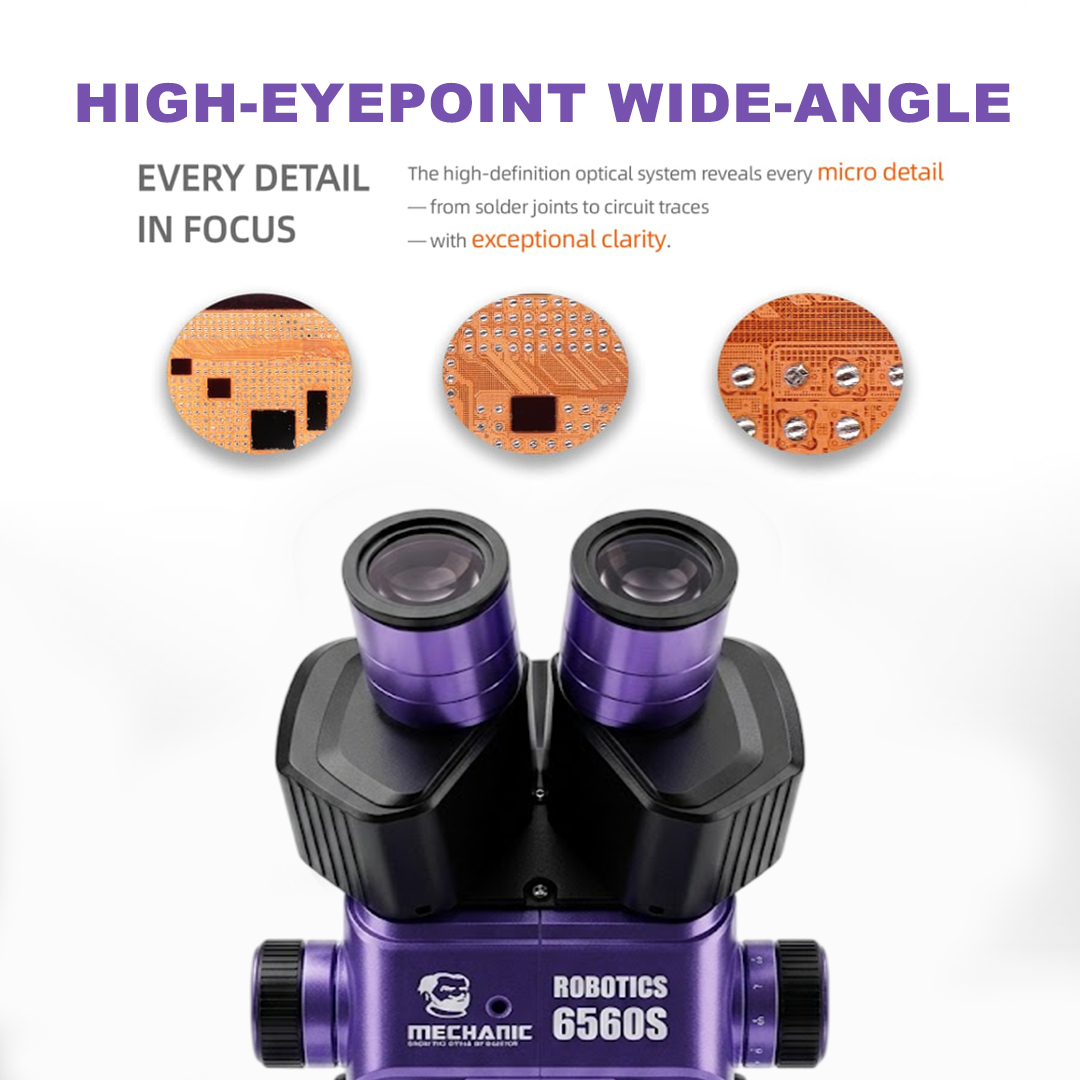

Eyepieces
WF10X / 25mm High-Eyepoint Wide-Angle
Observation Head
45° Inclined, 360° Rotatable
Interpupillary Distance
54mm – 76mm Adjustable

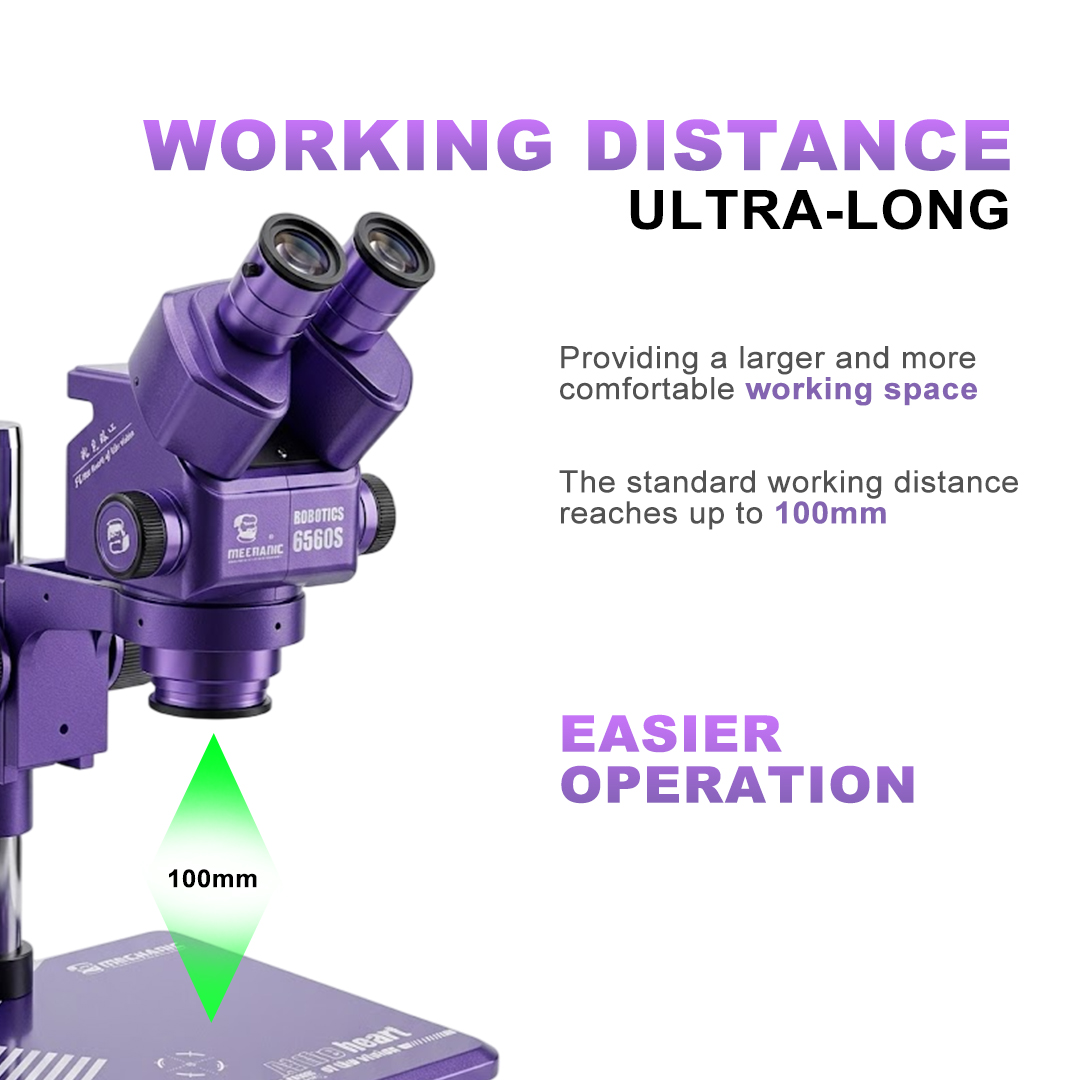

Working Distance
100mm (Extendable to 30mm–287mm with auxiliary lenses)
Diopter Adjustment
±5 Diopters (Bilateral)

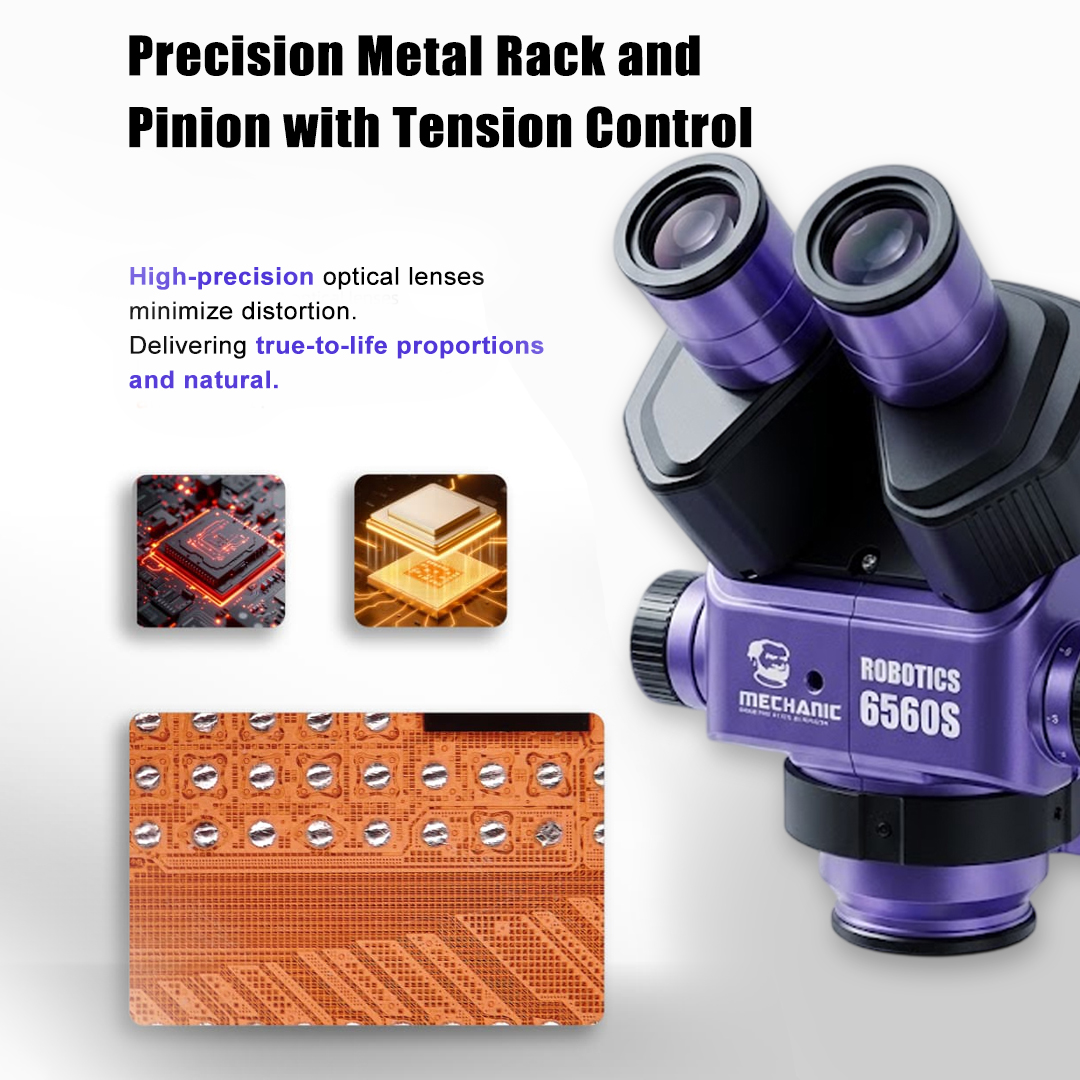

Focusing Bracket
Precision Metal Rack and Pinion with Tension Control
Base Model
B11 Large-format Professional Column Base
Base Dimensions
320mm x 260mm (Large surface area)
Optical Material
Multi-layer Coated High-Definition Optical Glass
Focusing Range
100mm Vertical Travel
Product Overview
Ideal Applications
Package Contents (Standard)
Maintenance & Usage Tips
| Weight |
10 kg |
|---|
