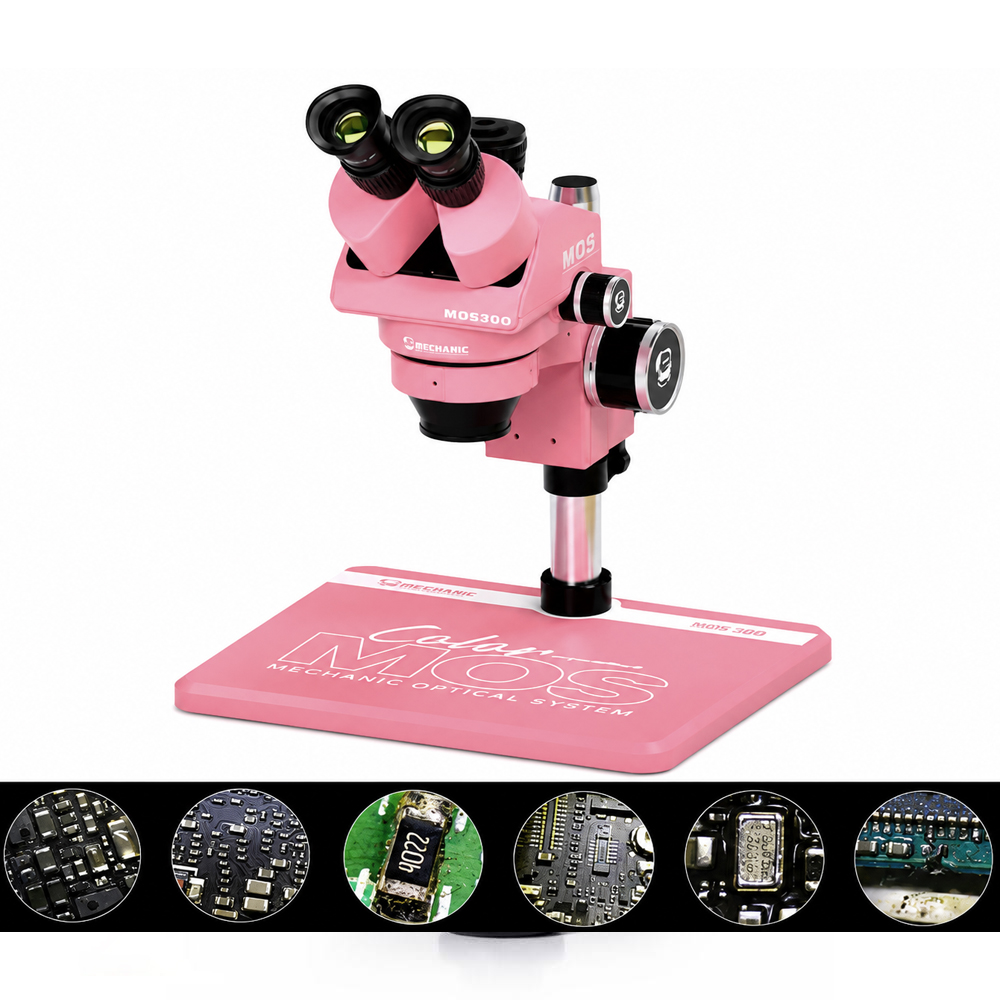

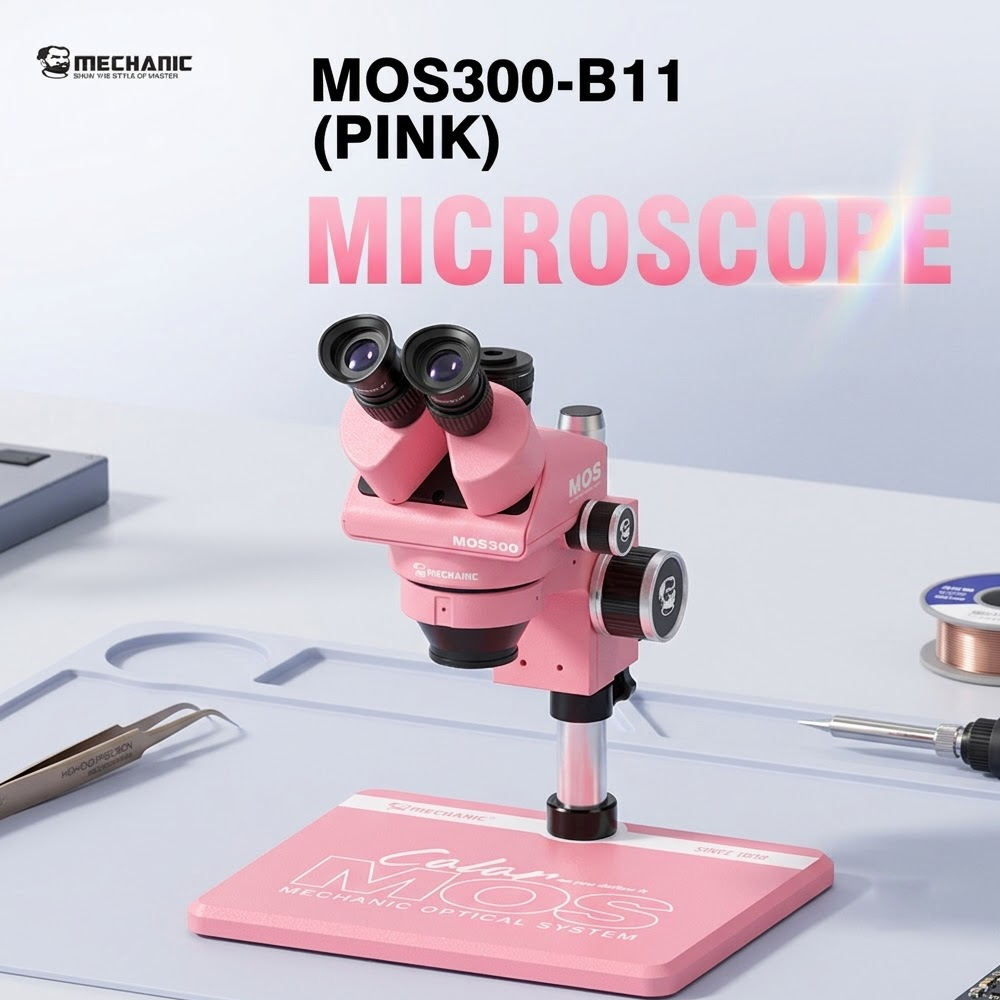

Mechanic Mos300-B11 Microscope Pink

Best Microscope for Mobile Repairing

A microscope for mobile repairing is a specialized optical instrument designed to magnify tiny components on mobile phone circuit boards, such as microchips and solder joints. It enables technicians to perform precise tasks like soldering, inspection, and diagnostics, ensuring accurate repairs and enhanced device performance.

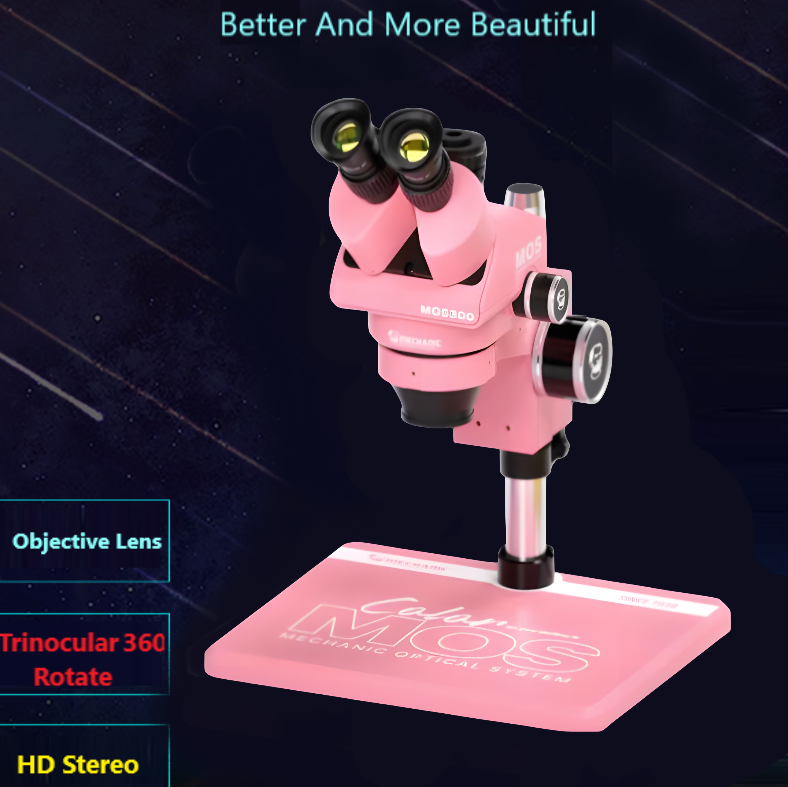

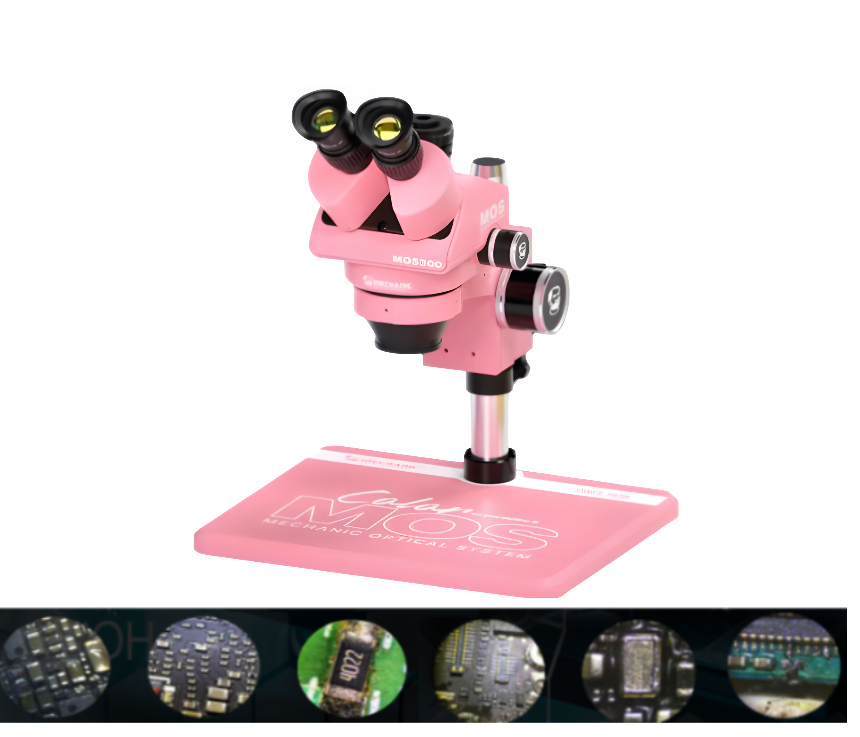

MECHANIC MOS300 Trinocular 360° Rotate HD Stereo Microscope

Mechanic Trinocular Stereo Microscope Binocular Stereo High Power Zoom Stereo Microscope For Motherboard Micro Welding Repair

Features: Best Microscope for Mobile Repairing

• The High-definition Optical Objective Lens, Precision Process Manufacturing, High-definition Coated Objective Lens
• Pure Copper Material Lens Barrel, No Glare, Clear Picture, Do Not Miss Every Small Detail
• WF1OX/22 Eyepiece, Binocular Diopter Can Be Adjusted ±5DP, Making Binocular Observation Easier
• With The High Field Of View Wide-angle Eyepiece, Standard WF10X/22MM, It Is Still Convenient To Wear Glasses For Observation.
• 0.6-4.5X Continuous Zoom, Optical System, Large Magnification Continuous Zoom, Sharp Imaging, No Distortion, Very High Definition, Can Correctly Focus On Samples With Large Uneven Surfaces To Obtain A Three-dimensional Image.
• The Focusing Gear Rack Is Made Of Metal Material, Which Is Durable And Accurate With Magnification, Making The Image Clearer
• CTV2/5 Adapter, Clearer Image Than Ordinary TV Interface, Wider Field Of View, No Vignetting

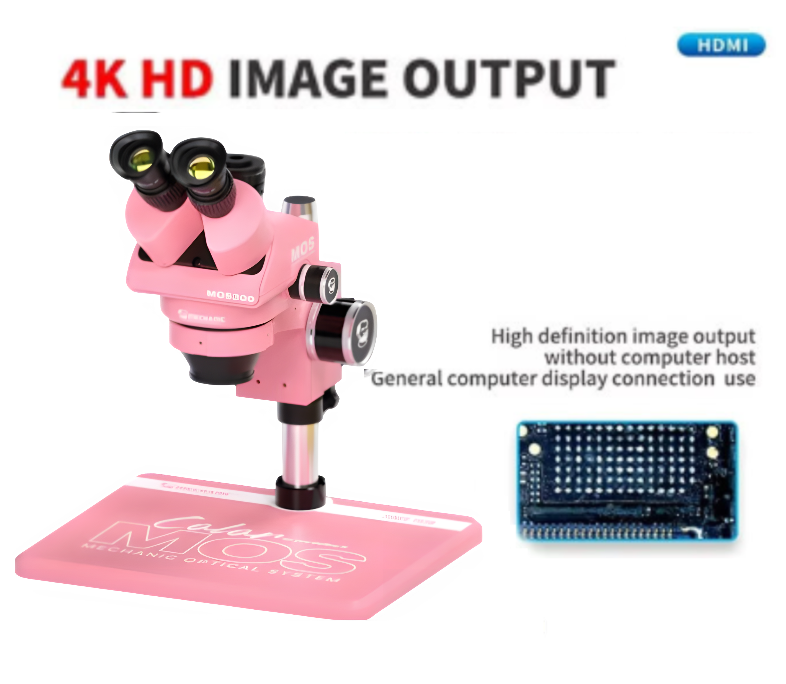

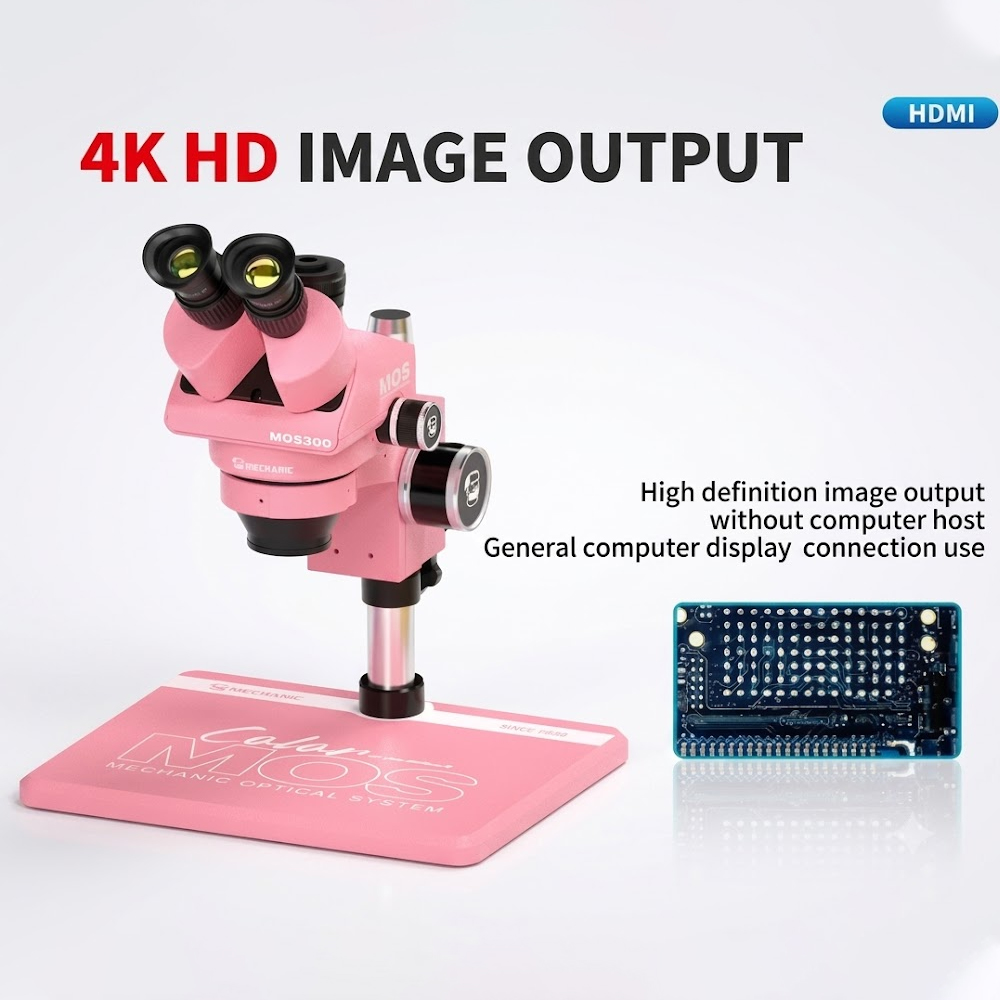

• True Trinocular High-definition Display, Matched With 4K High-definition Camera Display, Eye-clearing Observation Is Synchronized With The Screen Display Content, High-definition Large Screen Without Smear (only The Package Includes The High-definition Camera, The Bare Metal Does Not Include The High-definition Camera)
• The Mirror Body Can Be Adjusted Freely, And The Microscope Body Can Be Adjusted 360°, Freeing Up The Workbench And Not Affecting Other Operations.

Specification: MOS300-B11 PINK

• Observation Head: 45decline, 360rotate, Pupil Distance 54—76mm; Bilateral Visual Adjustment ±5
• Adjustable Eyepiece: Standard: WF10X22, High Angle Wide-angle Eyepiece Provides Convenience For Observers Wearing Glasses
• Optional Eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm
• Objective: 0.6X—4.5X Zoom Range,objective Magnification Ratio 1:10,
• Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For Option
• Magnification:  Standard:6X–45X, Optional And Auxiliary Lenses Can Be Extended To 1.8X—90X Ontinuous Doubling
• Working Distance: 100mm
• Focus Arm: 76mm Diameter, 32mm Pole Size
• Plate: Black/White Plate
• Base: B11 Column Type Large Plate Base, Another Base Can Be Selected

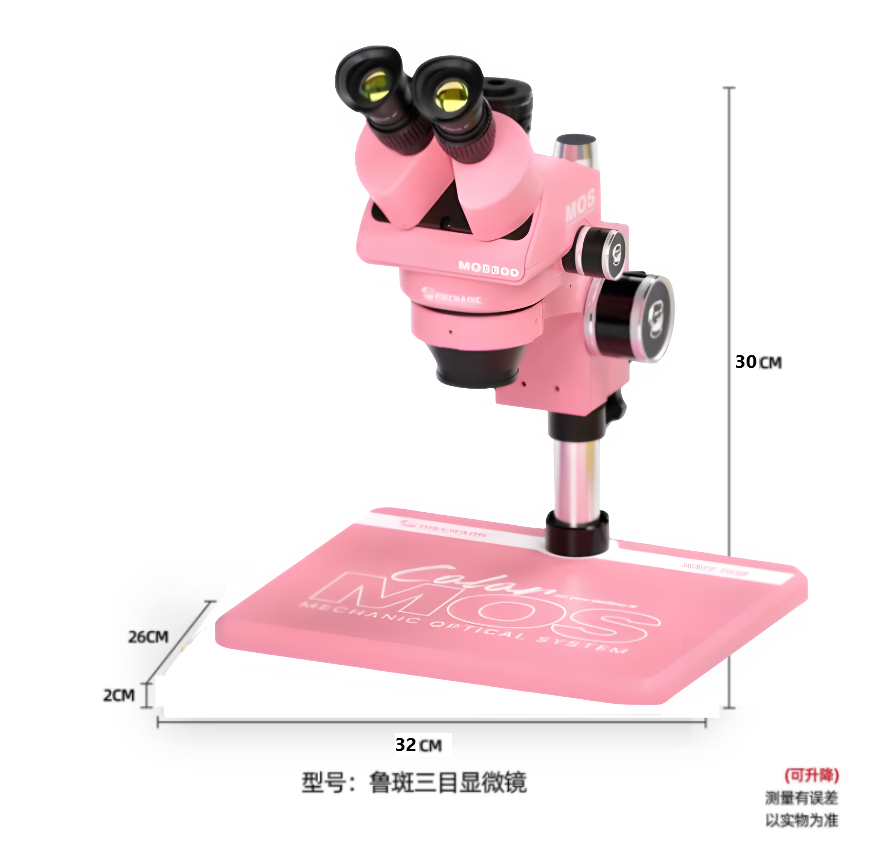

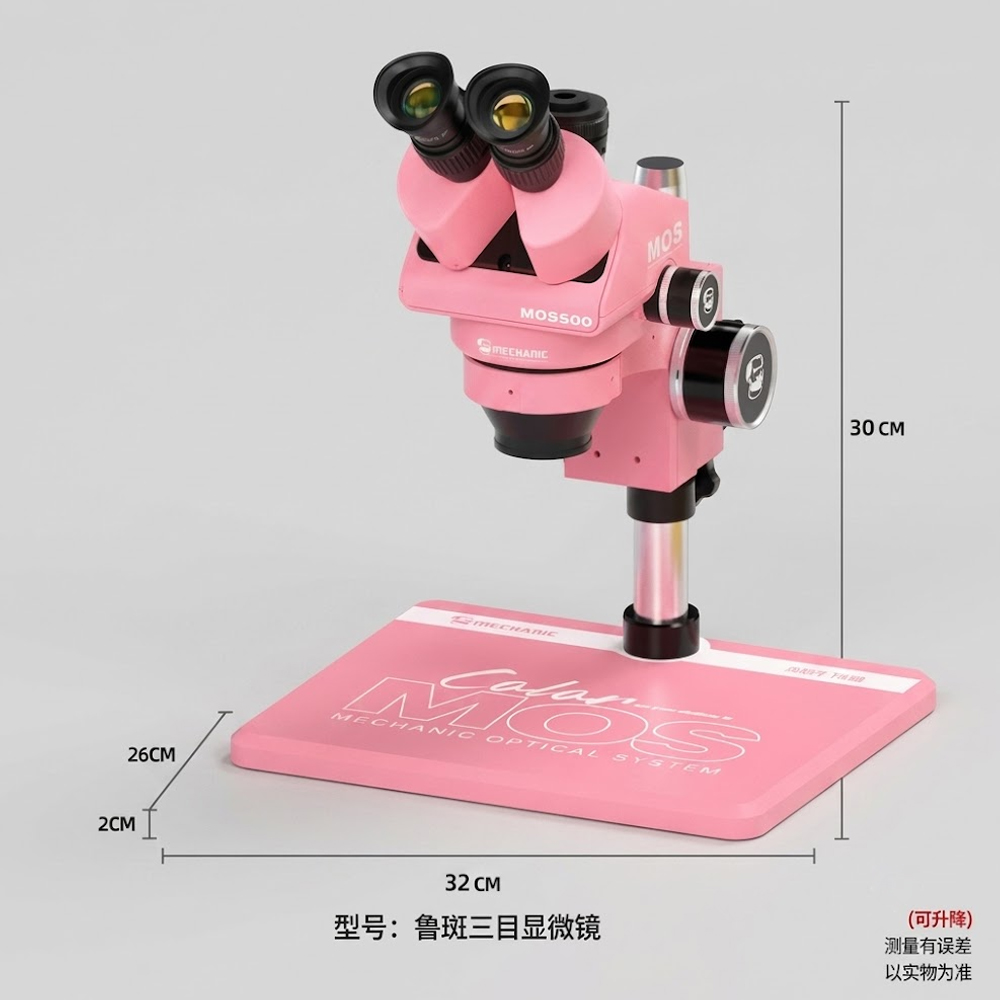

• Outward Size: 200mm(W)*273mm(D)*280mm(H)
• Illumination: Optional LED Illumination, See LED Light Source Series Diagram For Details

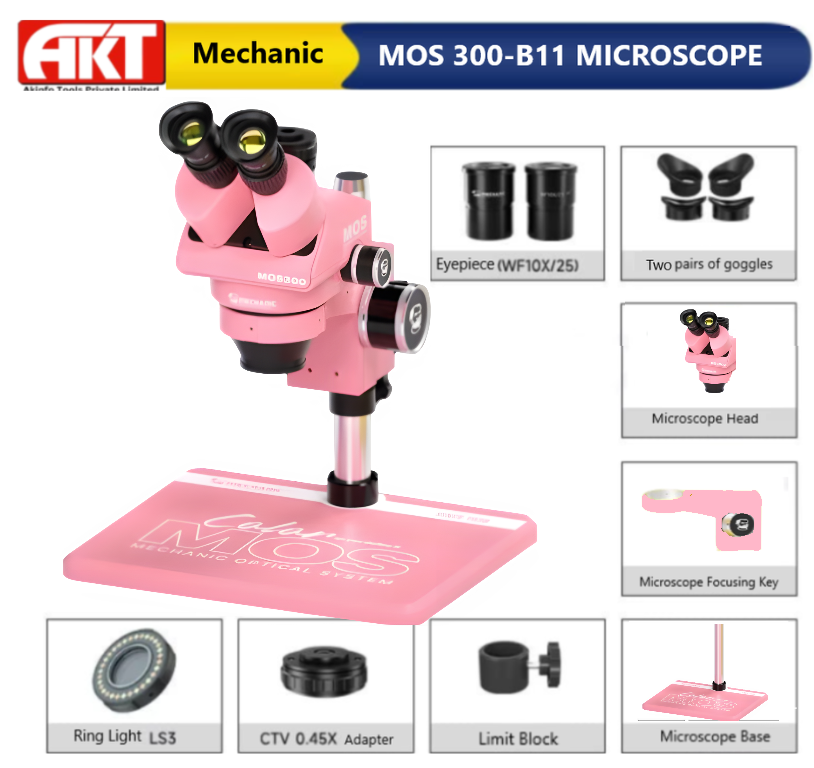

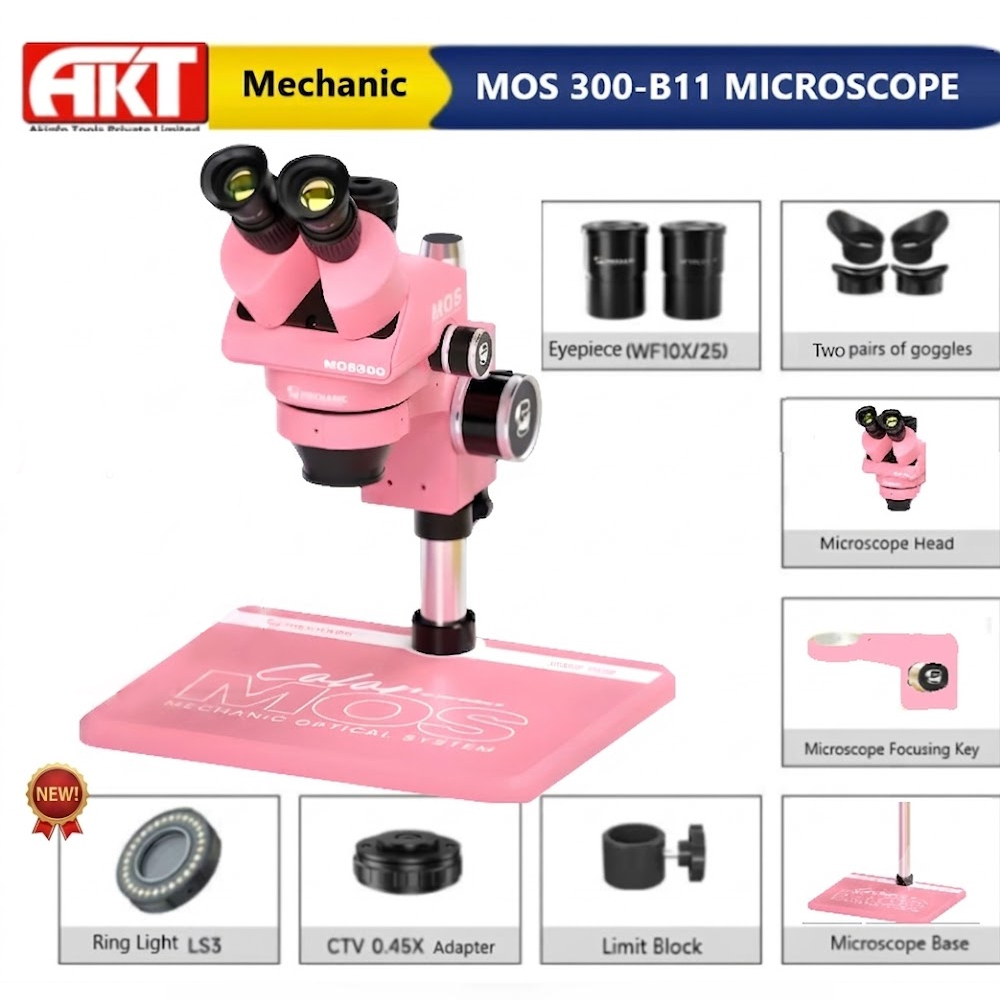

Packing Details :-

• 1 Rod
• 1 B11 Base
• 1 CTV lens
• 1 Ring Light
• 1 MOS300 Head
• 1 Limits Block
• 1 0.5x Objective Lance
• 1 Extra protective Lance
• 2 Eyepiece Lenses WF/10X/25
• 1 Microscope Dust Protective Cover
• 1 Pair (MOS028)Horn-Shaped Eye Mask
• 1 Pair (MOS038)Slant Horn-Shaped Eye Mask
