MECHANIC SUPER XS-B3 6.7X-45X TRINOCULAR STEREO MICROSCOPE

MECHANIC SUPER XS-B3 6.7X-45X TRINOCULAR STEREO MICROSCOPE – Full Description

The Mechanic Super XS-B3 Trinocular Stereo Microscope is a professional-grade optical inspection tool designed specifically for mobile phone repair, PCB soldering, watch servicing, jewelry work, and precision electronics. With a wide continuous zoom range and camera support, this microscope delivers crystal-clear 3D imaging for high-accuracy micro-level work.

Professional Optical Performance

The microscope features a 6.7X–45X continuous zoom system, allowing technicians to smoothly adjust magnification for both wide-area inspection and ultra-fine component work. The high-definition optical lenses provide sharp, distortion-free images with excellent depth perception, making it ideal for BGA, SMD, and motherboard repair tasks.
Its trinocular design enables simultaneous viewing and camera attachment for recording, live streaming, or teaching purposes.

Ergonomic & Flexible Viewing

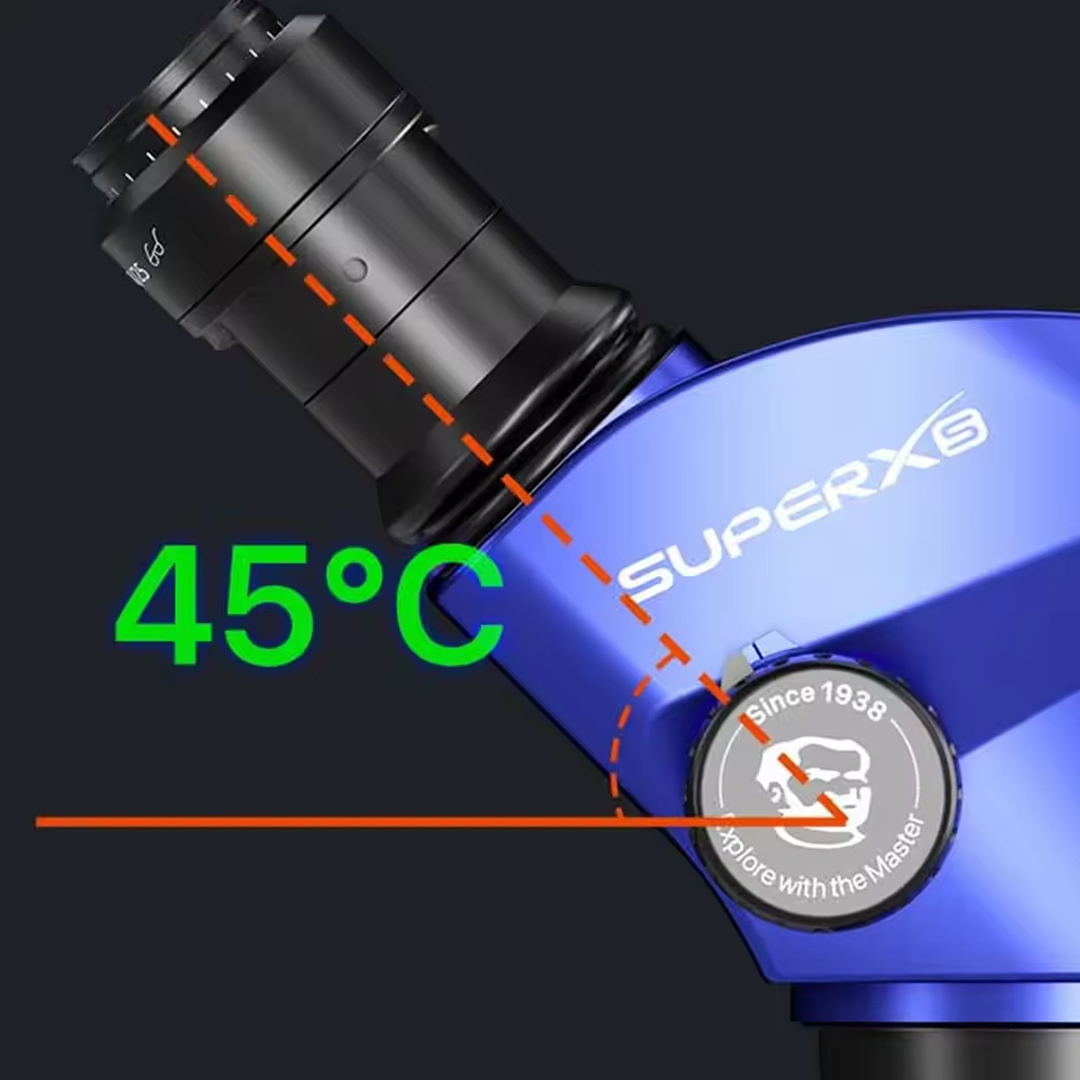

Built for long working hours, the trinocular head tilts at 45° and rotates 360°, ensuring comfortable viewing from any angle. The adjustable interpupillary distance (52–76mm) allows precise alignment for different users, while the large flat-field eyepieces provide a wide, comfortable viewing area—even for users wearing glasses.

Shadow-Free LED Illumination

The included adjustable LED ring light delivers bright, even illumination without shadows, ensuring clear visibility of tiny components and solder joints. Brightness control allows perfect lighting for delicate or reflective surfaces.

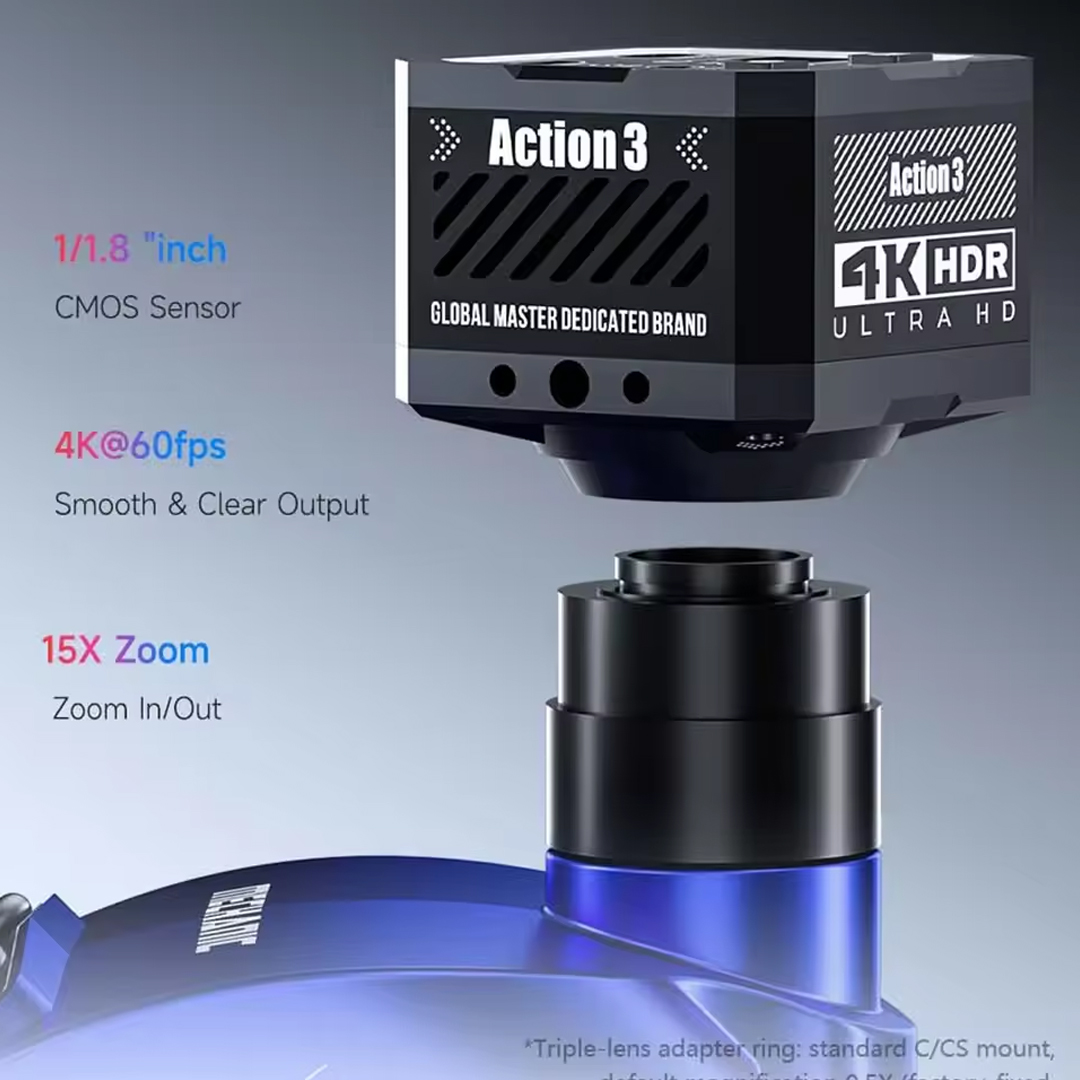

Camera Ready Trinocular Port

The built-in C-mount camera interface allows easy connection to HDMI or USB microscope cameras for:

• Live display on monitor
• Video recording & image capture
• Training, quality inspection, and documentation

This makes it ideal for repair labs, training centers, and professional workshops.

Designed for Precision Work

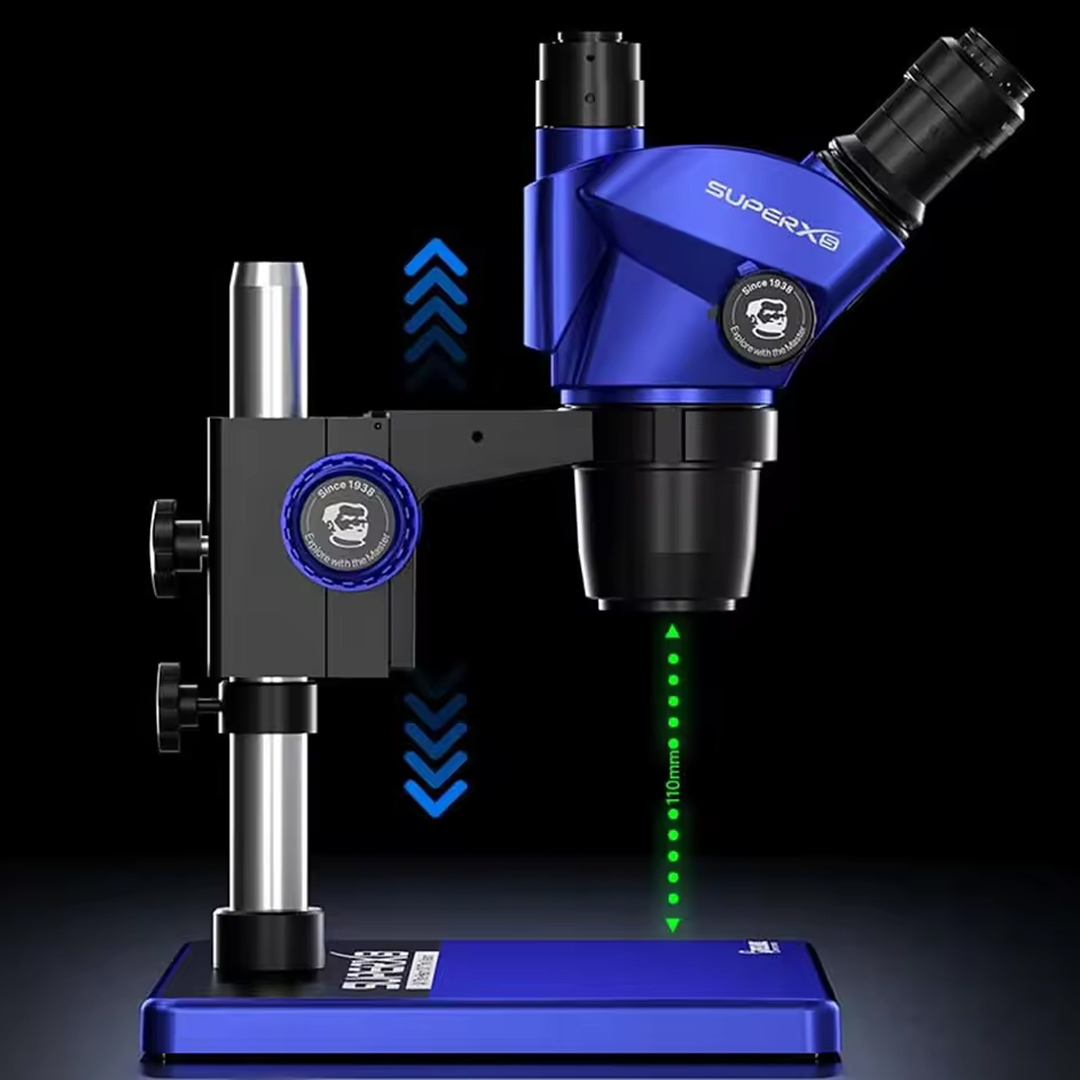

With a 110mm working distance, the microscope provides ample space for tools, soldering irons, and hot-air guns, enabling efficient repair work without obstruction. Multiple optional auxiliary lenses can expand working distance and magnification when required.

Key Specifications

• Magnification Range: 6.7X – 45X continuous zoom

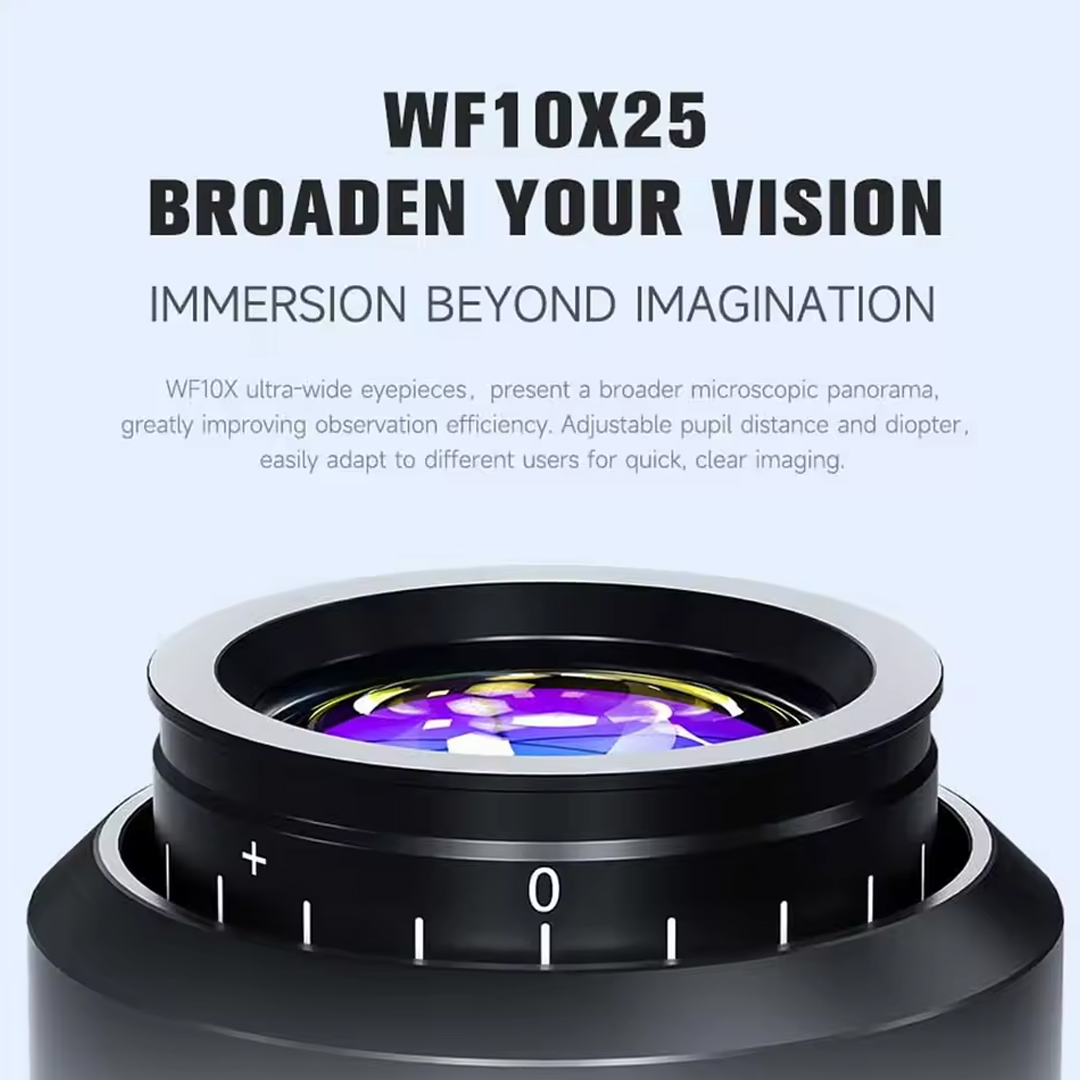

• Eyepiece: Wide-field 10X high eye-point
• Head: 45° inclined, 360° rotatable trinocular head
• Interpupillary Distance: 52–76mm adjustable
• Working Distance: 110mm (expandable with auxiliary lenses)
• Camera Port: Standard C-mount
• Illumination: Adjustable LED ring light
• Base: Heavy B-series stable column base

Ideal Applications

• Mobile phone & laptop motherboard repair
• Micro soldering (BGA/SMD)
• Watch & jewelry repair
• Laboratory & academic observation
• PCB inspection and quality control
