MECHANIC SE7045-B11 ROBOT SMART EYE MICROSCOPE

The Mechanic SE7045-B11 Robot Smart Eye Microscope is a high-end, human-machine integrated stereo zoom microscope designed for the precision demands of modern electronics repair. Featuring an innovative "Smart Eye" head and a foldable, rotatable design, it provides unmatched ergonomic flexibility for long-duration tasks like BGA chip welding and motherboard diagnostics.

Below is the exhaustive technical product description and specification breakdown in a tabular format.

Product Overview: Mechanic SE7045-B11 Robot Smart Eye

Key Technical Innovations

1. Smart Eye Ergonomic Head

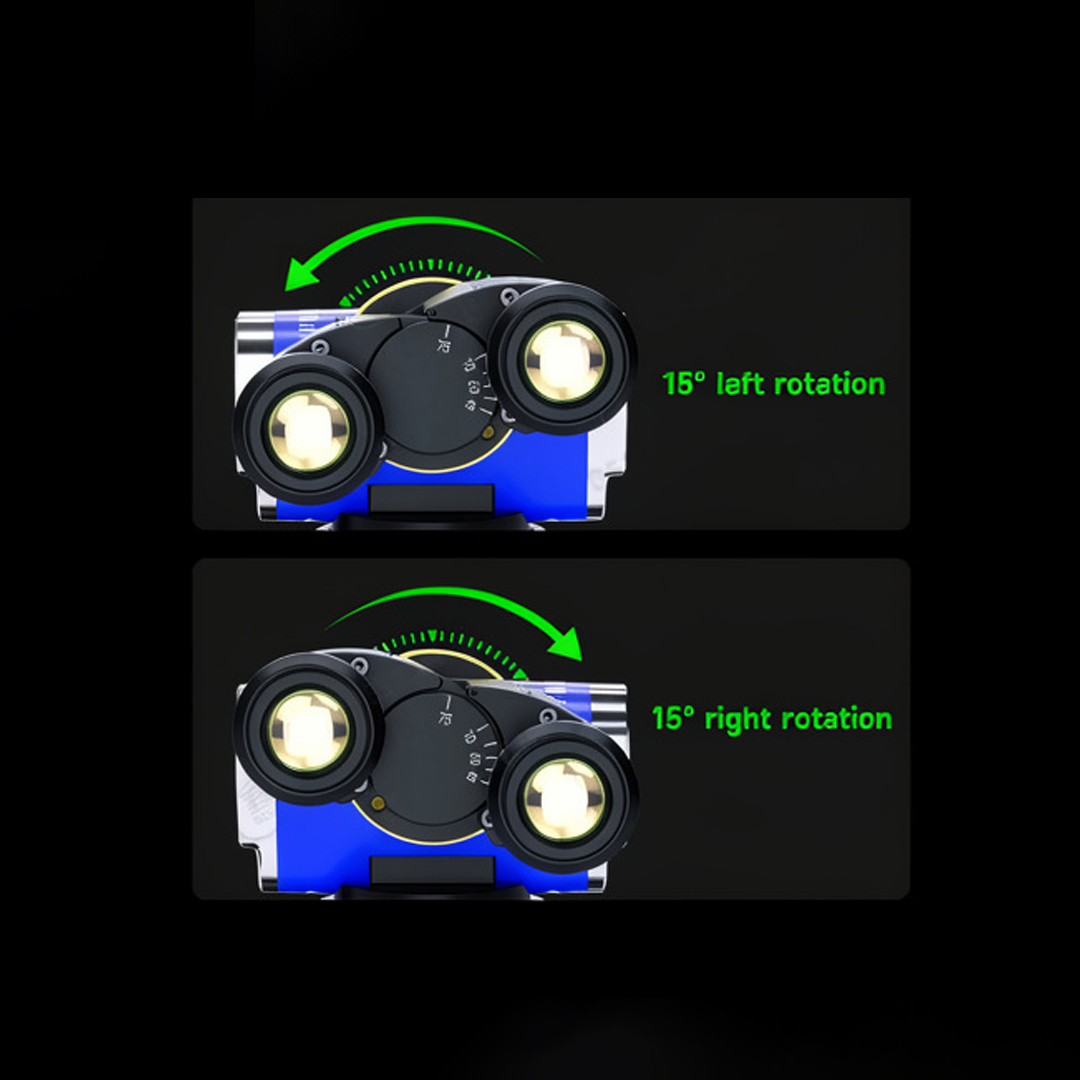

Unlike traditional fixed-head microscopes, the Smart Eye design supports a 15° left/right swivel and a 50° vertical fold. This allows technicians to adjust the viewing angle to their natural posture without moving the PCB sample, significantly reducing neck and shoulder fatigue during intricate micro-soldering sessions.

2. Real-Time Magnification Feedback

The SE7045 features an intelligent digital display system on the upper right corner of the field of view. It provides real-time zoom feedback, showing the exact total magnification (e.g., 15X, 30X) without requiring the user to look down at the zoom handwheel.

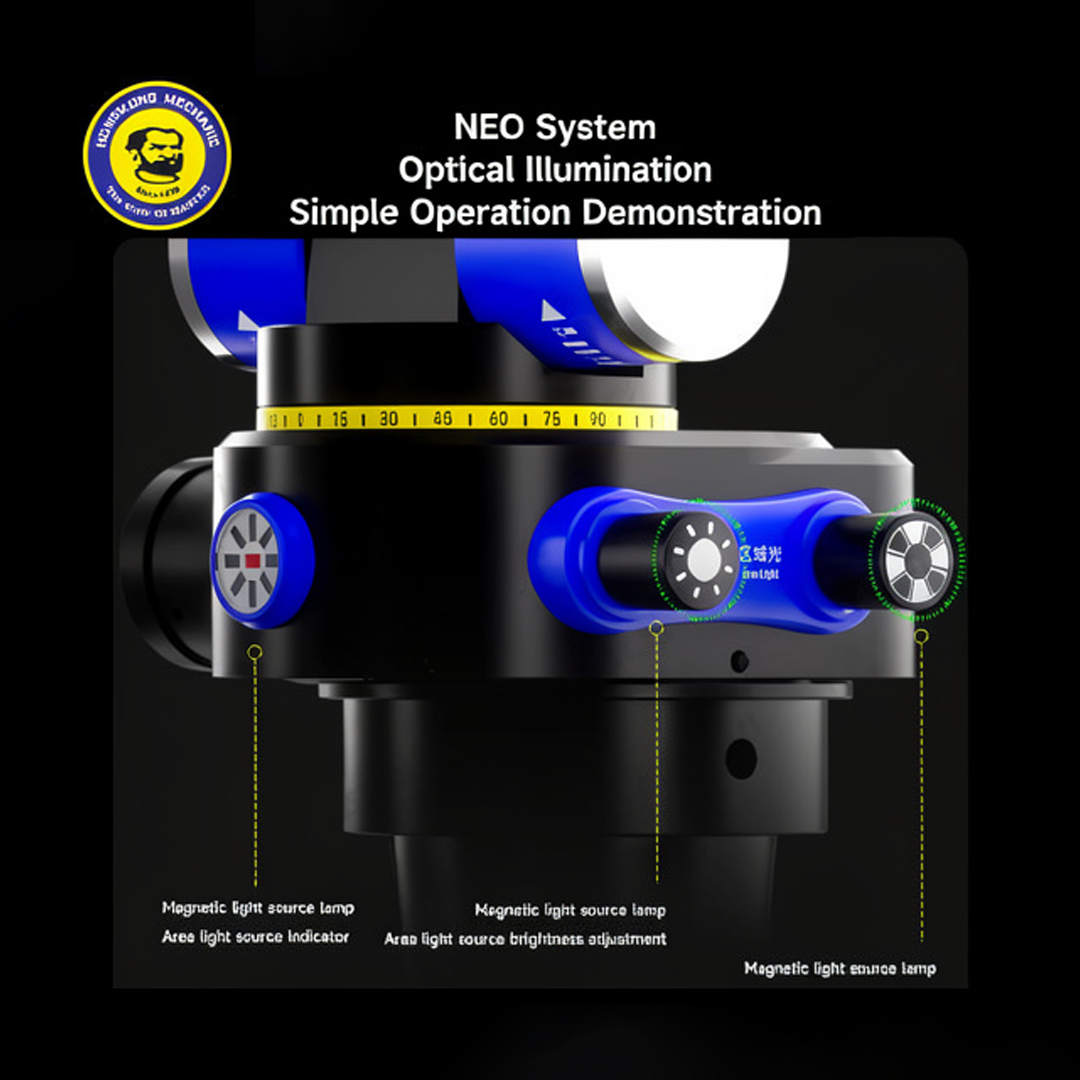

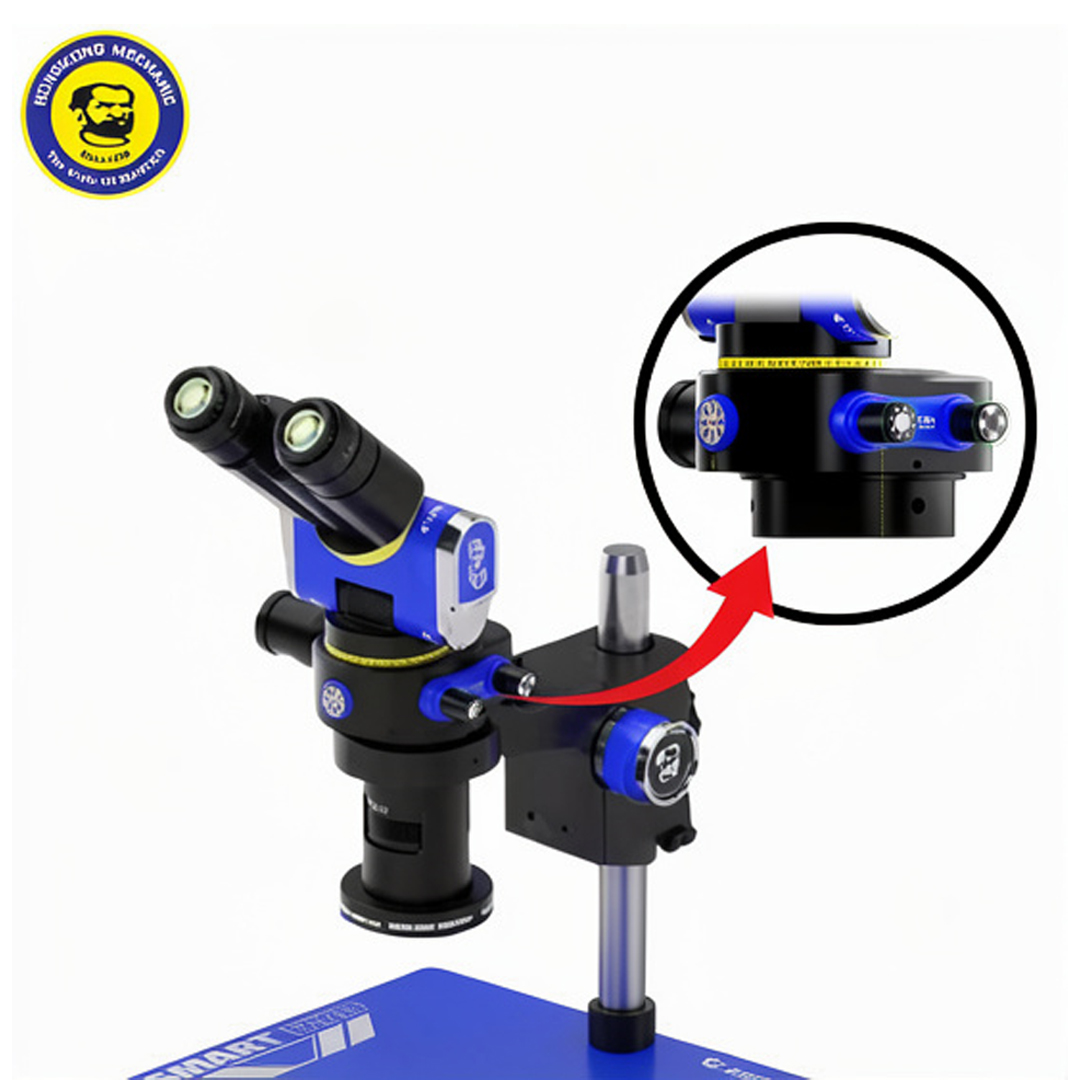

3. Magnetic NEO LED System

The included ring light utilizes a "one-put and one-suck" magnetic attraction mechanism. This eliminates the need for thumb screws that can damage the objective lens housing. The light features 144-zone brightness control with an automatic memory function to save your preferred lighting levels.

4. Flat-Field Distortion-Free Optics

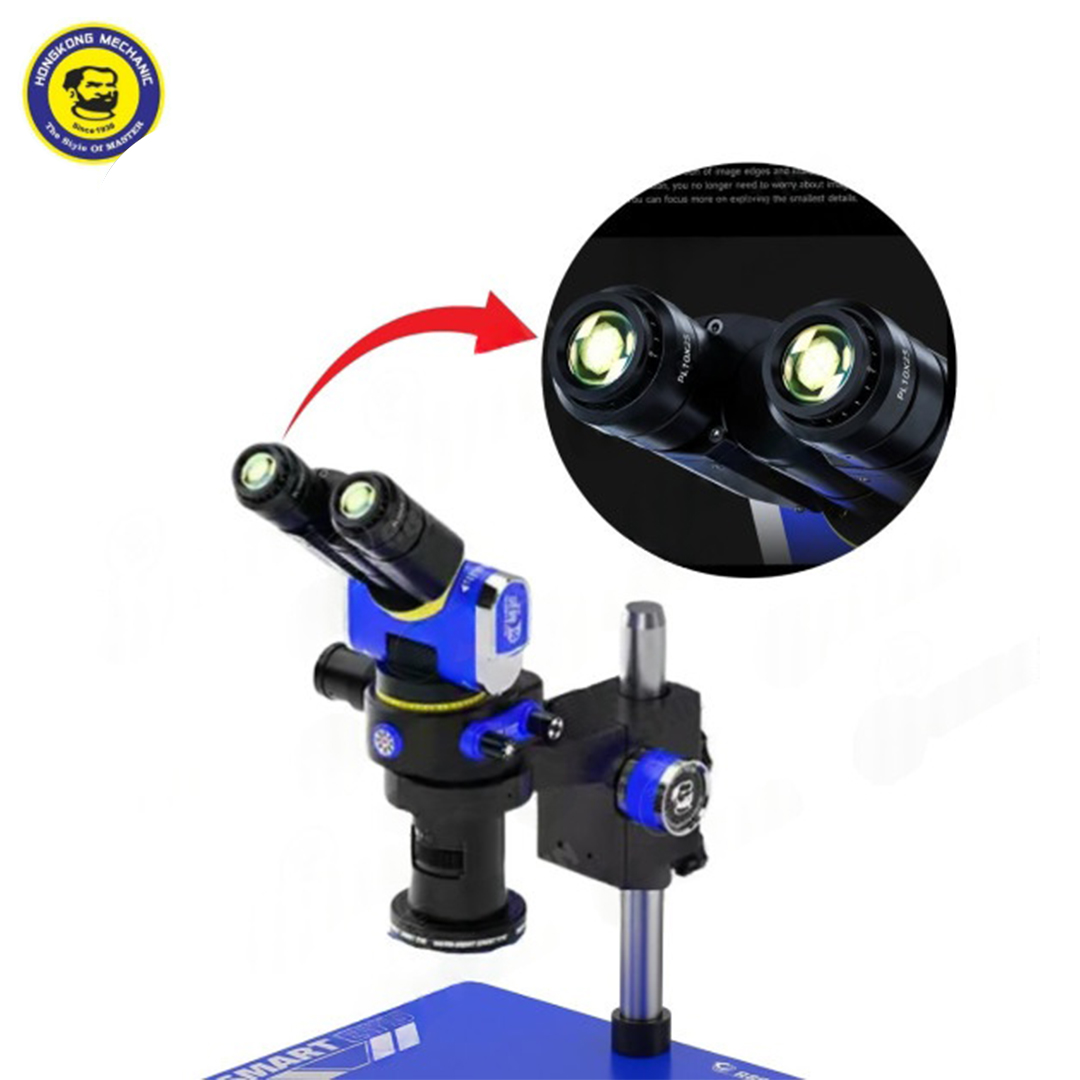

Equipped with PL10X/25mm eyepieces, the system effectively reduces edge distortion common in standard stereo microscopes. This "Flat Field" design ensures that the image remains sharp and regular from the center to the very edge of the field of view, which is vital for inspecting large PCB traces.

Comparison: Robot Smart Eye vs. Traditional Trinocular
