MECHANIC 900M-T-K BW SERIES IRON BIT

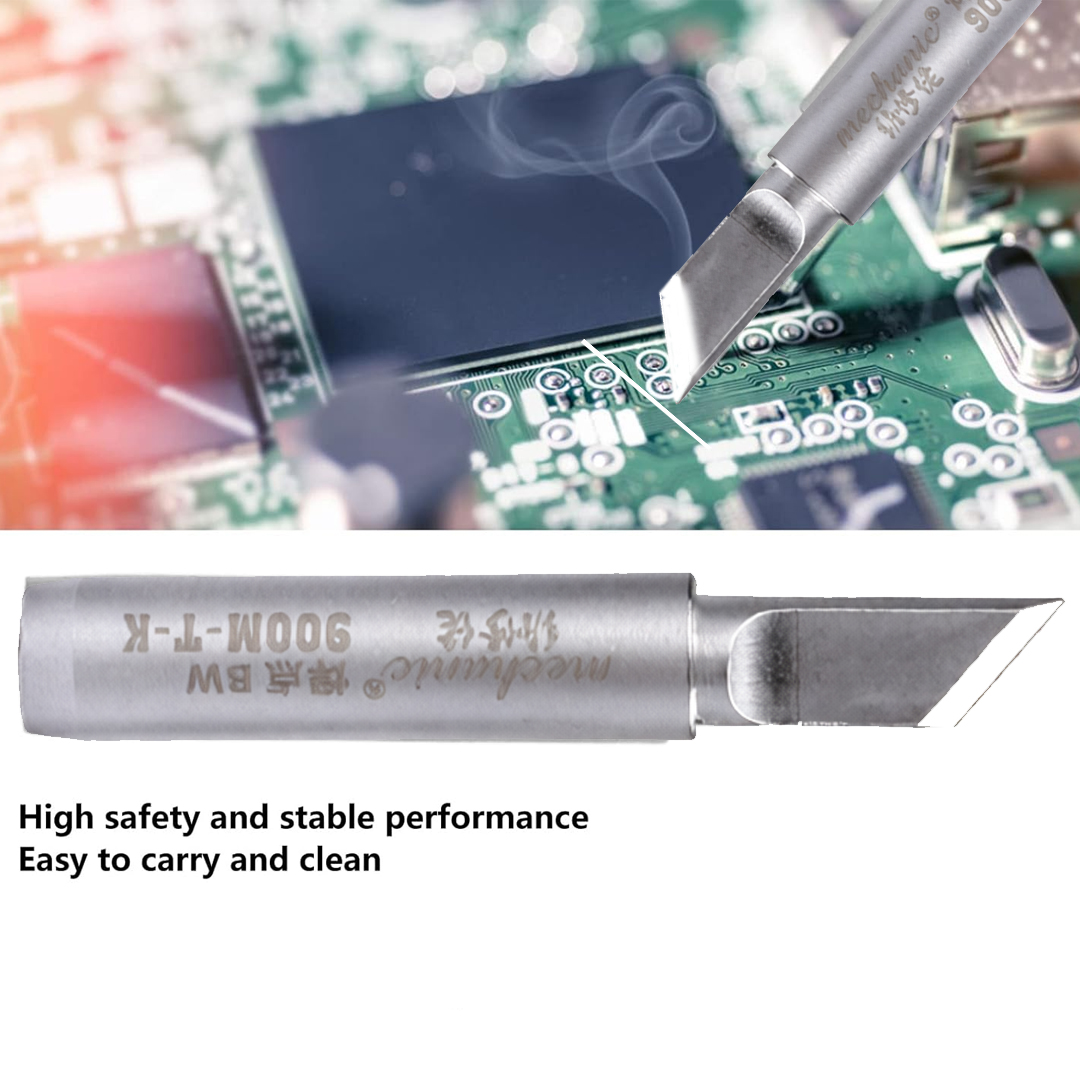

The Mechanic 900M-T-K (BW Series) is a high-performance soldering iron tip designed for precision electronics repair. Known for its "K-type" (knife-edge) geometry and "Black Diamond" (BW) coating, it is a staple for technicians performing microsoldering, SMD rework, and bridge clearing.
Product Overview: Mechanic 900M-T-K BW Series
| Feature | Details |
| Brand | Mechanic |
| Series | BW (Black Diamond / Professional Grade) |
| Model | 900M-T-K |
| Tip Shape | K-Type (Knife Shape) |
| Material | High-grade Oxygen-free Copper (Core) + Multilayer Plating |
| Coating | Anti-corrosion, high-temperature resistant "Black" coating |
| Compatibility | Fits 936, 937, 938, 969 stations (900M Series handles) |
| Application | SMD Rework, Bridge Removal, Drag Soldering, Logic Board Repair |

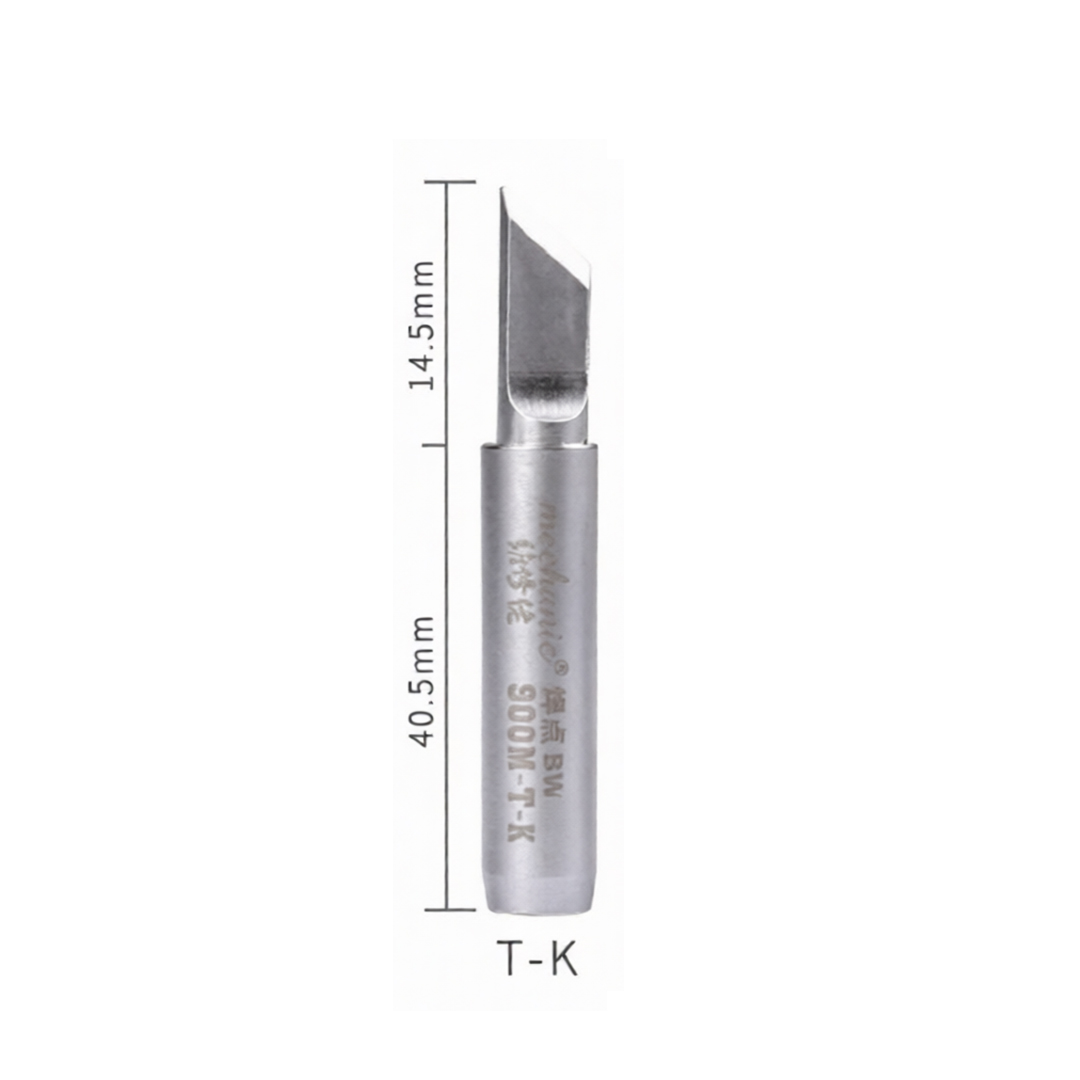

Technical Specifications
| Parameter | Specification |
| Inner Diameter | $\approx 4.0\text{ mm}$ |
| Outer Diameter | $\approx 6.5\text{ mm}$ |
| Total Length | $\approx 43\text{ mm}$ |
| Knife Edge Length | $\approx 15\text{ mm}$ |
| Effective Temp Range | $200^\circ\text{C}$ to $480^\circ\text{C}$ |
| Heat Conductivity | High (Oxygen-free copper core) |
| Life Span | Up to 30,000 solder joints (with proper maintenance) |
Maintenance & Usage Tips
Pro Tip: To maximize the life of your BW series tip, avoid using high-acidity flux and never file the tip. Filing removes the protective plating and destroys the thermal properties instantly.
-
Initial Tinning: When heating the tip for the first time, apply solder immediately as it reaches melting temperature to prevent "instant oxidation."
-
Temperature Control: Ideally, operate between $350^\circ\text{C}$ and $380^\circ\text{C}$. Continuous use at $450^\circ\text{C}+$ will accelerate the degradation of the black coating.
-
Cleaning: Use brass wool or a damp (not soaking) cellulose sponge.
-
Storage: Always leave a generous "blob" of solder on the tip before turning off the station to create an airtight seal against oxygen.
| Weight |
0.05 |
|---|
