MECHANIC C125-SK SOLDERING IRON TIP FOR C210
MECHANIC C125-SK Precision Soldering Iron Tip (C210 Series)
The MECHANIC C125-SK is a premium, high-precision soldering tip specifically designed for the C210 series soldering handles. Featuring a specialized SK (Small Knife) geometry, this tip is the gold standard for technicians performing chip-level repairs, micro-soldering, and complex bridge clearing on smartphone motherboards (iPhone/Android). It is engineered to provide near-instant thermal recovery and exceptional durability under high-temperature lead-free soldering conditions.

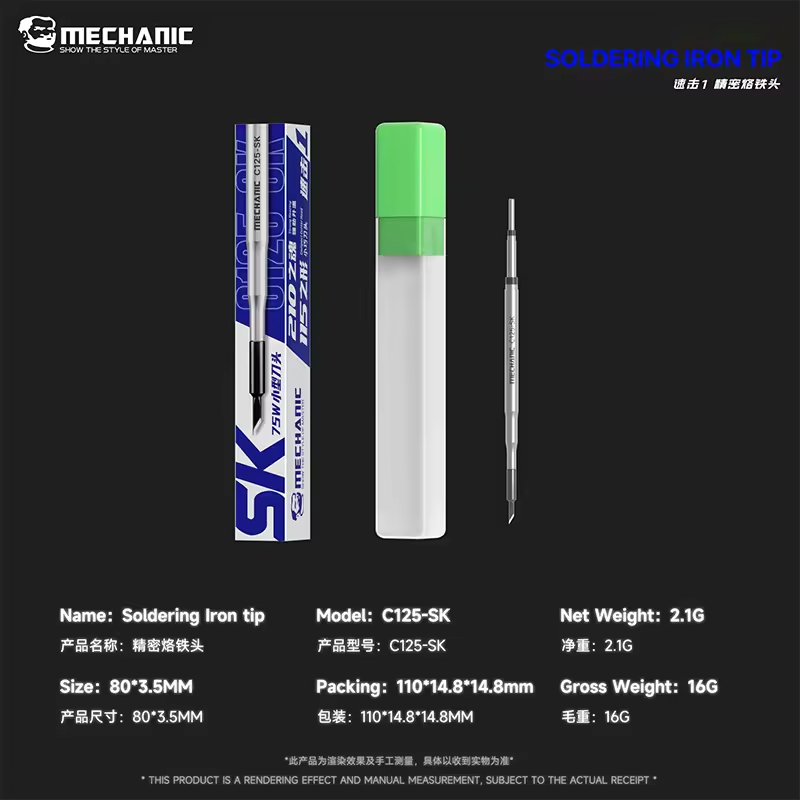

Product Specifications & Technical Parameters
| Specification | Detail |
| Model Number | MECHANIC C125-SK |

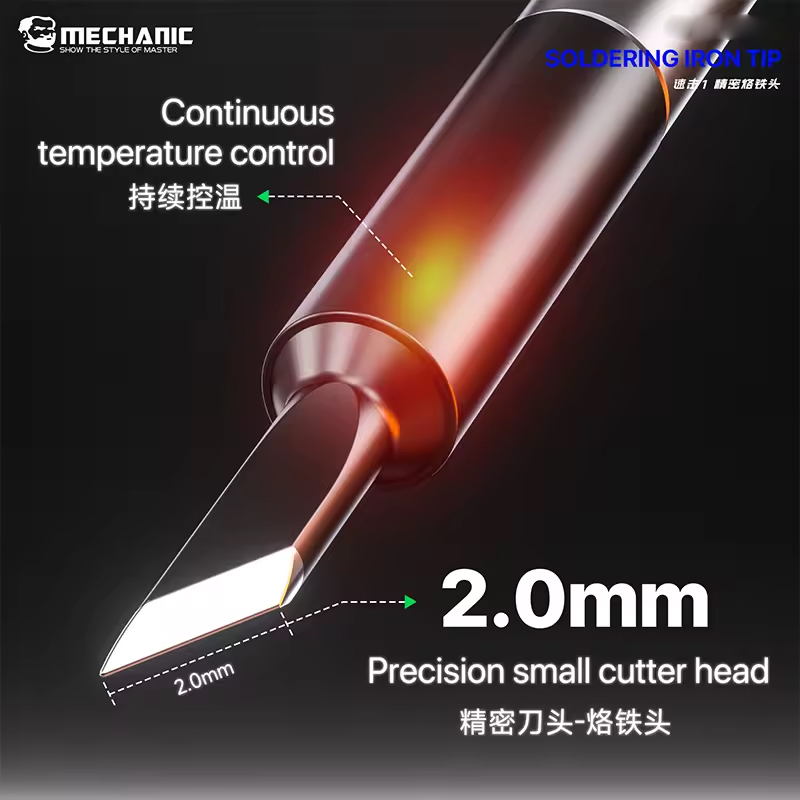

| Tip Shape | SK (Small Knife / Angled Blade) |
| Compatibility | All C210 Series Handles (JBC, Mechanic, Sugon, Aixun) |
| Core Material | High-Purity Oxygen-Free Copper |
| Plating Layers | Iron, Nickel, and Chromium Multi-Layer Nano-Plating |
| Thermal Recovery | < 2 Seconds to Operating Temperature |
| Temperature Range | 0°C - 450°C (Optimized for 350°C - 380°C) |
| Total Length | ~80mm |
| Tip Size | Ultra-Fine Knife Edge (Micro-precision) |
| Environmental | Lead-Free (RoHS Compliant) |

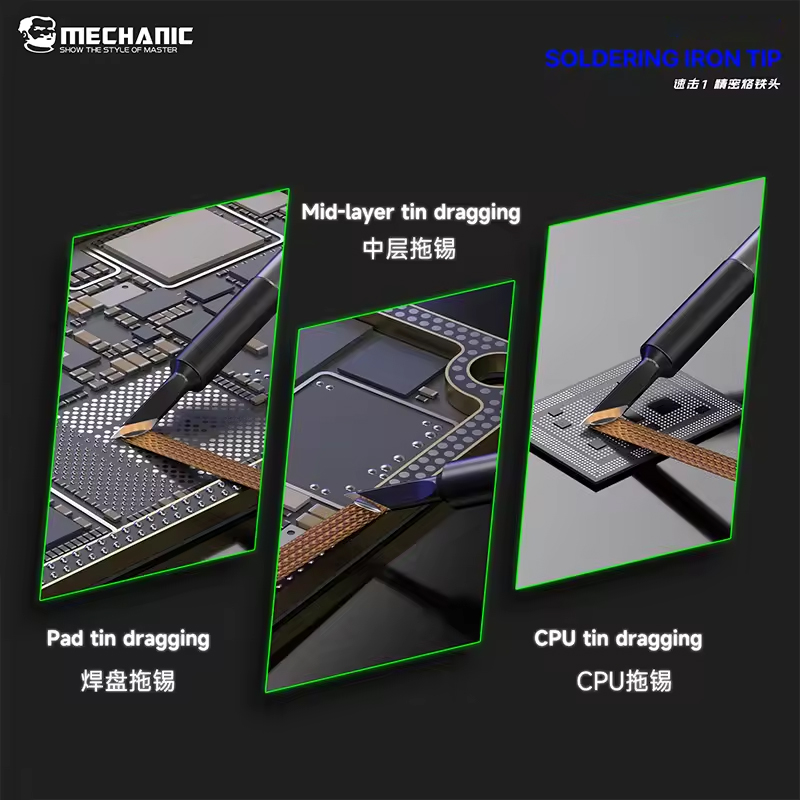

Primary Application Use-Cases
| Repair Task | Benefit of C125-SK |
| IC Chip Desoldering | The knife edge fits perfectly under chip corners to help clear underfill or solder. |
| Bridge Removal | The flat edge easily "wicks" away excess solder between closely spaced pins. |
| Pad Cleaning | Ideal for smoothing out pads on the motherboard after an IC has been removed. |
| Jump Wire Soldering | The sharp point of the knife tip can be used for precise 0.01mm wire placement. |
| Connector Repair | Perfectly sized for soldering FPC connectors and battery terminals. |
| Weight |
0.015 |
|---|
